Variotec V

Details

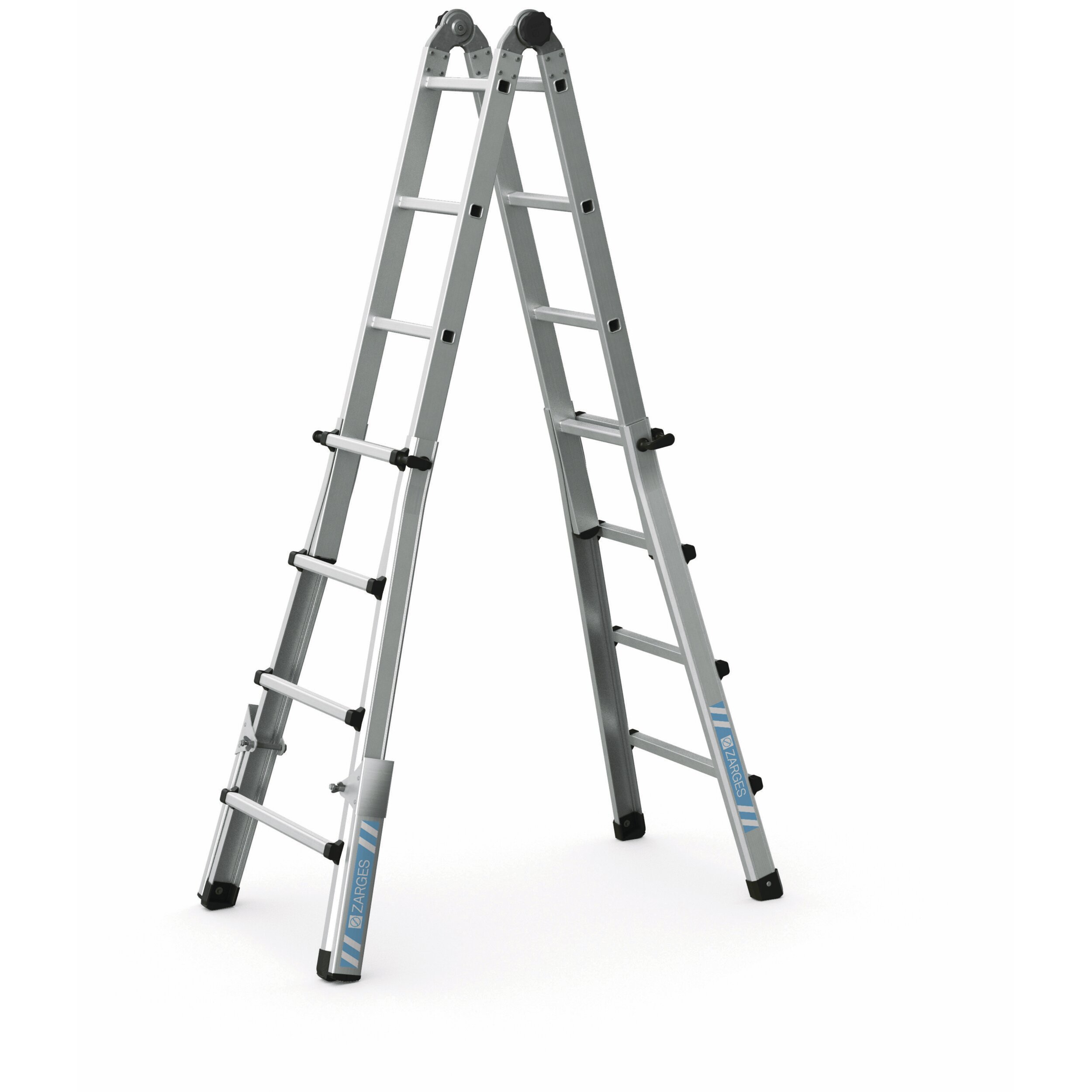

Multifunctional, extendible ladder suitable for use on stairs, with compact transport dimensions and in sturdy, durable design.

  • Required working height can be set in increments corresponding to the rung spacing.
  • Folds down to a space-saving compact size for transport.

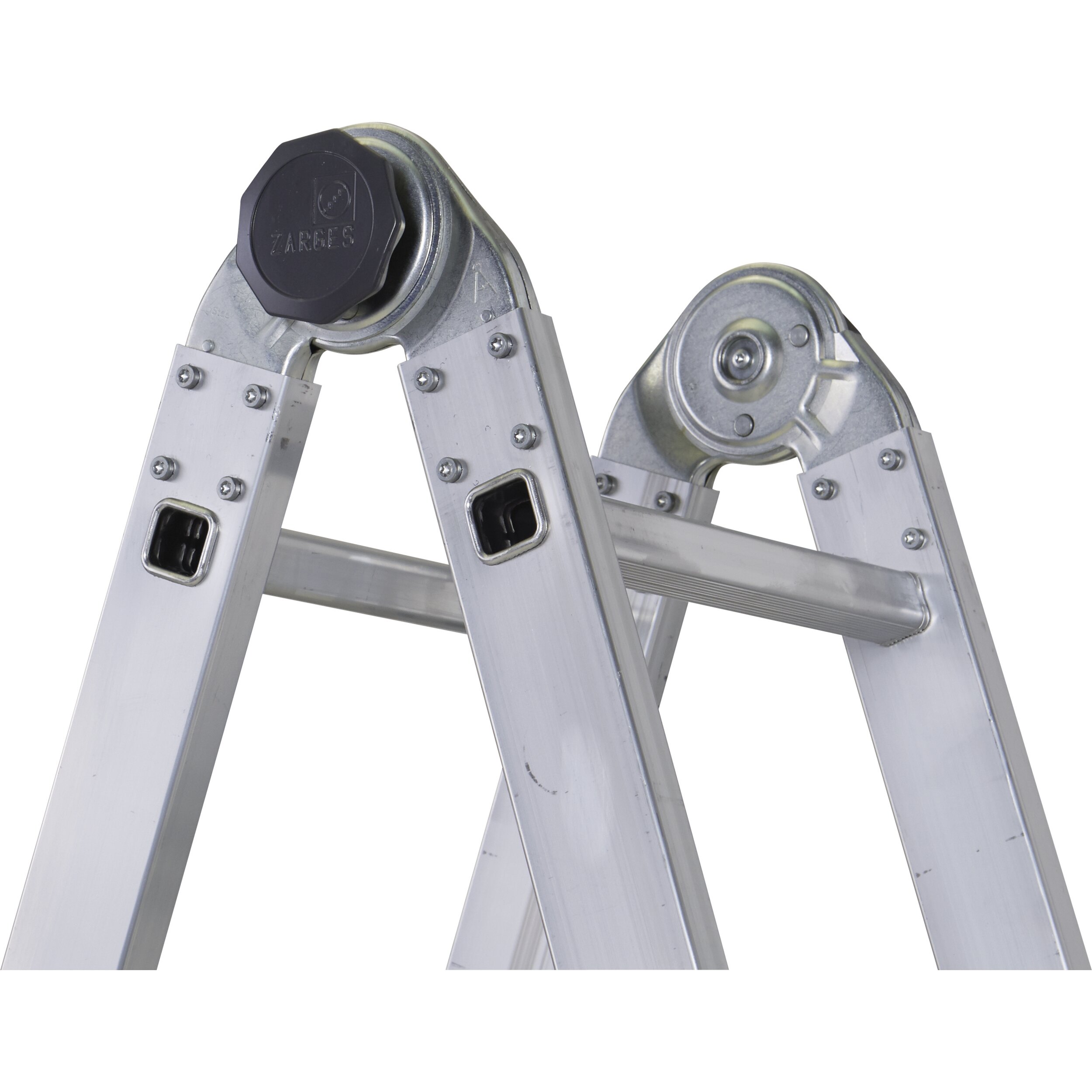

  • With automatic steel hinges, order no. 42396 with reinforced aluminium hinge.
  • Stiles made from extruded aluminium sections for maximum stability.
  • High strength, non-twist rung/stile connections.

Hints and special features

  • Ideal for use on steps/stairs as a result of rung-by-rung height adjustment on both sides.
  • Does not comply with EN131-1+2.

More Information

More Information
Pitch rung/tread 265 mm
Producttype Flanged telescopic multi-function ladder, 4-section
Type rung/tread serrated
Number ladderparts 4
Load max. 150 kg
Tread depth 30 mm
Connection Stile-Rung flanged
Coating natural
Material Aluminium

Variants

Order number Dimensions, folded Length Length as lean-to ladder Length as trestle Number of rungs Number of rungs Transport dimensions Weight Width Working height as lean-to ladder Working height as stepladder
42394 1,3 m × 0,56 m × 0,21 m 1.3 m 4.17 m 2.2 m 4 4 × 4 1.310 mm × 560 mm × 200 mm 13 kg 0.56 m 4.95 m 3.4 m
42395 1,58 m × 0,63 m × 0,21 m 1.58 m 5.29 m 2.7 m 5 4 × 5 1.580 mm × 630 mm × 200 mm 16 kg 0.63 m 6.05 m 3.9 m
42396 1,86 m × 0,7 m × 0,21 m 1.86 m 6.4 m 3.09 m 6 4 × 6 1.860 mm × 700 mm × 210 mm 20 kg 0.7 m 7.1 m 4.4 m
