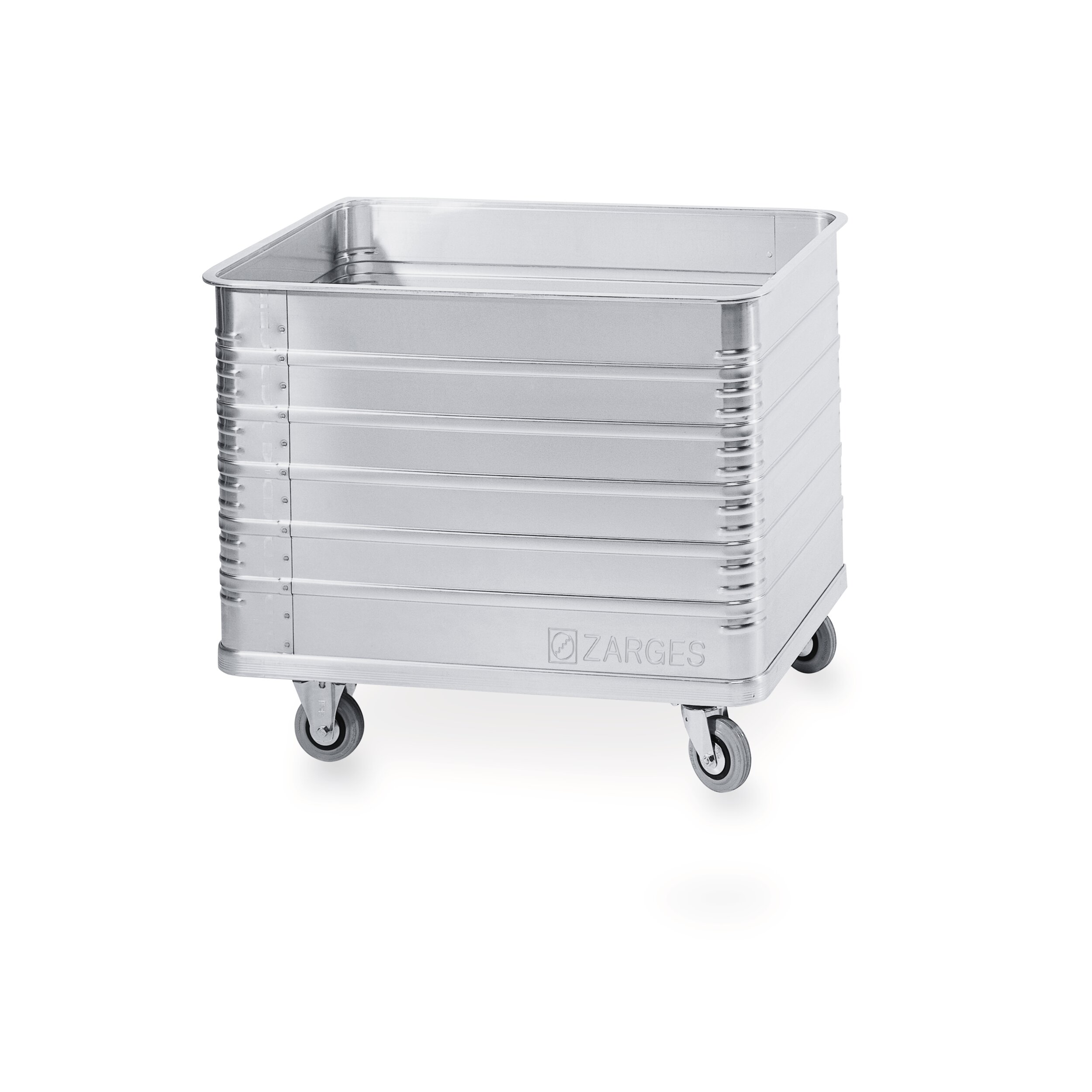

W 170 trolley

Details

The all-rounder: a sturdy box trolley for universal applications, for in-company logistics or for the transportation of waste.

  • Sturdy, generously dimensioned edge and base profile sections, high-strength positive locking ensures permanent bonding to jacket and base metal.
  • End and side walls reinforced with peripheral beading and corner beads.

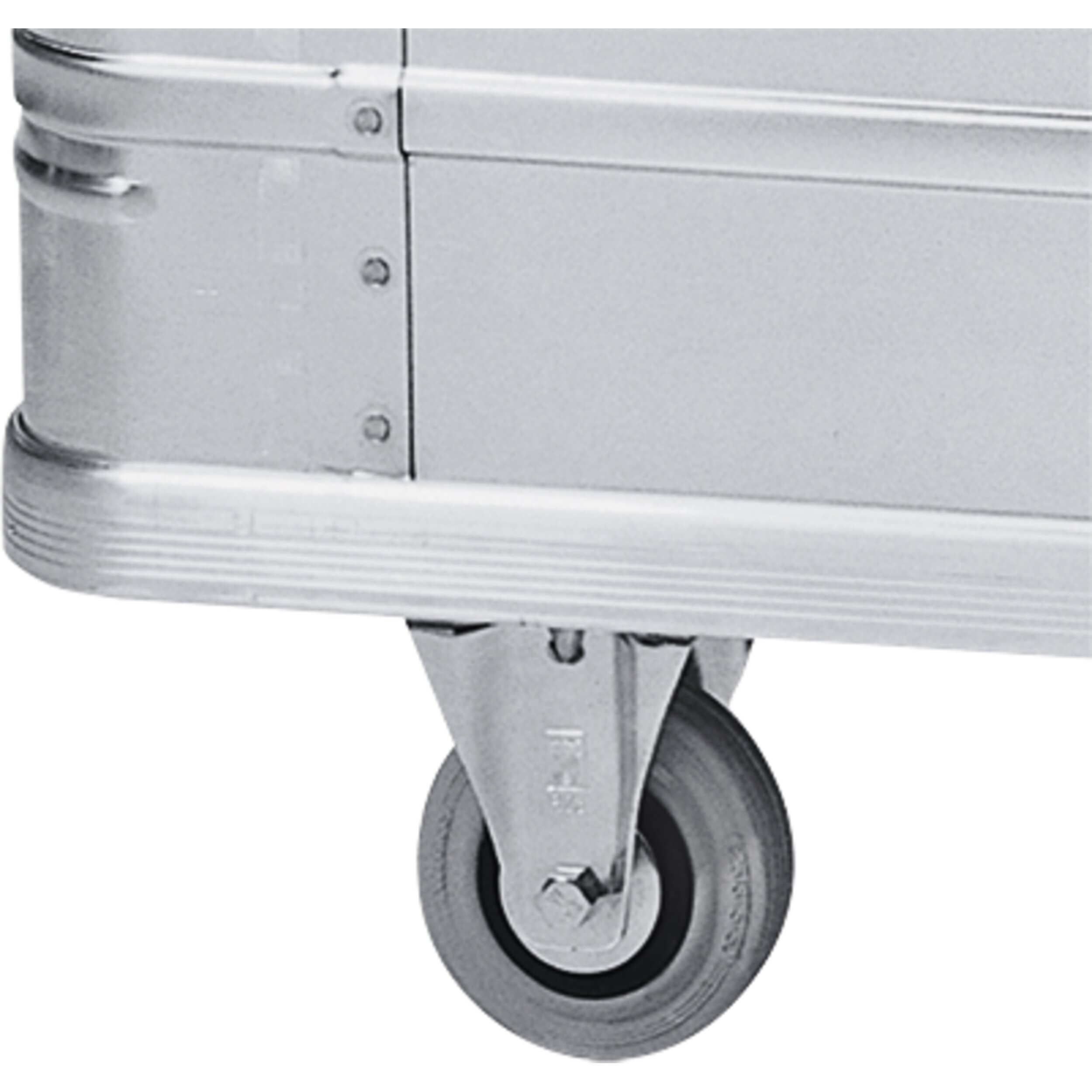

  • Running gear: 2 swivel and 2 fixed castors, corner-mounted, Ø 125 mm, 40 mm wide, easy running, rubber wheels, “non-marking”, roller bearings, thread guards.
  • Casing joint riveted throughout. Frame profile sections welded.

More Information

More Information
Chassis arrangement can be changed Yes
Formation Chassis 2 swivel and 2 fixed castors mounted at the corners
Wheel diameter 40 mm
Wheel diameter 125 mm
Material Aluminium
With corner beads. Yes
Peripheral beads and corner beads Yes

Variants

Order number Internal dimensions L x W x H Outside dimensions L x W x H Volume Weight
40631 1.000 mm × 640 mm × 650 mm approx. 1.050 mm × approx. 690 mm × approx. 855 mm 415 l 19.5 kg
40635 1.250 mm × 700 mm × 750 mm approx. 1.300 mm × approx. 750 mm × approx. 955 mm 655 l 23.7 kg
