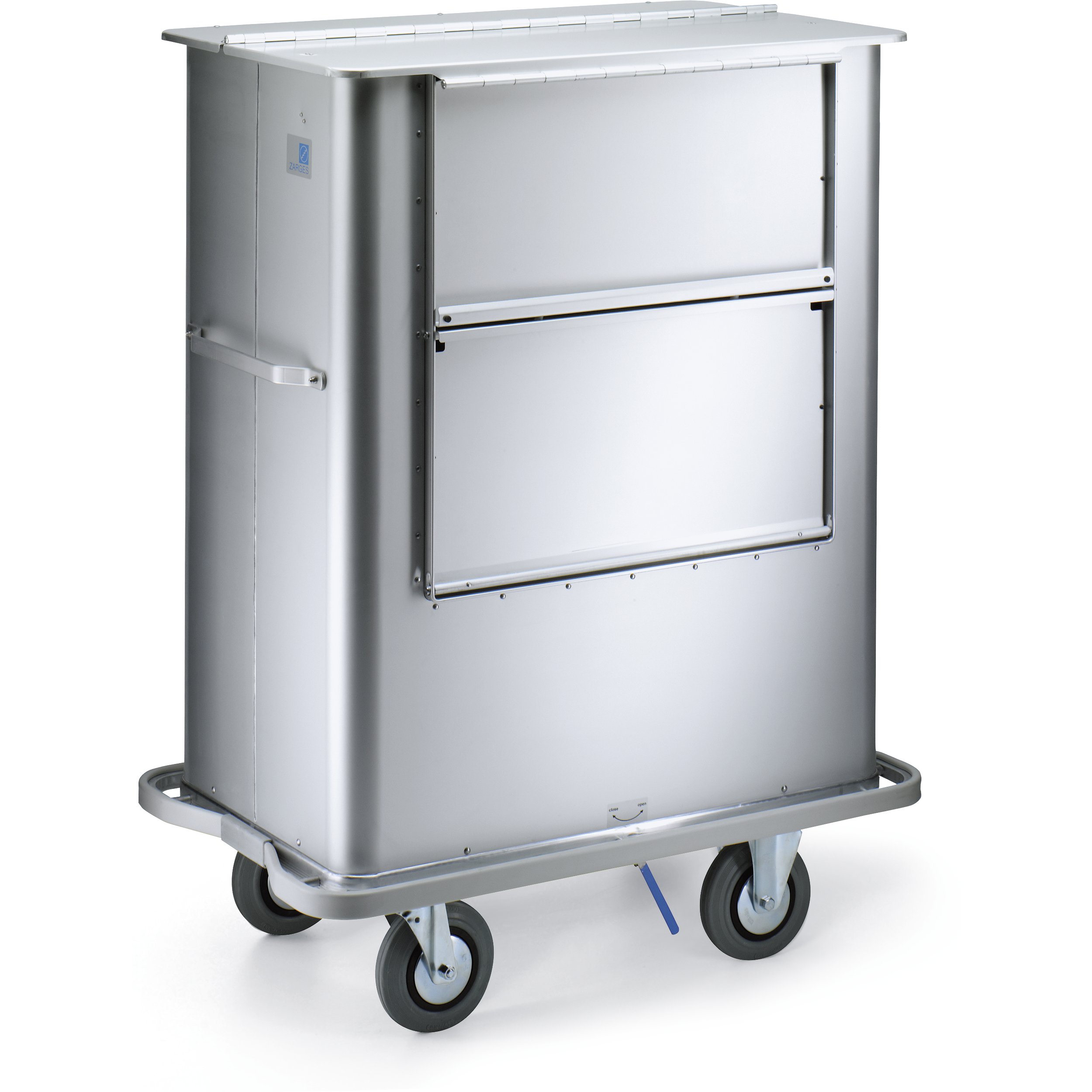

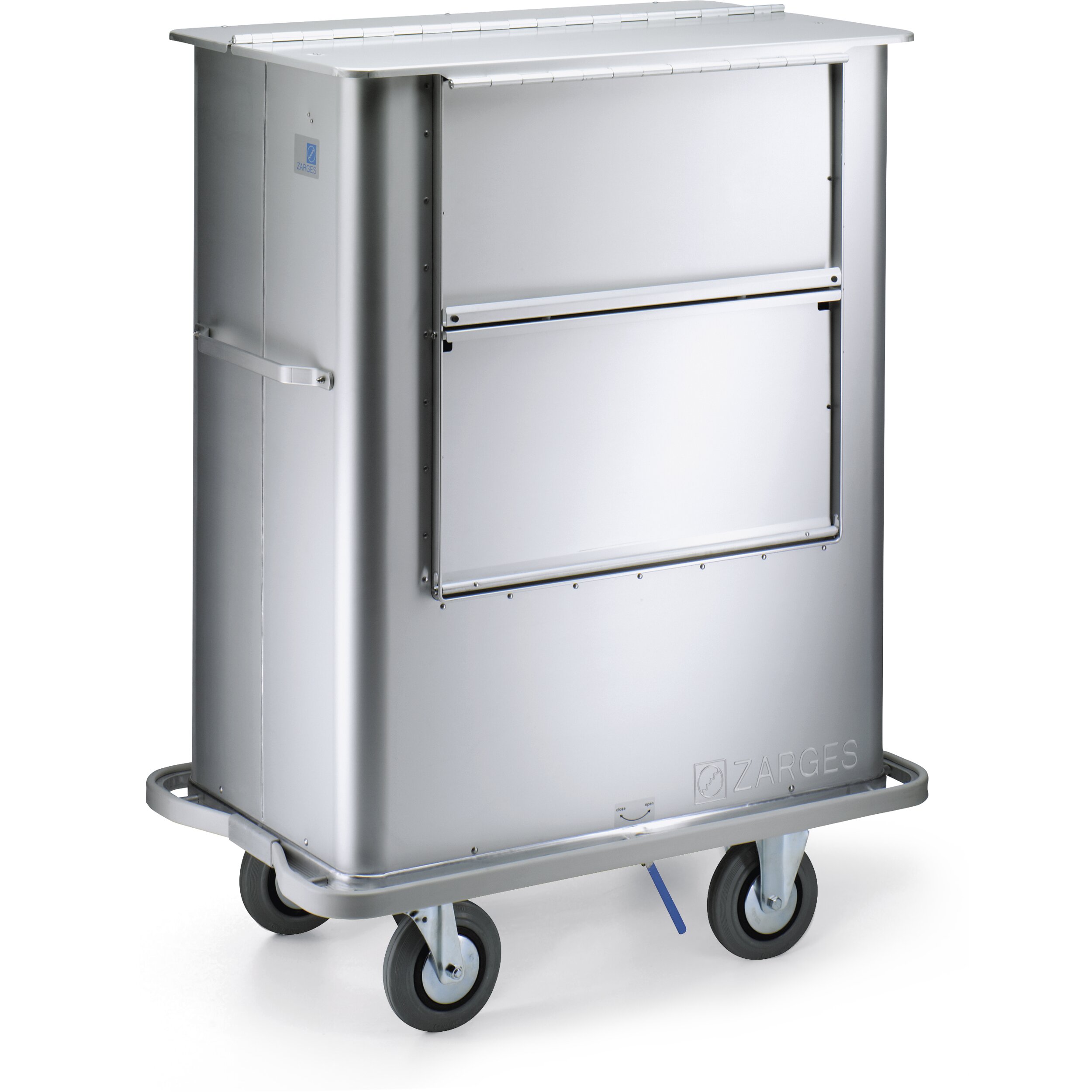

W 171 transport trolley with 3-part lid


Versatile transport trolley with lid for protection of the content, peripheral protection and anodised, abrasion-resistant surface.

  • Versatile transport trolley with lid for protecting the contents.
  • Smooth walls without beads.
  • Sturdy, generously dimensioned edge and base profile sections, high-strength positive locking ensures permanent bonding to jacket and base metal.
  • Trolley base with drainage channel and drain valve.
  • 3-part lid folding mechanism and a front-panel flap.
  • Plastic-padded fender frame all round.
  • Sliding handle on swivel-castor end.
  • Anodised design.
  • Side cutout with profile-section surround; profile-section joints continuously welded.
  • Longitudinal seam welded, base joint sealed all round.
  • Running gear: 2 swivel and 2 fixed castors, corner-mounted, Ø 200 mm, 50 mm wide, easy running, rubber wheels, “non-marking”, roller bearings, thread guards.

More Information

More Information
Material Anodised aluminium.
Formation Chassis 2 swivel and 2 fixed castors mounted at the corners
Chassis arrangement can be changed
Wheel diameter 200 mm


Order number Internal dimensions L x W x H Outside dimensions L x W x H Volume Weight
40691 1.000 mm × 575 mm × 1.200 mm 1.140 mm × 685 mm × 1.490 mm 690 l 30 kg
40692 1.250 mm × 700 mm × 1.200 mm 1.390 mm × 810 mm × 1.490 mm 1050 l 35 kg
