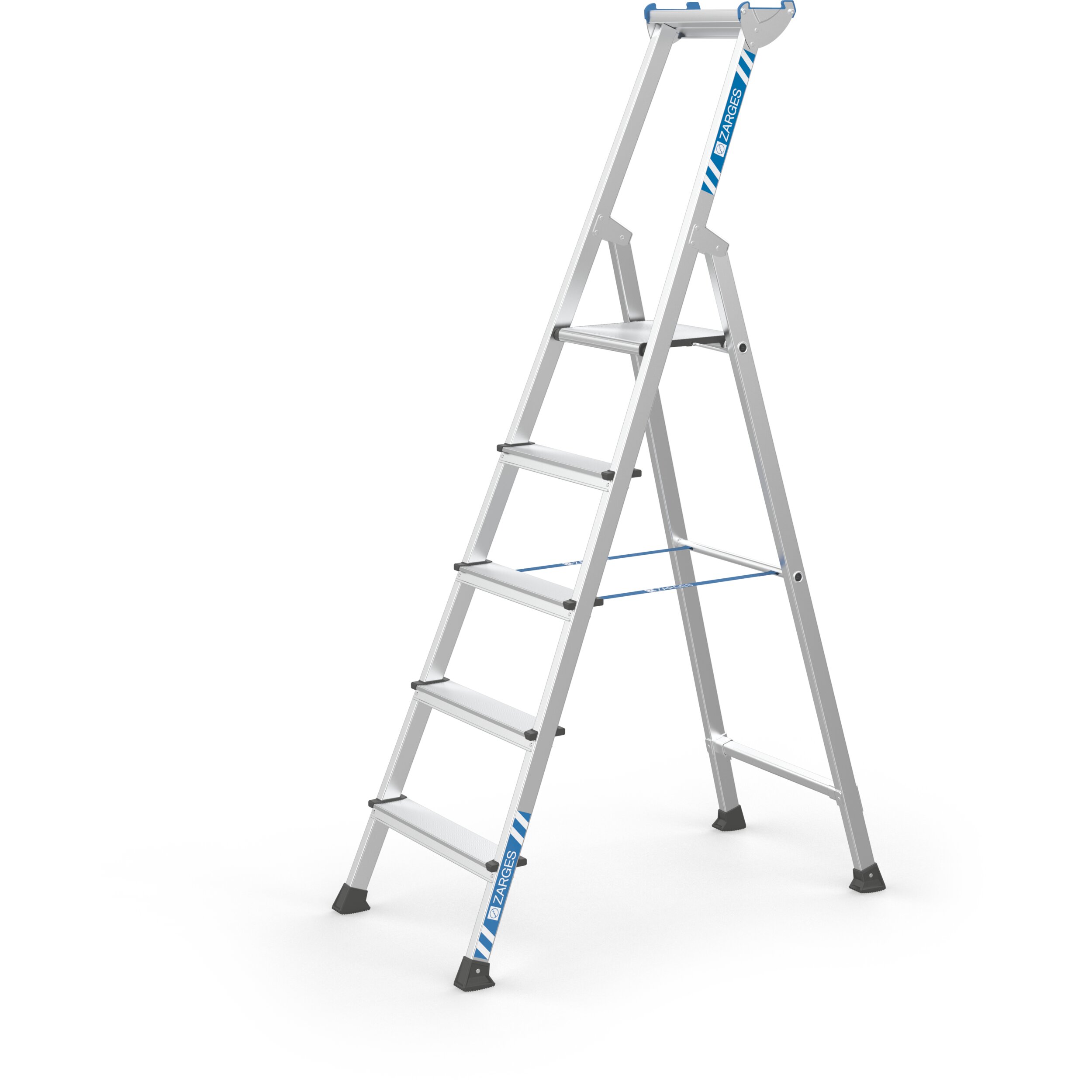

XLstep S

Details

Designed for frequent relocation: lightweight and durable, with a wide platform, a storage tray, and sturdy ladder end caps.

Designed for frequent relocation: lightweight and durable, with a wide platform, a storage tray, and sturdy ladder end caps.
Large platform that allows personnel to stand safely and comfortably even when working for extended periods.
Non-slip two-component ladder feet with a large contact surface.
Platform made from extruded aluminium (300 mm × 250 mm) for safe and comfortable standing even when working for longer periods of time.
Clean hands thanks to wear-resistant anodised stiles.
Spacious aluminum storage tray with plenty of room for tools and small parts.
Easy access up and down via sturdy 80-mm-deep treads.
Triple-riveted connection between treads and stiles.
4 treads and up: High-strength polyester webbing with sewn-in attachment tabs – durable and resistant to wear and tear.
Sturdy design for daily use: platform and profiles made of extruded aluminum.

More Information
Producttype	Riveted stepladder with treads
Anti splay	Belt strap
Tray	Aluminium
Coating	anodised
Connection Stile-Rung	riveted
Type rung/tread	serrated
Pitch rung/tread	250 mm
Tread depth	80 mm
Warranty	10 years
Standards	EN 131 professional
Stile depth	42 mm
Platform width	300 mm
Platform length	250 mm
Certification	TÜV-SÜD
Load capacity	max. 150 kg
Material	Aluminium

Order number	Anti splay	Base	Number of rungs, incl. platform	Overall base width	Overall length	Platform height	Stile depth	Stile depth steps/back stay	Transport dimensions	Vertical ladder height	Weight	Working height
41223		0,75 m × 0,5 m	3	0.5 m	1.56 m	0.74 m	42 mm	42mm / 42mm	approx. 1.560 mm × approx. 500 mm × approx. 155 mm	1.42 m	6 kg	2.75 m
41224	Belt strap	0,92 m × 0,53 m	4	0.53 m	1.83 m	0.99 m	42 mm	42mm / 42mm	approx. 1.830 mm × approx. 530 mm × approx. 155 mm	1.67 m	6.9 kg	3 m
41225	Belt strap	1,08 m × 0,56 m	5	0.56 m	2.1 m	1.24 m	42 mm	42mm / 42mm	approx. 2.100 mm × approx. 560 mm × approx. 155 mm	1.92 m	7.7 kg	3.25 m
41226	Belt strap	1,26 m × 0,59 m	6	0.59 m	2.37 m	1.49 m	48 mm	48mm / 42mm	approx. 2.370 mm × approx. 590 mm × approx. 155 mm	2.17 m	9.1 kg	3.5 m
41227	Belt strap	1,43 m × 0,62 m	7	0.62 m	2.64 m	1.74 m	48 mm	48mm / 42mm	approx. 2.640 mm × approx. 620 mm × approx. 155 mm	2.42 m	10.2 kg	3.75 m
41228	Belt strap	1,6 m × 0,65 m	8	0.65 m	2.91 m	1.99 m	48 mm	48mm / 42mm	approx. 2.910 mm × approx. 650 mm × approx. 155 mm	2.67 m	11.7 kg	4 m
41230	Belt strap	1,94 m × 0,7 m	10	0.7 m	3.45 m	2.49 m	48 mm	48mm / 42mm	approx. 3.450 mm × approx. 700 mm × approx. 155 mm	3.17 m	14.1 kg	4.5 m
