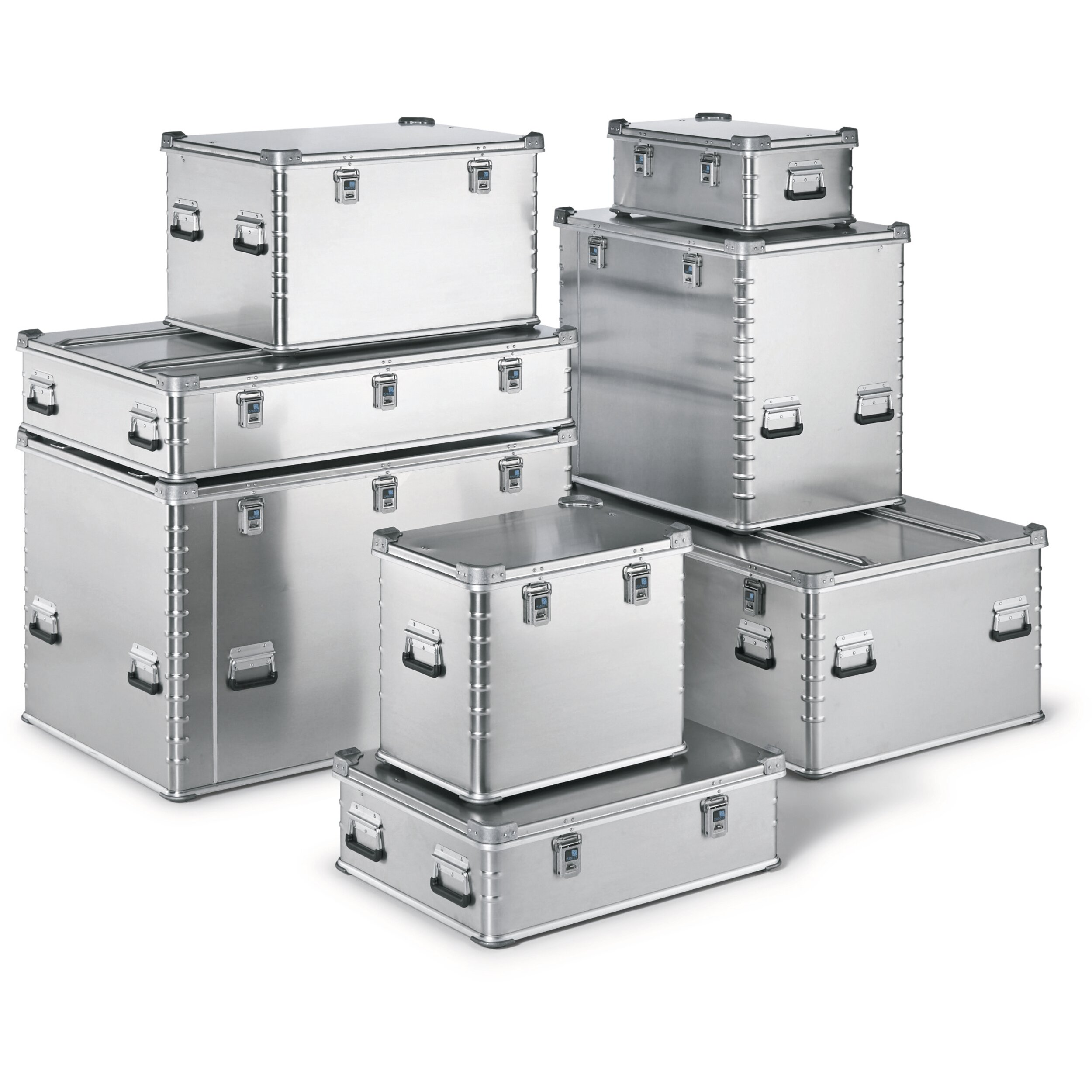

Y-Case and SanPack

Details

Transport and storage container for military applications.

  • Casing joint welded throughout.
  • Extra strong 1.5 mm sheet
  • Sturdy base, edge and lid profile.
  • Hinged lid with all-round seal.
  • Sturdy cast stacking corners on lid and base.
  • Stacking feet on the base with attachment bores on inside and outside.
  • Watertight up to lower edge of the drop handle due to silicon seal inside on the base.
  • All DY Cases have an additional handle on the front.
  • All DY Cases are suitable for assembly in a rack or Bundeswehr container.
  • Ergonomic & durable C. fasteners for at least 20,000 operating cycles.
  • Snap fasteners with protection against bursting open.
  • SanPack: exterior painted in RAL 6031 HR in accordance with TLA 0033 and supply plate; Red Cross identification marked with stickers in accordance with TL 6545-0056; labelling in accordance with TL 6545-0056 .
  • Inside of lid with DIN-A4 label frame with transparent sleeve.
  • Lid loose in the case of B 40.1 Y, B 40.2 Y and B 40.4 Y.
  • IP 54 protection class according to DIN EN 60 529 : 1992

Hints and special features

  • Clearance measurement approx. 30mm (1.2") less than internal dimension (length and width). Special sizes on request.,UN approval for the transportation of hazardous goods possible at additional charge.

Variants

Order number Internal dimensions L x W x H Outside dimensions L x W x H Volume Weight
45051 380 mm × 265 mm × 220 mm 420 mm × 305 mm × 270 mm 22 l 4.2 kg
45050 570 mm × 380 mm × 220 mm 615 mm × 420 mm × 270 mm 47 l 6.4 kg
45052 570 mm × 380 mm × 466 mm 615 mm × 420 mm × 516 mm 100 l 7.6 kg
45055 794 mm × 572 mm × 220 mm 835 mm × 615 mm × 270 mm 99 l 11.4 kg
45053 794 mm × 572 mm × 466 mm 835 mm × 615 mm × 516 mm 211 l 13.8 kg
45054 794 mm × 572 mm × 717 mm 835 mm × 615 mm × 761 mm 325 l 17 kg
45058 1.175 mm × 793 mm × 220 mm 1.215 mm × 833 mm × 270 mm 205 l 18 kg
45056 1.175 mm × 793 mm × 465 mm 1.215 mm × 833 mm × 516 mm 433 l 22 kg
45057 1.175 mm × 793 mm × 717 mm 1.215 mm × 833 mm × 761 mm 668 l 25.7 kg
