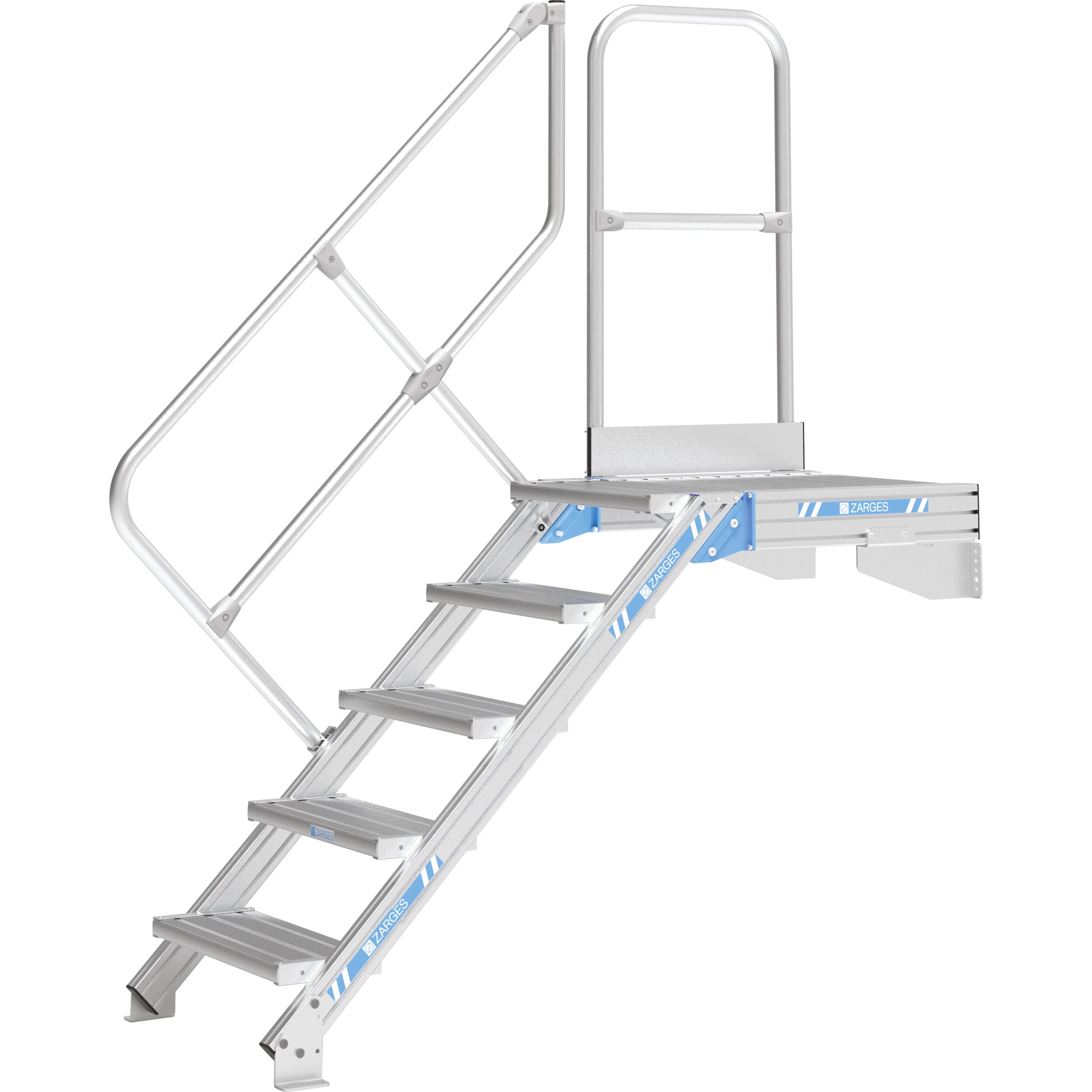

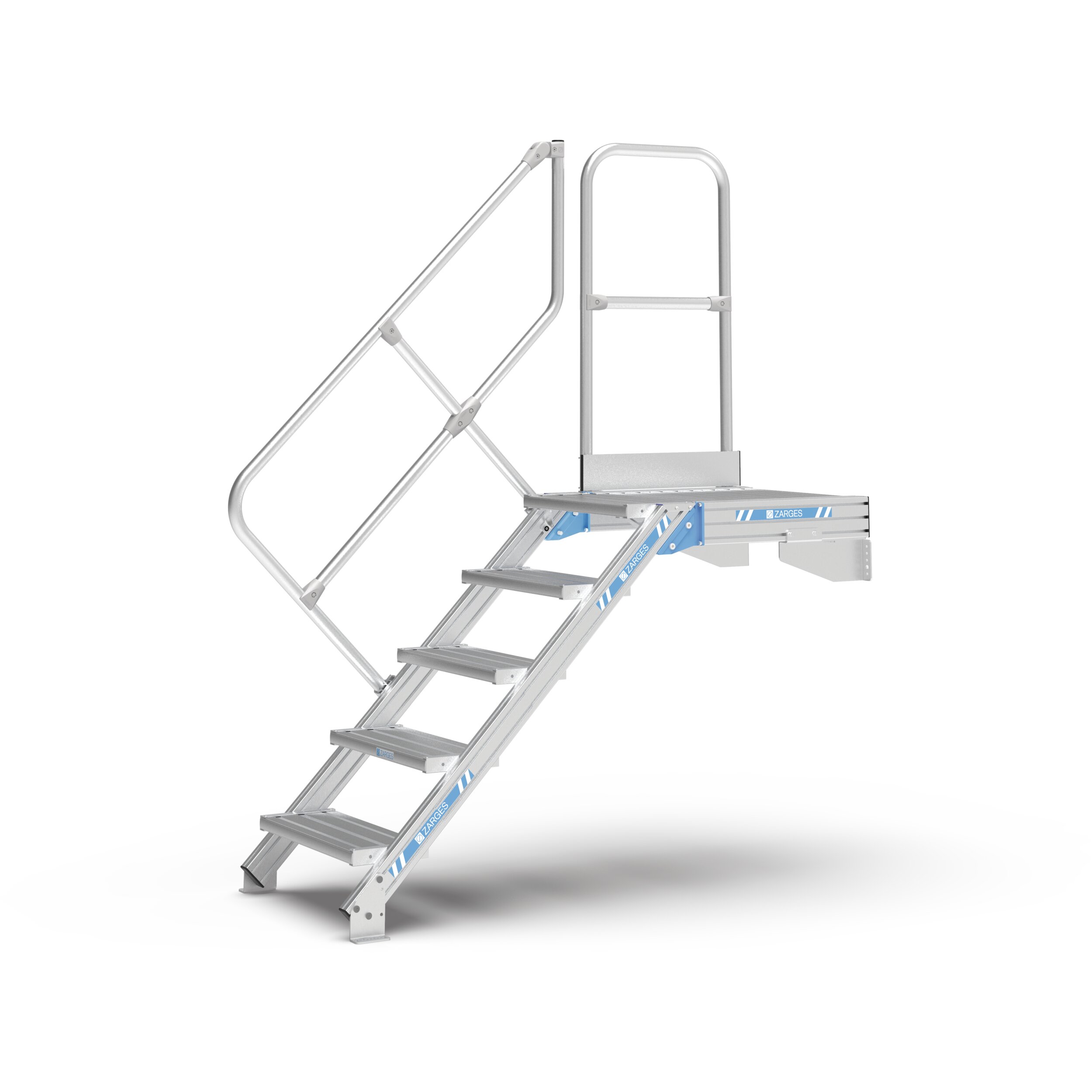

Access steps with platform

SKU: 40155428

Details

Stationary access to buildings and machines with platforms.

  • Different angles of inclination, 45° for comfortable access, 60° for confined spaces.
  • Selection of tread widths 600 mm, 800 mm or 1000 mm.

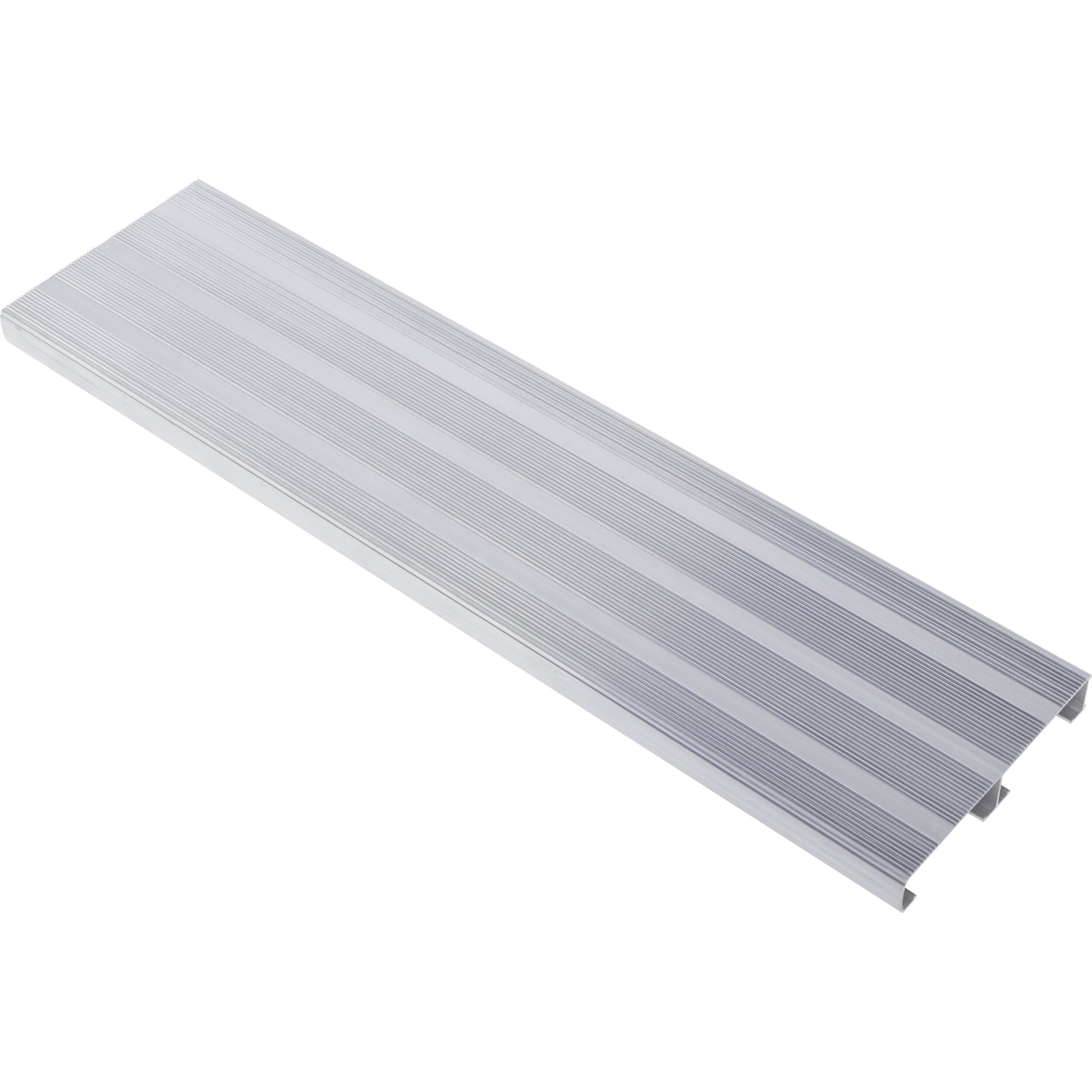

  • Serrated aluminium (R10) step and platform surfaces as standard. Also available as steel open grid (R12) and steel perforated plate (R13) for extra non-slip properties.
  • Individually adjustable platform lengths.
  • Support section mounting element for use as a free-standing work platform.
  • Individual guardrail configuration on the platform, optionally with swing door or pole barrier.

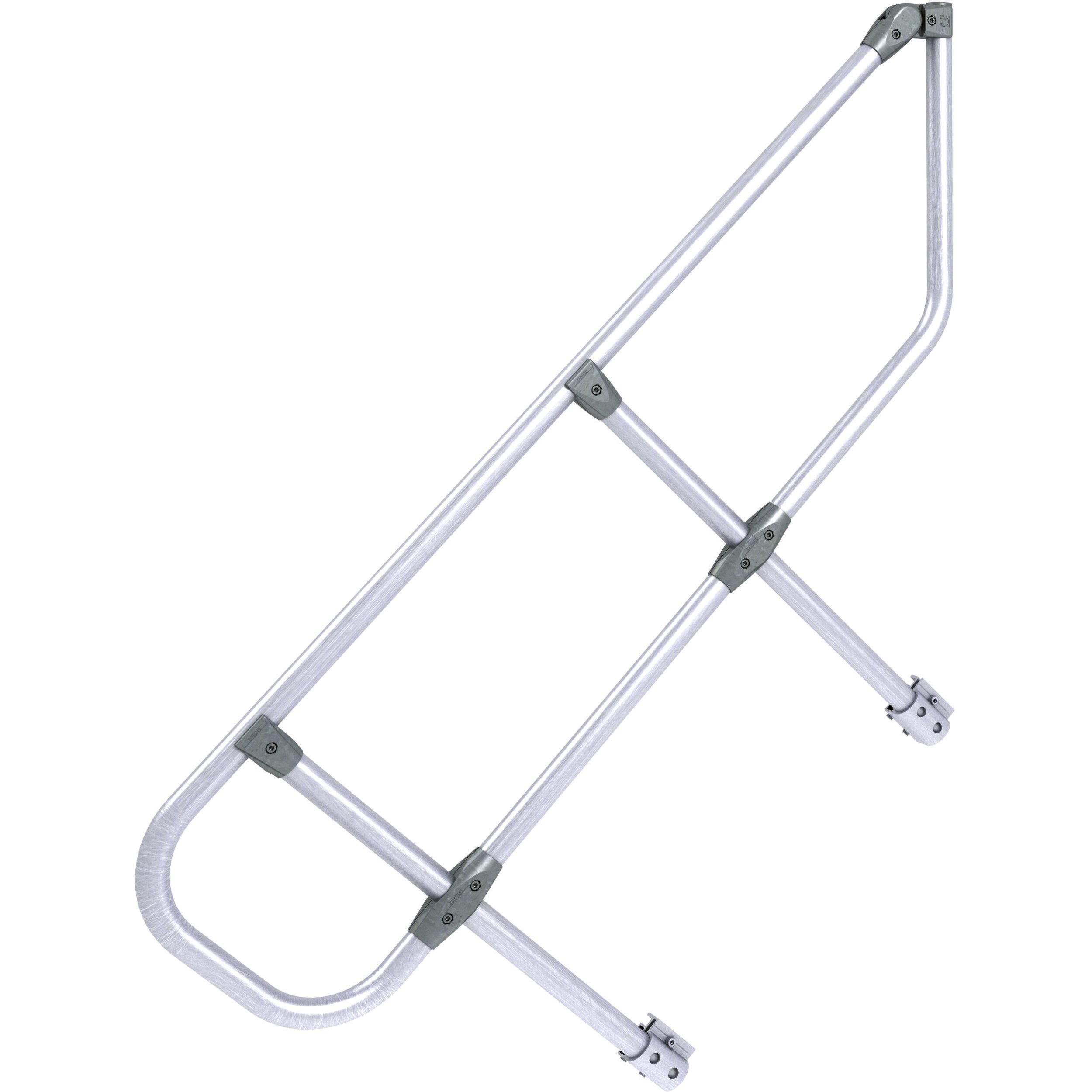

  • Maximum flexibility with optional handrails and guardrails which can be removed without tools.
  • Stiles made from high-strength aluminium extrusions with screw channels for flexible assembly options.
  • Quick and simple assembly with the ZARGES connection system with a high level of pre-assembly.

Hints and special features

  • We recommend equipping the product in accordance with the German Equipment and Product Safety Act (ProdSG) with two-sided handrails and, for steps with platforms or maintenance platforms, all-round fall protection (e.g. guardrails). If handrails or guardrails are not desired, the operator must ensure sufficient regulatory protection.
  • Standard applied: DIN EN ISO 14 122.

More Information

More Information
Standards EN ISO 14122
Warranty 10 years
Platform length 600 mm
load-capacity-step-td 150 kg
Tread width 600 mm
Load capacity max. 300 kg
Vertical height 1930 mm
Inclination 45 °
Number of treads 9
Overall span 2590 mm

Variants

Order number Inclination Number of treads Overall span Tread width Vertical height
40155424 45 ° 5 1730 mm 600 mm 1070 mm
40155426 45 ° 7 2160 mm 600 mm 1500 mm
40155428 45 ° 9 2590 mm 600 mm 1930 mm
40155430 45 ° 11 3020 mm 600 mm 2360 mm
40155432 45 ° 13 3451 mm 600 mm 2790 mm
40155434 45 ° 15 3881 mm 600 mm 3220 mm
40155436 45 ° 17 4311 mm 600 mm 3650 mm
40155438 45 ° 19 4741 mm 600 mm 4080 mm
40155444 45 ° 5 1730 mm 800 mm 1070 mm
40155446 45 ° 7 2160 mm 800 mm 1500 mm
40155448 45 ° 9 2590 mm 800 mm 1930 mm
40155450 45 ° 11 3020 mm 800 mm 2360 mm
40155452 45 ° 13 3451 mm 800 mm 2790 mm
40155454 45 ° 15 3881 mm 800 mm 3220 mm
40155456 45 ° 17 4311 mm 800 mm 3650 mm
40155458 45 ° 19 4741 mm 800 mm 4080 mm
40155464 45 ° 5 1730 mm 1000 mm 1070 mm
40155466 45 ° 7 2160 mm 1000 mm 1500 mm
40155468 45 ° 9 2590 mm 1000 mm 1930 mm
40155470 45 ° 11 3020 mm 1000 mm 2360 mm
40155472 45 ° 13 3451 mm 1000 mm 2790 mm
40155474 45 ° 15 3881 mm 1000 mm 3220 mm
40155476 45 ° 17 4311 mm 1000 mm 3650 mm
40155478 45 ° 19 4741 mm 1000 mm 4080 mm
40155364 60 ° 5 1407 mm 600 mm 1250 mm
40155366 60 ° 7 1695 mm 600 mm 1750 mm
40155368 60 ° 9 1984 mm 600 mm 2250 mm
40155370 60 ° 11 2273 mm 600 mm 2750 mm
40155372 60 ° 13 2561 mm 600 mm 3250 mm
40155374 60 ° 15 2850 mm 600 mm 3750 mm
40155376 60 ° 17 3139 mm 600 mm 4250 mm
40155378 60 ° 19 3427 mm 600 mm 4750 mm
40155384 60 ° 5 1407 mm 800 mm 1250 mm
40155386 60 ° 7 1695 mm 800 mm 1750 mm
40155388 60 ° 9 1984 mm 800 mm 2250 mm
40155390 60 ° 11 2273 mm 800 mm 2750 mm
40155392 60 ° 13 2561 mm 800 mm 3250 mm
40155394 60 ° 15 2850 mm 800 mm 3750 mm
40155396 60 ° 17 3139 mm 800 mm 4250 mm
40155398 60 ° 19 3427 mm 800 mm 4750 mm
40155404 60 ° 5 1407 mm 1000 mm 1250 mm
40155406 60 ° 7 1695 mm 1000 mm 1750 mm
40155408 60 ° 9 1984 mm 1000 mm 2250 mm
40155410 60 ° 11 2273 mm 1000 mm 2750 mm
40155412 60 ° 13 2561 mm 1000 mm 3250 mm
40155414 60 ° 15 2850 mm 1000 mm 3750 mm
40155416 60 ° 17 3139 mm 1000 mm 4250 mm
40155418 60 ° 19 3427 mm 1000 mm 4750 mm
