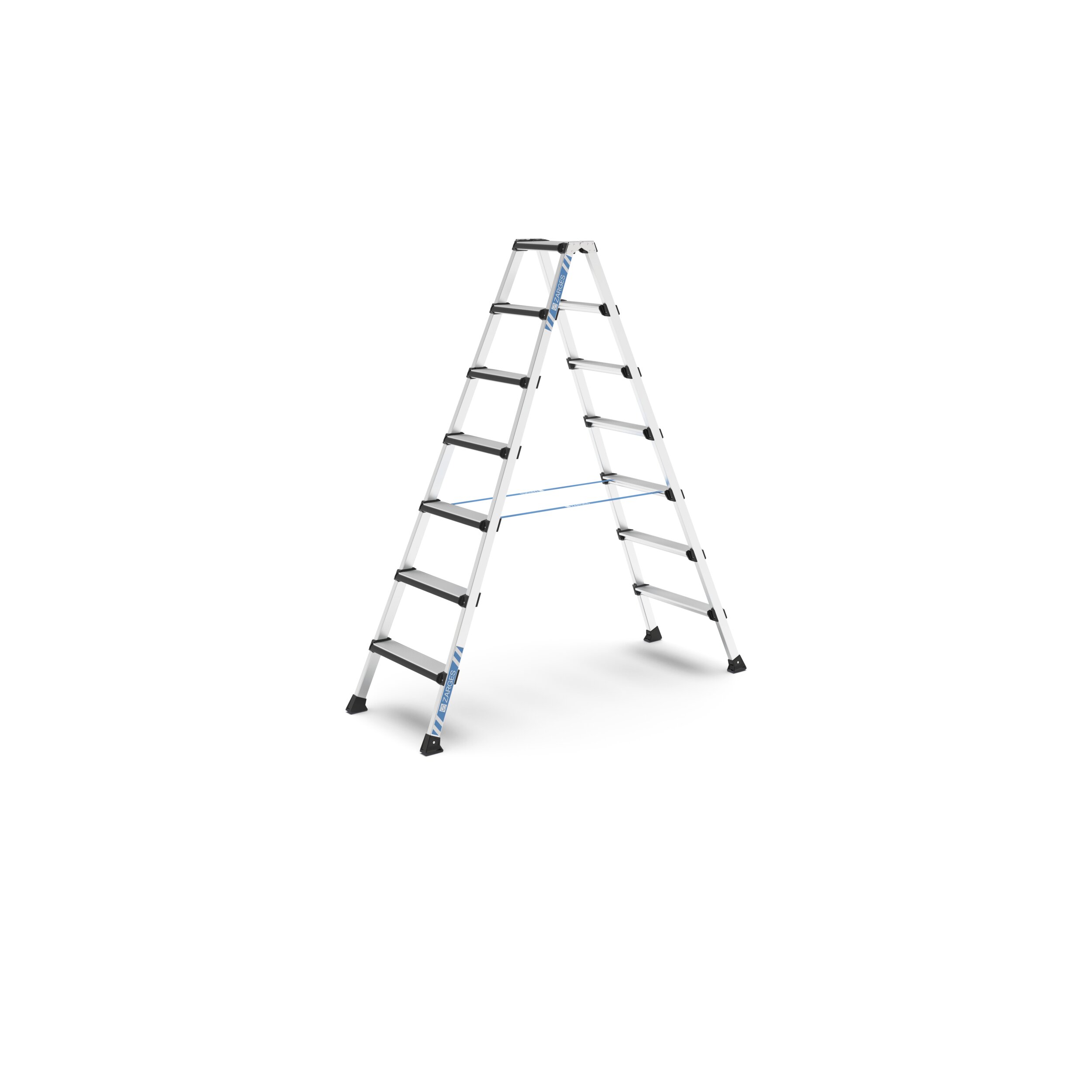

Comfortstep B

SKU: 41436

Details

Shin protection during ascent and descent and attractive design ensure high comfort when working and a flexible range of applications.

  • 80 mm deep treads with padded front edges.
  • Abrasion-resistant, anodised stiles.
  • High-strength perlon belts prevent splay.
  • Treads with plastic-cushioned front edges.
  • Non-slip plastic end caps.
  • Treads and stiles made from extruded aluminium sections.
  • Screwed connection between treads and stile.

Hints and special features

  • Complies with EN 131 Professional.

More Information

More Information
Anti splay Belt strap
Base 1,55 m × 0,56 m
Coating anodised
Connection Stile-Rung bolted
Tread depth 80 mm
Transport dimensions 1.920 mm × 560 mm × 174 mm
Vertical ladder height 1.75 m
Working height 3.25 m
Overall length 1.92 m
Load max. 150 kg
Material Aluminium
Number ladderparts 2
Number of treads 7
Number of treads 2 × 7
Pitch rung/tread 250 mm
Producttype Bolted stepladder with treads
Type rung/tread padding on front tread edges
Weight 10.3 kg
Overall base width 0.56 m
Stile depth 42 mm
Length base area 1.55 m
Width base area 0.56 m

Variants

Order number Base Number of treads Number of treads Overall base width Overall length Stile depth Transport dimensions Vertical ladder height Weight Working height
41432 0,74 m × 0,44 m 3 2 × 3 0.44 m 0.84 m 42 mm 840 mm × 445 mm × 174 mm 0.75 m 4.4 kg 2.25 m
41433 0,95 m × 0,47 m 4 2 × 4 0.47 m 1.11 m 42 mm 1.110 mm × 470 mm × 174 mm 1 m 5.8 kg 2.5 m
41434 1,15 m × 0,5 m 5 2 × 5 0.5 m 1.38 m 42 mm 1.380 mm × 500 mm × 174 mm 1.25 m 7.3 kg 2.75 m
41435 1,35 m × 0,53 m 6 2 × 6 0.53 m 1.65 m 42 mm 1.650 mm × 530 mm × 174 mm 1.5 m 8.8 kg 3 m
41436 1,55 m × 0,56 m 7 2 × 7 0.56 m 1.92 m 42 mm 1.920 mm × 560 mm × 174 mm 1.75 m 10.3 kg 3.25 m
41437 1,75 m × 0,59 m 8 2 × 8 0.59 m 2.18 m 48 mm 2.185 mm × 590 mm × 174 mm 2 m 12.2 kg 3.5 m
41438 2,16 m × 0,65 m 10 2 × 10 0.65 m 2.72 m 48 mm 2.725 mm × 650 mm × 174 mm 2.5 m 15.8 kg 4 m
41430 2,36 m × 0,68 m 11 2 × 11 0.68 m 2.99 m 48 mm 3.000 mm × 680 mm × 174 mm 2.75 m 17.6 kg 4.25 m
