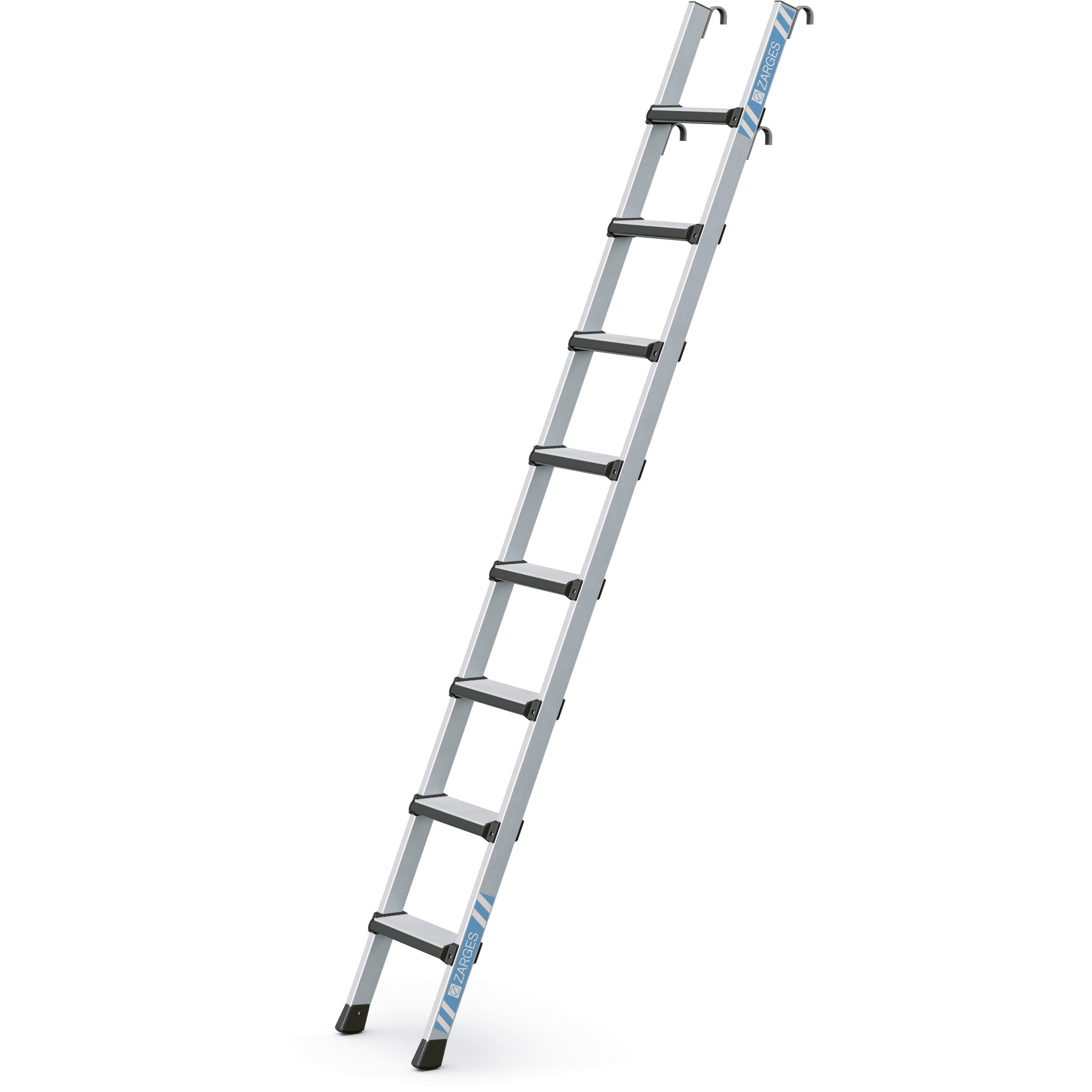

Comfortstep LH

SKU: 41404

Details

These flexible ladders ensure safe access to shelving and can be adapted to the required height.

  • Hook-on shelf ladders have two hooks for the guide rail and additional hooks for vertical storage on the shelf.

Hints and special features

  • Please quote the distance between the floor and the top edge of the tubular rail when ordering!
  • Complies with EN 131 Professional.

More Information

More Information
Pitch rung/tread 250 mm
Number of treads 8
Ext. width 380 mm
Producttype Bolted hook-on shelf ladder with treads
Type rung/tread padding on front tread edges
Tread depth 80 mm
Coating anodised
Connection Stile-Rung bolted
Height hook on vertical =1,95m-=2,19 m
Material Aluminium
Load max. 150 kg
Transport dimensions 2.140 mm × 380 mm × 100 mm
Working height 3.25 m
Min height hook on vertical = 1.95 m
Max height hook on vertical = 2.19 m

Variants

Order number Height hook on vertical Max height hook on vertical Min height hook on vertical Number of treads Transport dimensions Working height
41402 =1,45m-=1,69 m = 1.69 m = 1.45 m 6 1.660 mm × 380 mm × 100 mm 2.75 m
41403 =1,7m-=1,94 m = 1.94 m = 1.7 m 7 1.900 mm × 380 mm × 100 mm 3 m
41404 =1,95m-=2,19 m = 2.19 m = 1.95 m 8 2.140 mm × 380 mm × 100 mm 3.25 m
41405 =2,2m-=2,44 m = 2.44 m = 2.2 m 9 2.380 mm × 380 mm × 140 mm 3.5 m
41406 =2,45m-=2,69 m = 2.69 m = 2.45 m 10 2.300 mm × 380 mm × 150 mm 3.75 m
