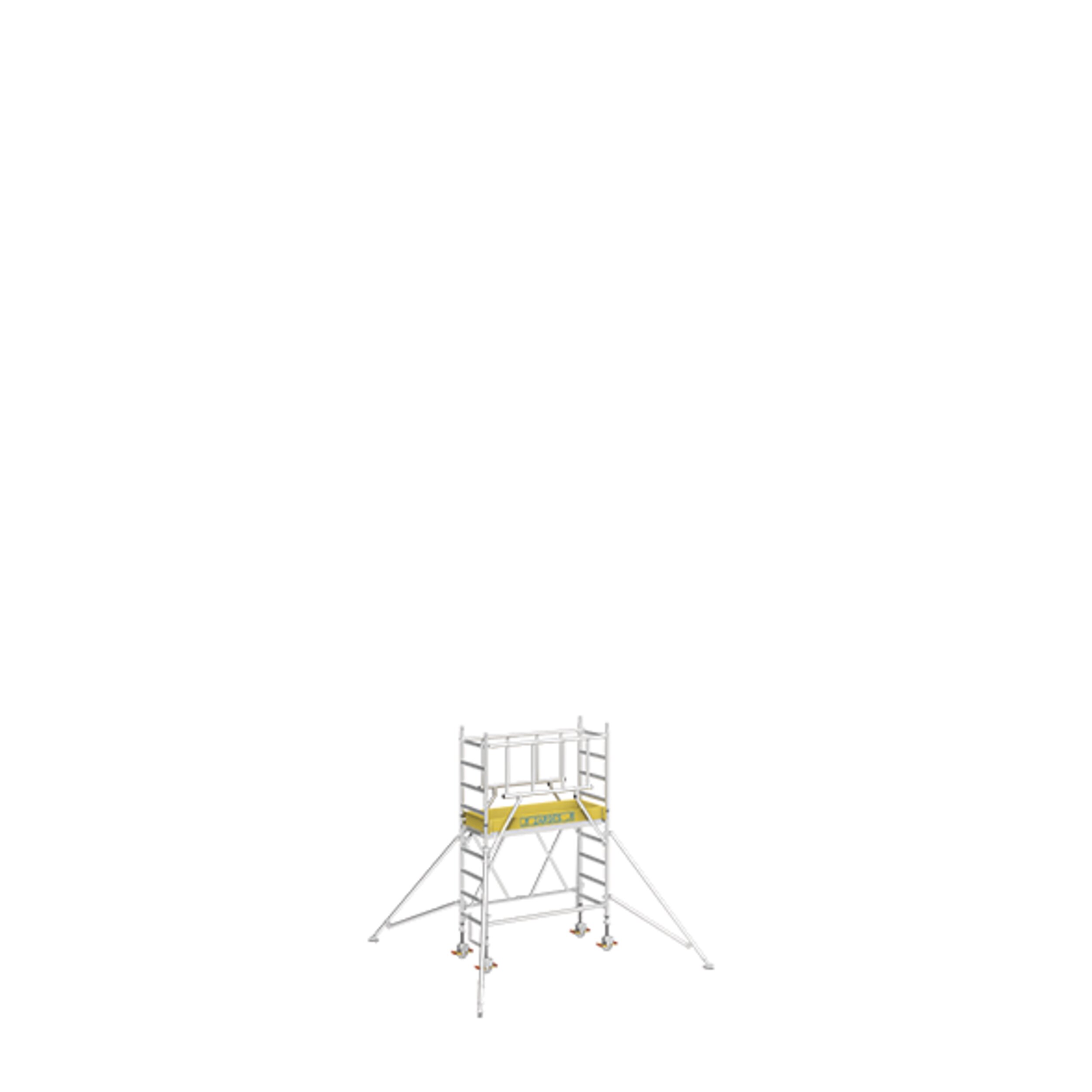

CompactMaster S-PLUS 1T

SKU: 53099

Details

The top-selling folding scaffold unit is now available with advanced guardrail and two metre platform distance for safe and fast erection.

The top-selling folding scaffold unit is now available with advanced guardrail and two metre platform distance for safe and fast erection.
Basic module folds together for rapid erection and dismantling.
Scaffolding width: 0.85 m or 1.45 m (lower section incl. hinges); Scaffolding length: 1.80 m.
Working heights can be extended from 3.75 m to max. 13.55 m with standard parts.
Scaffolding Group 3 (strength up to 200 kg/m²) in accordance with DIN EN 1004-1.
Standard casters: 150 mm swivel castors with height adjustment (order no. 42755) for precise height adjustment down to the millimeter.

Order number	Height-adjustable castors:	Overall height	Platform height	Standards	Transport dimensions	Weight	Wheel diameter	Working height
53300	No	1.65 m	0.95 m		1.900 mm × approx. 950 mm × approx. 480 mm	35.8 kg	125 mm	2.95 m
53099	Yes	3 m	1.75 m	EN 1004-1	0 mm0 mm0 mm	105.8 kg	150 mm	3.75 m
53121	Yes	3.85 m	2.6 m	EN 1004-1	0 mm0 mm0 mm	123.6 kg	150 mm	4.6 m
53131	Yes	4.95 m	3.7 m	EN 1004-1	0 mm0 mm0 mm	147.8 kg	150 mm	5.7 m
53141	Yes	5.8 m	4.55 m	EN 1004-1	0 mm0 mm0 mm	165.6 kg	150 mm	6.55 m
53151	Yes	6.9 m	5.65 m	EN 1004-1	0 mm0 mm0 mm	189.8 kg	150 mm	7.65 m
53161	Yes	7.75 m	6.5 m	EN 1004-1	0 mm0 mm0 mm	216 kg	150 mm	8.5 m
53171	Yes	8.9 m	7.6 m	EN 1004-1	0 mm0 mm0 mm	231.8 kg	150 mm	9.6 m
53181	Yes	9.7 m	8.4 m	EN 1004-1	0 mm0 mm0 mm	249.6 kg	150 mm	10.45 m
53191	Yes	10.85 m	9.6 m	EN 1004-1	0 mm0 mm0 mm	273.8 kg	150 mm	11.6 m
53101	Yes	11.7 m	10.4 m	EN 1004-1	0 mm0 mm0 mm	291.6 kg	150 mm	12.4 m
53111	Yes	12.8 m	11.55 m	EN 1004-1	0 mm0 mm0 mm	315.8 kg	150 mm	13.55 m
