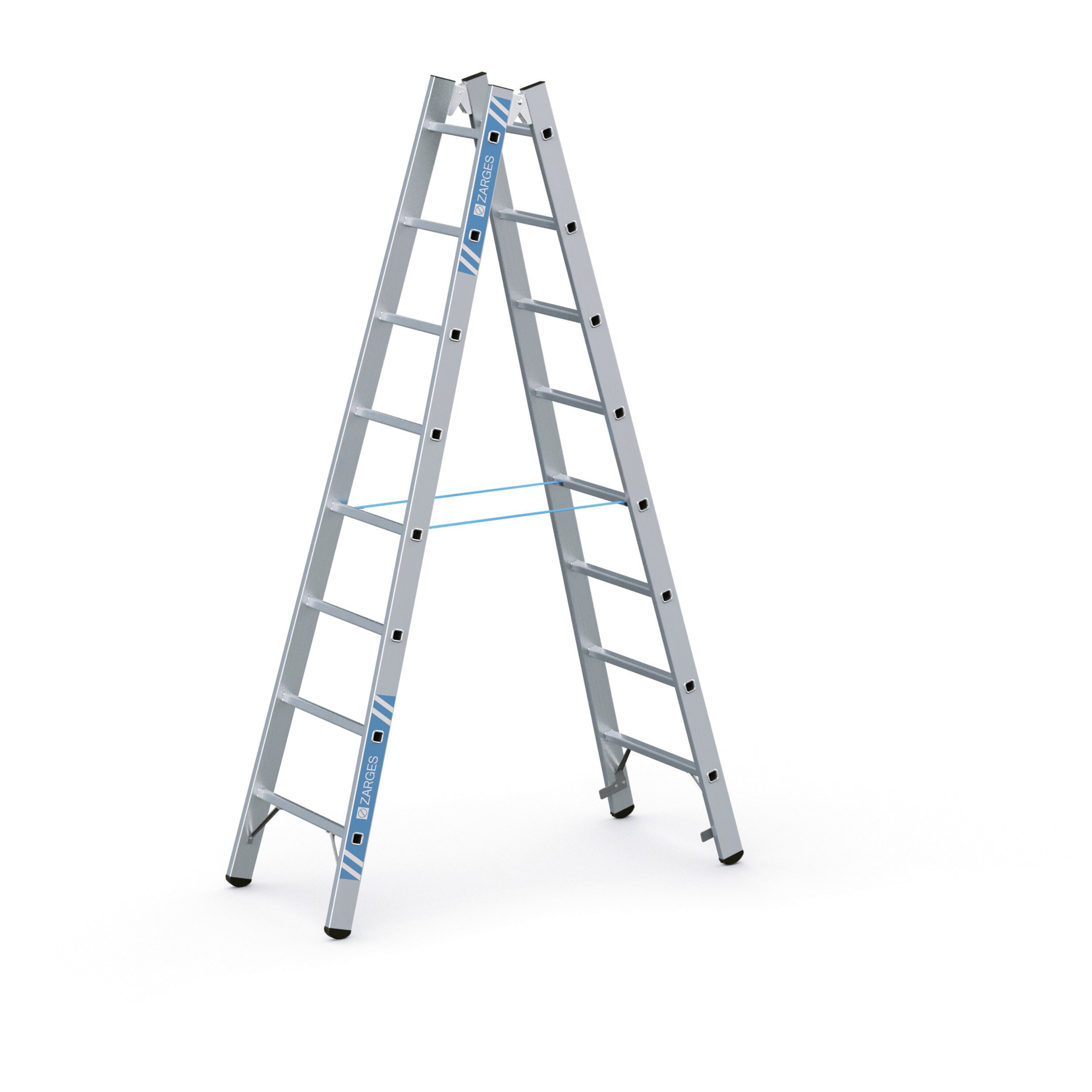

Coni B

SKU: 40312

Details

Whenever you need access to great heights: flexibility with up to 20 rungs for working heights of up to 6.70 m.

  • Sturdy aluminium alloy rungs (30 x 30 mm) with non-slip serrated surface.
  • Sturdy, solidly screwed steel hinges
  • Two high-strength Perlon belts, secured without twisting to the rung, prevent splay.
  • High strength, non-twist rung/stile connections.
  • Additional stabilisation by bracing on the bottom rung.
  • Replaceable 2-component plastic end caps ensure positioning without risk of slipping and at the same time provide firm seating in the stile.

Hints and special features

  • Complies with EN 131 Professional.

More Information

More Information
Anti splay Belt strap
Base 1,36 m × 0,59 m
Coating natural
Connection Stile-Rung flanged
Tread depth 30 mm
Transport dimensions 2.363 mm × 593 mm × 155 mm
Vertical ladder height 2.3 m
Working height 3.55 m
Overall length 2.34 m
Load max. 150 kg
Material Aluminium
Number of rungs 8
Number of rungs 2 × 8
Pitch rung/tread 265 mm
Producttype Flanged stepladder with rungs
Type rung/tread serrated
Weight 9 kg
Overall base width 0.59 m
Stile depth 58 mm

Variants

Order number Base Number of rungs Number of rungs Overall base width Overall length Stile depth Transport dimensions Vertical ladder height Weight Working height
40274 0,9 m × 0,47 m 4 2 × 4 0.47 m 1.22 m 50 mm 1.220 mm × 470 mm × 140 mm 1.2 m 4.4 kg 2.5 m
40275 1,07 m × 0,5 m 5 2 × 5 0.5 m 1.58 m 58 mm 1.500 mm × 505 mm × 140 mm 1.46 m 5.8 kg 2.75 m
40311 1,25 m × 0,53 m 6 2 × 6 0.53 m 1.78 m 58 mm 1.810 mm × 533 mm × 155 mm 1.73 m 6.8 kg 3 m
40277 1,41 m × 0,57 m 7 2 × 7 0.57 m 2.06 m 58 mm 2.080 mm × 570 mm × 155 mm 1.99 m 7.3 kg 3.25 m
40312 1,36 m × 0,59 m 8 2 × 8 0.59 m 2.34 m 58 mm 2.363 mm × 593 mm × 155 mm 2.3 m 9 kg 3.55 m
40313 1,65 m × 0,65 m 10 2 × 10 0.65 m 2.9 m 58 mm 2.922 mm × 653 mm × 155 mm 2.83 m 11.1 kg 4.05 m
40314 1,94 m × 0,71 m 12 2 × 12 0.71 m 3.46 m 58 mm 3.481 mm × 713 mm × 155 mm 3.37 m 13.3 kg 4.6 m
40315 2,23 m × 0,77 m 14 2 × 14 0.77 m 4.02 m 62 mm 4.041 mm × 773 mm × 163 mm 3.91 m 17.2 kg 5.1 m
40316 2,52 m × 0,83 m 16 2 × 16 0.83 m 4.58 m 68 mm 4.600 mm × 833 mm × 183 mm 4.45 m 21.2 kg 5.65 m
40320 2,83 m × 0,89 m 18 2 × 18 0.89 m 5.14 m 73 mm 5.160 mm × 893 mm × 185 mm 5 m 25.6 kg 6.15 m
40317 3,12 m × 0,95 m 20 2 × 20 0.95 m 5.7 m 73 mm 5.720 mm × 953 mm × 185 mm 5.54 m 29.8 kg 6.7 m
