EFA B

SKU: 41257

Details

For flexible applications in electrical or chemical environments and for working under voltage.

  • For flexible applications in electrical or chemical environments and for working under voltage.
  • Stiles and rungs made of glass-fibre-reinforced plastic for particularly high chemical resistance.
  • Complies with the high-voltage test for ladders of insulating material in accordance with DIN EN 61 478 or VDE 0682 Section 6.5 Category 1/30 KV.
  • Resistance to ageing in accordance with DIN EN ISO 4892-2.
  • Suitable for working in high-voltage environments (1000 V AC, 1500 V DC).
  • Stiles and rungs (30 x 30 mm) made from glass-fibre-reinforced plastic for particularly high chemical resistance.

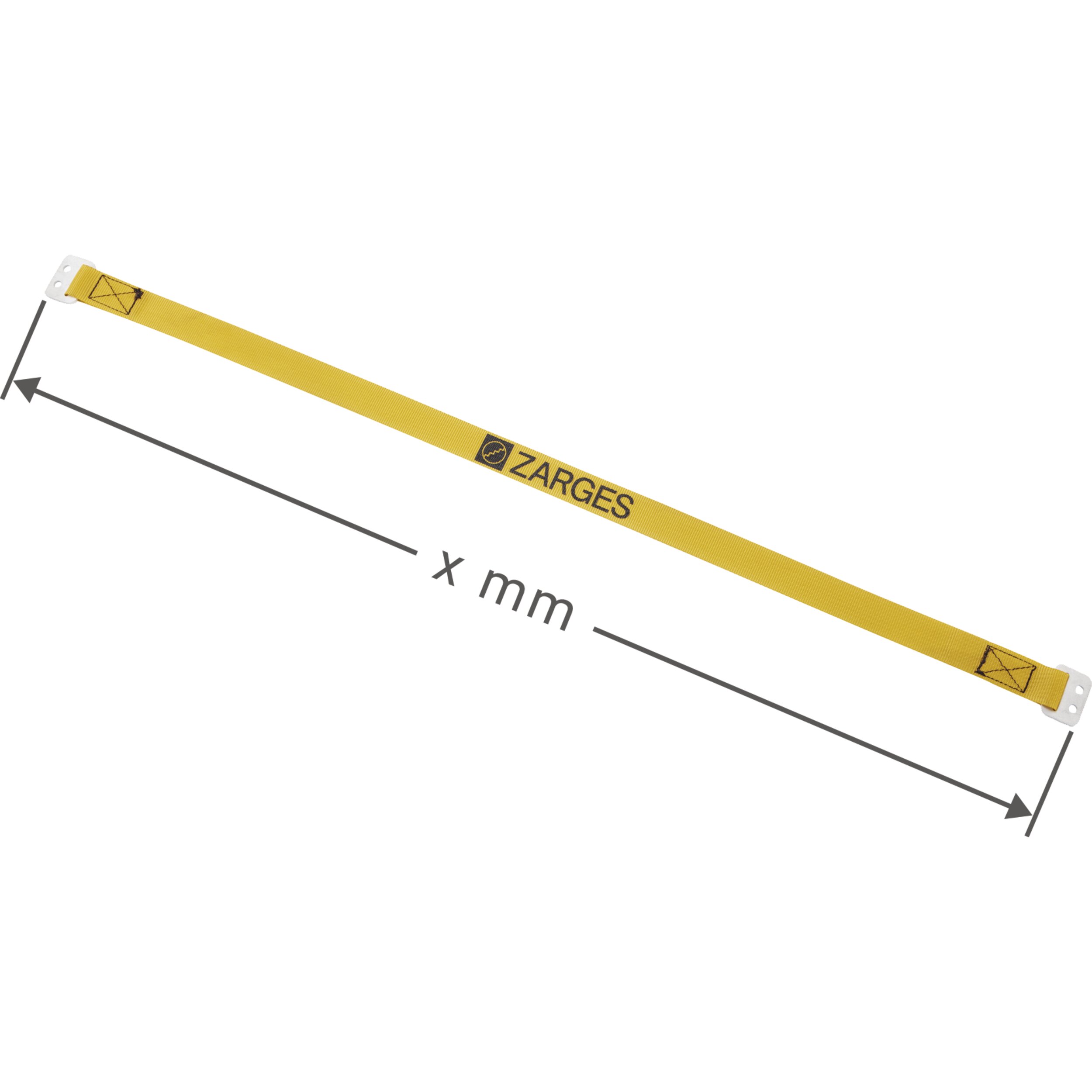

  • High-strength perlon belts prevent splay.
  • Replaceable 2-component plastic end caps ensure positioning without the risk of slipping and at the same time provide firm seating in the stile.

Hints and special features

  • Complies with EN 131 Professional.

More Information

More Information
Material Glass-fibre reinforced plastic
Standards EN 131 professional
Warranty 10 years
Load capacity max. 150 kg
Anti splay Belt strap
Base 1,66 m × 0,6 m
Tread depth 30 mm
Transport dimensions 2.460 mm × 600 mm × 162 mm
Vertical ladder height 2.35 m
Working height 3.65 m
Overall length 2.44 m
Number ladderparts 2
Number of rungs 8
Number of rungs 2 × 8
Pitch rung/tread 265 mm

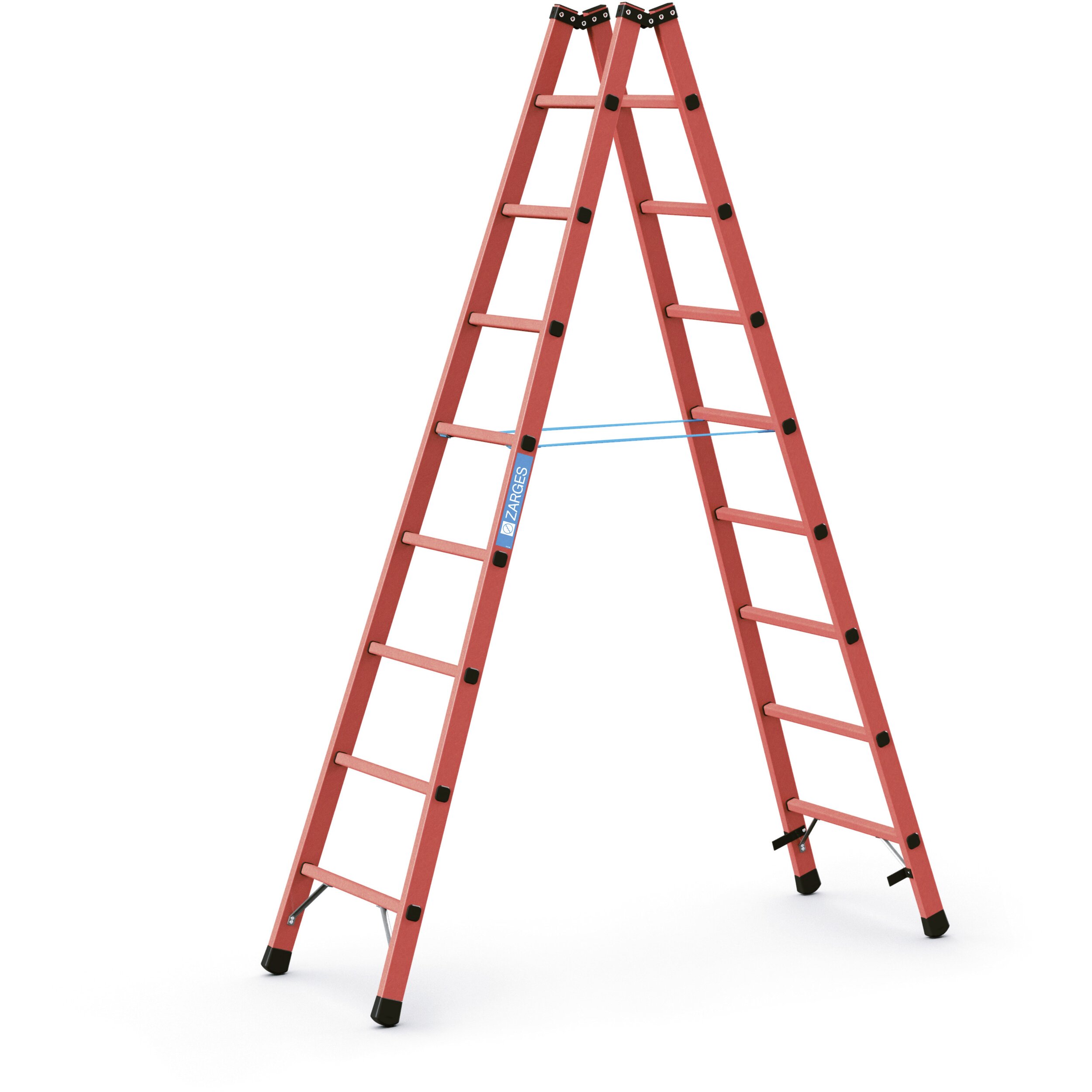

Producttype GRP stepladder with rungs
Type rung/tread serrated
Weight 13.8 kg
Overall base width 0.6 m
Stile depth 58 mm
Length base area 1.66 m
Width base area 0.6 m

Variants

Order number Base Number of rungs Number of rungs Overall base width Overall length Transport dimensions Vertical ladder height Weight Working height
41261 1,08 m × 0,48 m 4 2 × 4 0.48 m 1.32 m 1.350 mm × 480 mm × 162 mm 1.27 m 7.5 kg 2.6 m
41256 1,31 m × 0,54 m 6 2 × 6 0.54 m 1.88 m 1.900 mm × 540 mm × 162 mm 1.82 m 10.5 kg 3.1 m
41257 1,66 m × 0,6 m 8 2 × 8 0.6 m 2.44 m 2.460 mm × 600 mm × 162 mm 2.35 m 13.8 kg 3.65 m
41258 2,01 m × 0,66 m 10 2 × 10 0.65 m 3 m 3.000 mm × 660 mm × 160 mm 2.89 m 17 kg 4.15 m
41260 2,7 m × 0,78 m 14 2 × 14 0.77 m 4.12 m 4.150 mm × 770 mm × 160 mm 3.95 m 24.6 kg 5.2 m
