Everest 2E

SKU: 40245

Contact ZARGES Add to Compare Download Product Datasheet (PDF) Product Documents Spare parts and accessories

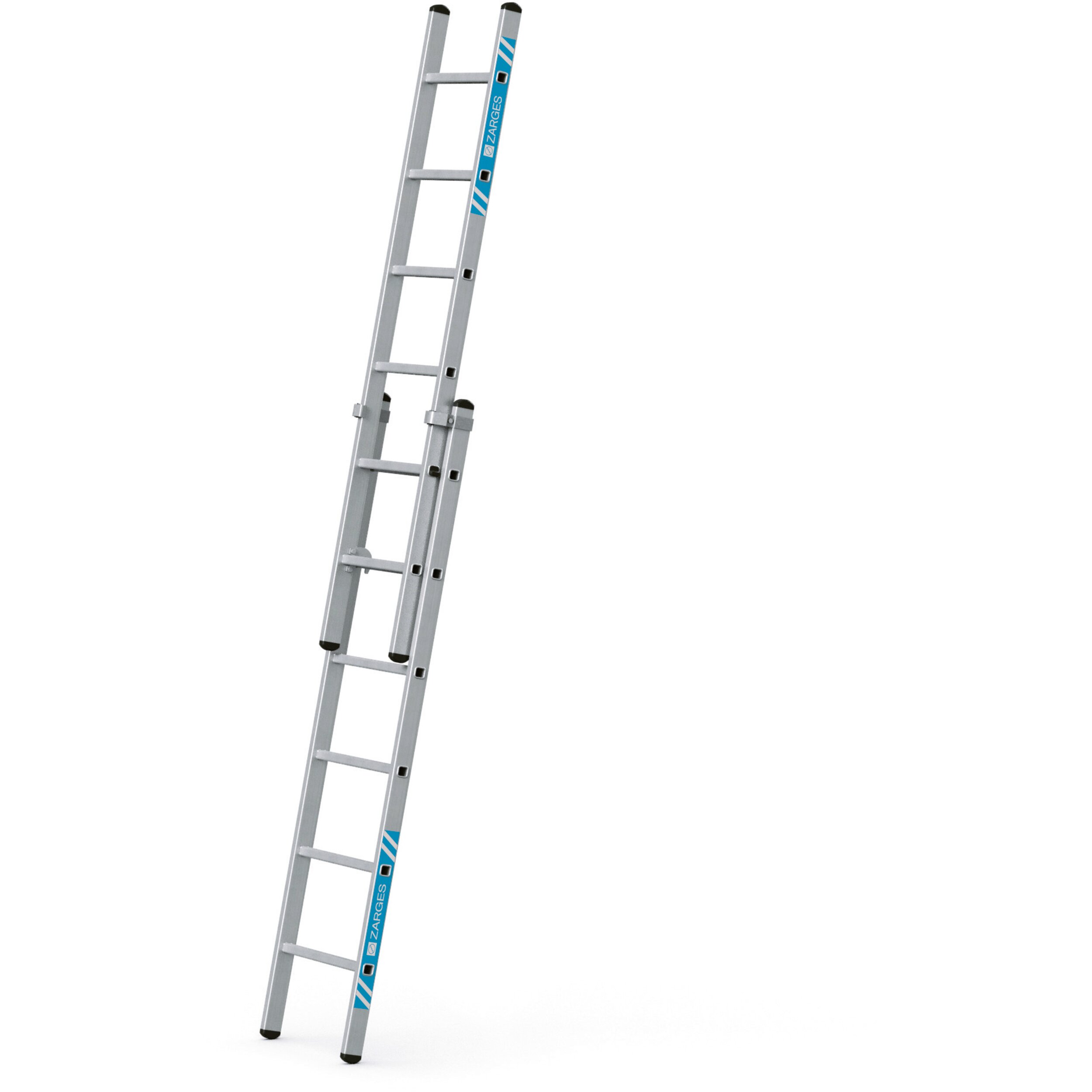

main product photo

Details

The convenient solution for working at great heights with maximum ladder width for comfortable climbing and safe standing.

  • The convenient solution for working at great heights with maximum ladder width for comfortable climbing and safe standing.
  • From length of 8.30 m – upper ladder with wheel assemblies. Wall wheels with wear-resistant surfaces that will not damage the wall.
  • Convenient and precise rung-by-rung height adjustment in a grid of 280 mm.
  • Both parts of the ladder can also be used separately as single ladders for Order Nos. 40245-40247
  • A high level of stability thanks to extra-wide bottom ladder (490 mm).
  • Both parts of the ladder can also be used separately as single ladders.
  • Plastic anti-friction insert and lift-off retainer.
  • Replaceable 2-component plastic end caps ensure secure positioning without the risk of slipping.

Hints and special features

  • Complies with EN 131 Professional.

More Information

More Information
Producttype Flanged push-up ladder with rungs, 2-section
Coating natural
Connection Stile-Rung flanged
Tread depth 30 mm
Transport dimensions 1.830 mm × 500 mm × 130 mm
Working height 3.8 m
Overall length, extended 2.95 m
Overall length, retracted 1.83 m
Wheels Rubber
Number of rungs 6
Number of rungs 2 × 6
Pitch rung/tread 270 mm
Type rung/tread serrated
Weight 7.6 kg
External width of lower ladder 490 mm
Stile depth 58 mm
Warranty 10 years
Standards EN 131 professional
Material Aluminium
Load capacity max. 150 kg
Certification TÜV-SÜD
Number of rungs / treads 2 × 6

Variants

Order number Number of rungs Overall length, extended Overall length, retracted Stile depth Transport dimensions Weight Wheels Wide crosspiece Working height
40245 2 × 6 2.95 m 1.83 m 58 mm 1.830 mm × 500 mm × 130 mm 7.6 kg 3.8 m
40246 2 × 8 4.07 m 2.39 m 68 mm 2.390 mm × 500 mm × 130 mm 9.8 kg 0.9 m 4.85 m
40247 2 × 10 4.96 m 3 m 68 mm 3.000 mm × 500 mm × 140 mm 13.5 kg 1 m 5.75 m
40248 2 × 12 6.09 m 3.56 m 73 mm 3.570 mm × 500 mm × 160 mm 18 kg 1.1 m 6.8 m
40249 2 × 14 7.21 m 4.07 m 85 mm 4.130 mm × 500 mm × 160 mm 19.5 kg 1.2 m 7.9 m
40214 2 × 16 8.33 m 4.7 m 98 mm 4.690 mm × 500 mm × 180 mm 26.2 kg Rubber 1.2 m 9 m
40215 2 × 18 9.13 m 5.2 m 98 mm 5.210 mm × 500 mm × 230 mm 28.8 kg Rubber 1.2 m 9.75 m
40216 2 × 20 10.25 m 5.74 m 114 mm 5.770 mm × 500 mm × 230 mm 33 kg Rubber 1.2 m 10.85 m
40217 2 × 24 12.22 m 6.9 m 114 mm 6.900 mm × 500 mm × 230 mm 41.5 kg Rubber 1.2 m 12.75 m
