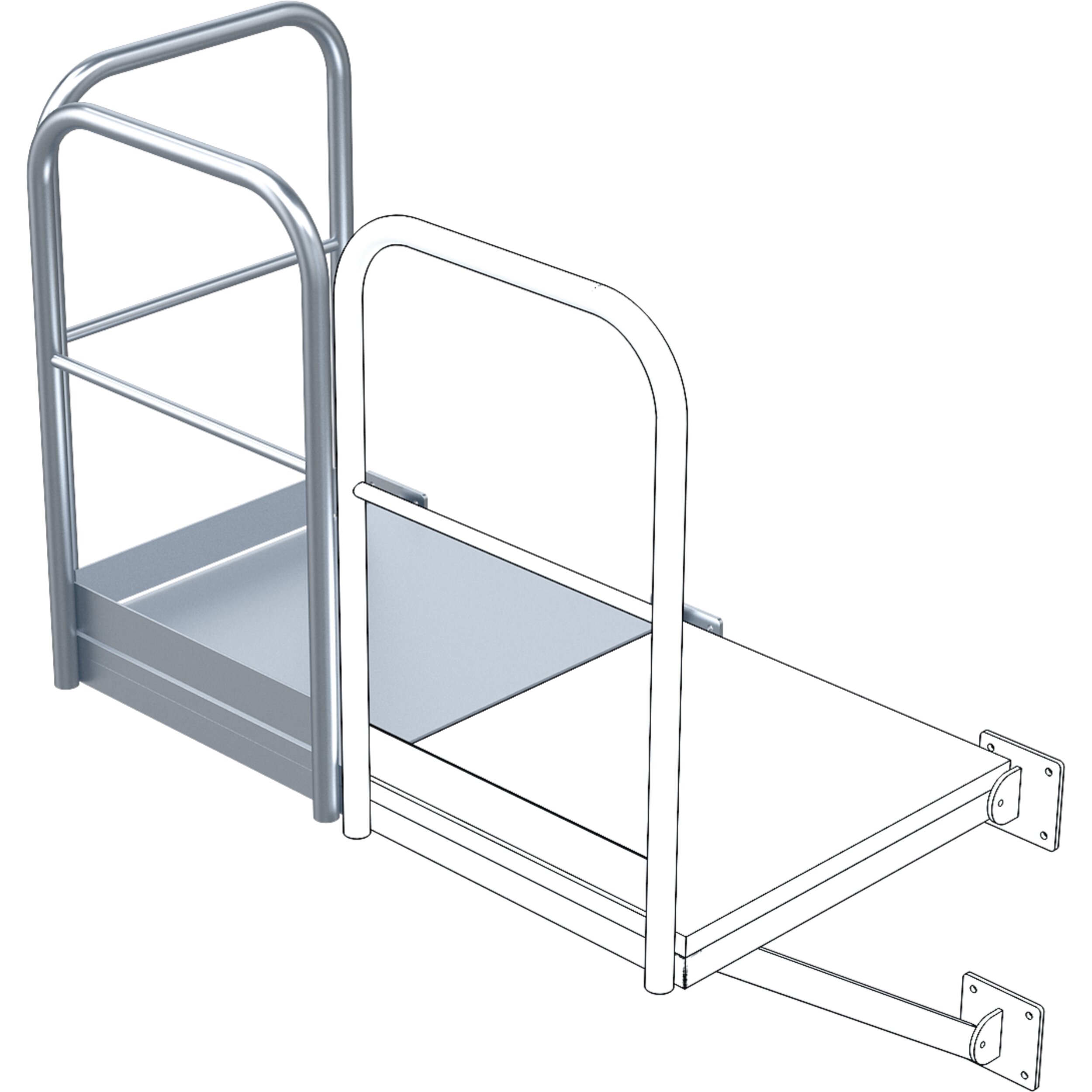

Exit platform

SKU: 43270

Details

  • Open grid surface and 2 wall brackets.
  • Railing on one side and at one end.
  • Distributed load 3.5 kN/m².
  • Concentrated load 1.5 kN.

Hints and special features

  • For side entry to / exit from the fixed ladder. Can be used to the left or right of the fixed ladder.

More Information

More Information
Material Galvanised steel
Order number 43270
Depth 860 mm
Size W x D 800mm × 860mm
Weight 75 kg
Width 800 mm

Variants

Order number Depth Material Size W x D Weight Width
43270 860 mm Galvanised steel 800mm × 860mm 75 kg 800 mm
43275 1000 mm Galvanised steel 940mm × 1.000mm 86 kg 940 mm
44270 860 mm Stainless steel 800mm × 860mm 75 kg 800 mm
44325 1000 mm Stainless steel 940mm × 1.000mm 86 kg 940 mm
