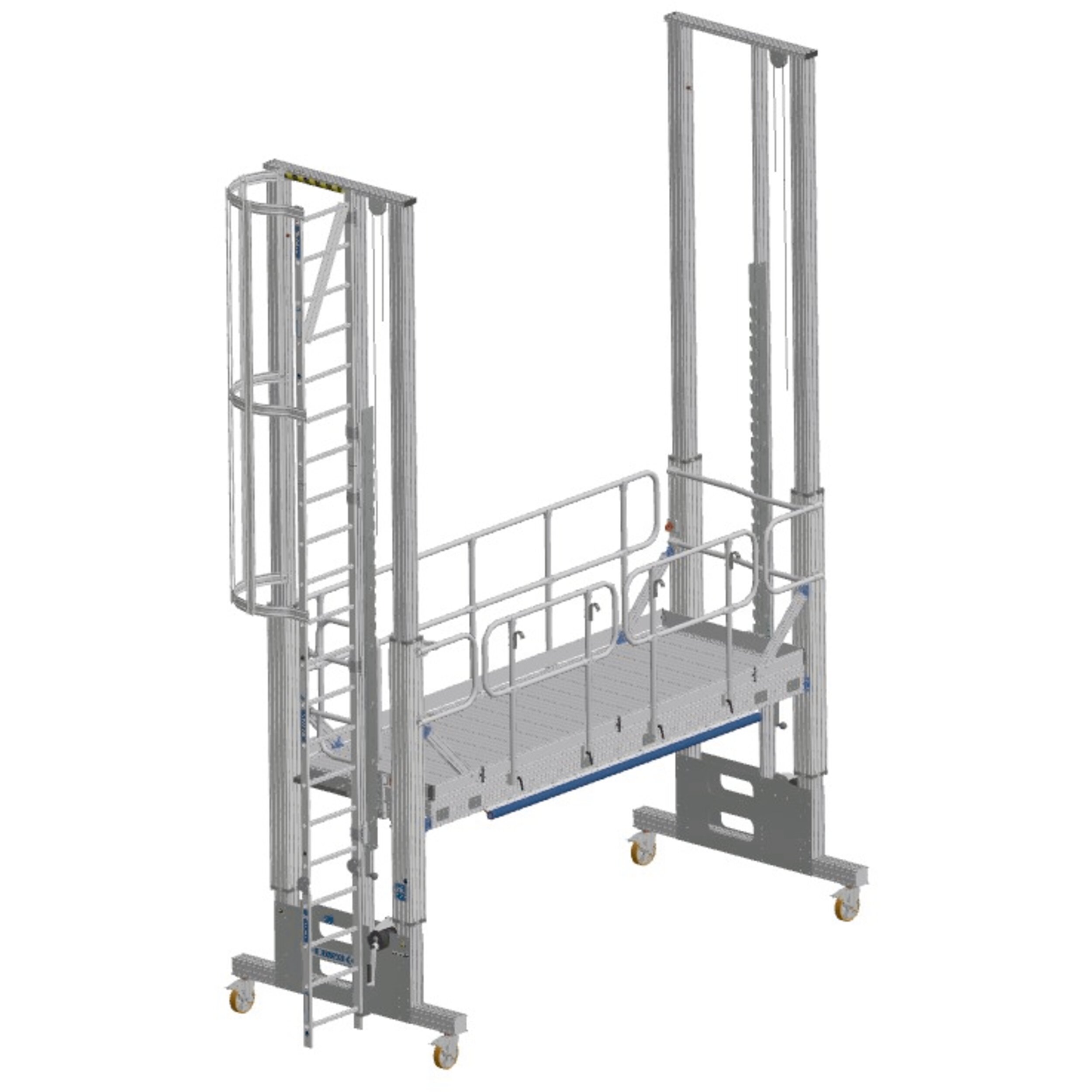

Height-adjustable work platform – extension platforms and chassis

Details

Work safely at heights.

  • Choose between a platform without an extension platform, with a fixed extension platform and with a folding extension platform. The options with additional platforms will by default have a chassis with pull-out stabilisers and height adjusters.
  • The swivel castors provide great mobility, and the additional slide-out stabilisers and levelling feet on the extension platform ensure stability.
  • The overhang on the optional extension platform (fixed or foldable) offers even more flexible access.
  • Two people can work on the platform simultaneously thanks to its generous size and high load capacity of 300 kg – the same goes for the optional extension platform.

Hints and special features

  • If the existing modular system does not meet your requirements, we can also offer you customised solutions tailored to your needs.
  • Standard applied: DIN EN ISO 14 122.

More Information

More Information
Warranty 10 years

Variants

Order number Model Platform length Platform width Standards Version Weight
40060010 L 3690 mm 1240 mm Without additional platform, with base chassis 75.4 kg
40060011 M 2890 mm 1240 mm Without additional platform, with base chassis 65.3 kg
40060013 L 3690 mm 1740 mm With additional fixed platform 500 mm, chassis with pull-out stabilisers and height adjusters 141.6 kg
40060014 M 2890 mm 1740 mm With additional fixed platform 500 mm, chassis with pull-out stabilisers and height adjusters 126.9 kg
40060016 L 3690 mm 1740 mm EN ISO 14122 With additional folding platform 500 mm, chassis with pull-out stabilisers and height adjusters 121.9 kg
40060017 M 2890 mm 1740 mm EN ISO 14122 With additional folding platform 500 mm, chassis with pull-out stabilisers and height adjusters 108.4 kg
