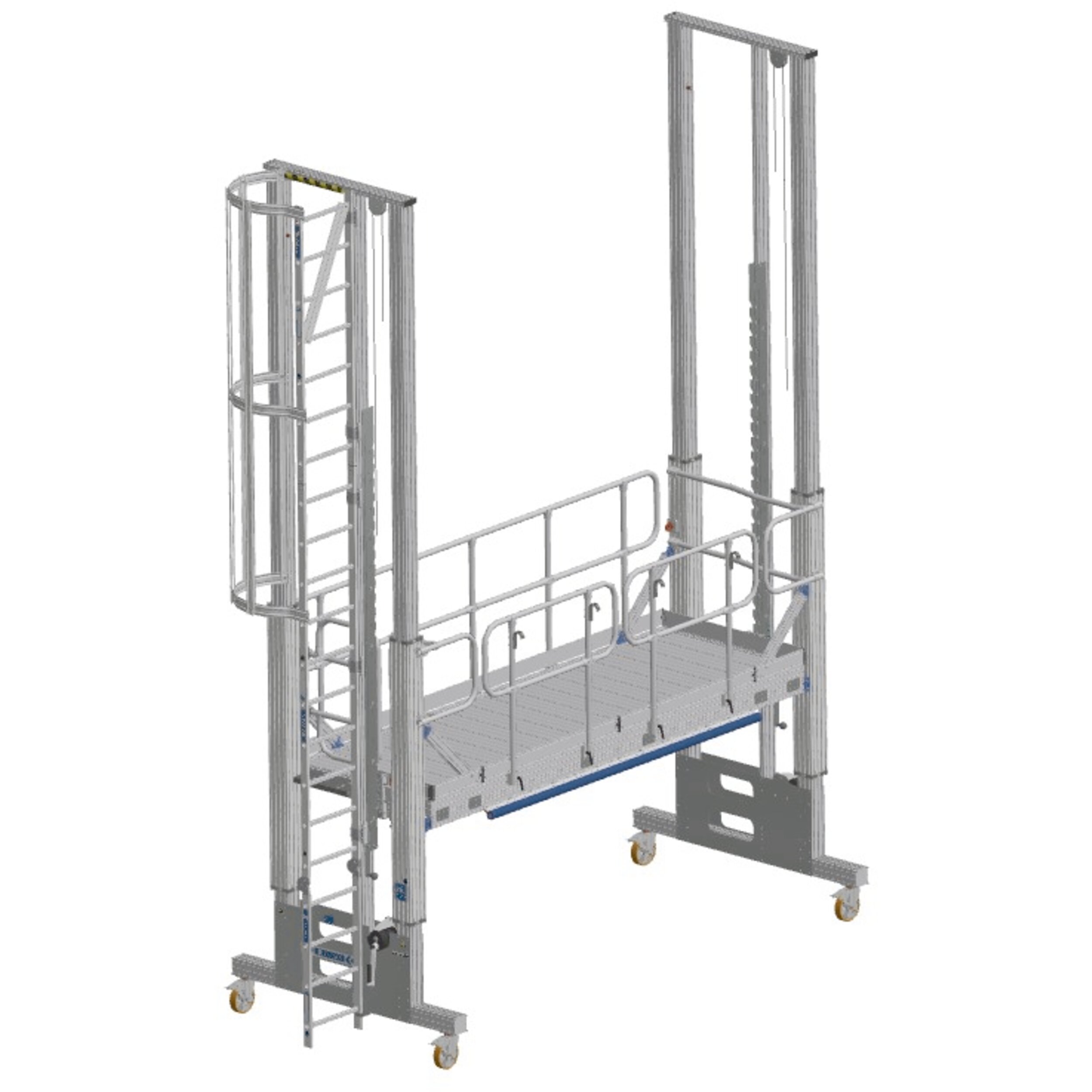

Height-adjustable work platform – extension platforms and chassis

SKU: 40060011

Details

Work safely at heights.

Choose between variants without extension platform, with fixed extension platform and with folding extension platform. The options with an additional platform will by default have a chassis with pull-out stabilisers and height adjusters.
The overhang on the optional extension platform (fixed or foldable) offers even more flexible access.
The swivel castors provide great mobility, and the additional slide-out stabilisers and levelling feet on the extension platform ensure stability.
Two people can work on the platform simultaneously thanks to its generous size and high load capacity of 300 kg – the same goes for the optional extension platform.

If the existing modular system does not meet your requirements, we can also offer you customised solutions tailored to your needs.
Standard applied: DIN EN ISO 14 122.

More Information
Warranty	10 years
Platform length	2890 mm
Order number	40060011
Version	Ohne Zusatzplattform, mit Basisfahrwerk
Platform width	1240 mm
Model	M
Platform height	-
Weight	65.3 kg

Variants

Order number	Model	Platform length	Platform width	Standards	Version	Weight
40060010	L	3690 mm	1240 mm		Without additional platform, with base chassis	75.4 kg
40060011	M	2890 mm	1240 mm		Without additional platform, with base chassis	65.3 kg
40060013	L	3690 mm	1740 mm		With additional fixed platform 500 mm, chassis with pull-out stabilisers and height adjusters	141.6 kg
40060014	M	2890 mm	1740 mm		With additional fixed platform 500 mm, chassis with pull-out stabilisers and height adjusters	126.9 kg
40060016	L	3690 mm	1740 mm	EN ISO 14122	With additional folding platform 500 mm, chassis with pull-out stabilisers and height adjusters	121.9 kg
40060017	M	2890 mm	1740 mm	EN ISO 14122	With additional folding platform 500 mm, chassis with pull-out stabilisers and height adjusters	108.4 kg
