K 470 Universal Box

SKU: 40678

Contact ZARGES Add to Compare Download Product Datasheet (PDF) Product Documents Spare parts and accessories

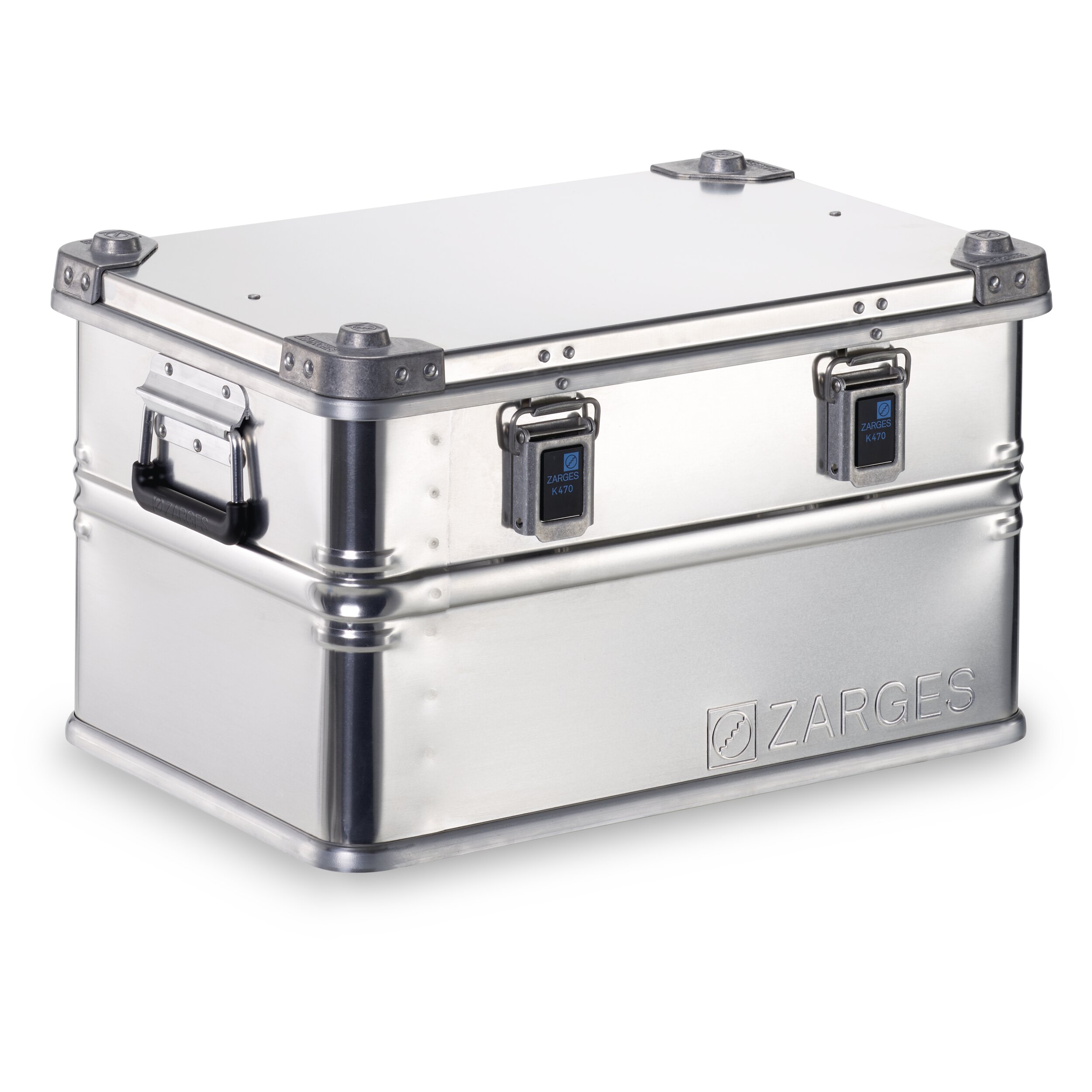

main product photo

Details

The K 470 product range offers an exceptional selection of 25 standard sizes. Their capacity ranges from 13 L to 829 L. Special sizes are also available.

  • Compact and secure storage and transport thanks to stacking corners made of cast aluminium.
  • Large, ergonomic handles and closures facilitate handling, even when the user is wearing gloves.
  • Resistant to heat and cold, tested from -54°C to +80°C.
  • A whole host of quality features ensure a long service life, including fully welded profiles, stainless-steel hinges, beading and solid rivets. All K 470 models with base dimensions of 750 x 550 mm and above are made of extra-thick 1.5 mm sheet metal to provide added stability.
  • 25 standard sizes, customised sizes on request.
  • Lid with stainless steel hinge strip, two lid straps and foamed seal all round.
  • Stacking corners made from diecast aluminium ensure safe stacking.
  • High level of stability due to 3 fully-welded aluminium profile frames.
  • UN approval for the transportation of hazardous goods possible at additional charge.
  • ZARGES Comfort handles for ergonomic handling and loads of up to 50 kg.
  • Depending on height, beading all round and corner beading for extra stability of form.
  • Snap fasteners: can be secured with a plug lock, lead seals, protection against bursting open or a padlock (max. shackle thickness 6 mm).
  • Ergonomic & durable C. fasteners for at least 20,000 operating cycles.
  • Extra thick 1.5-mm sheet metal for all K 470 containers from basic dimensions of 750 x 550 mm.

Hints and special features

  • Clearance measurement approx. 30mm (1.2") less than internal dimension (length and width). Special sizes on request.
  • IP 65 rating available at add charge.
  • Embossing available at additional cost.

More Information

More Information

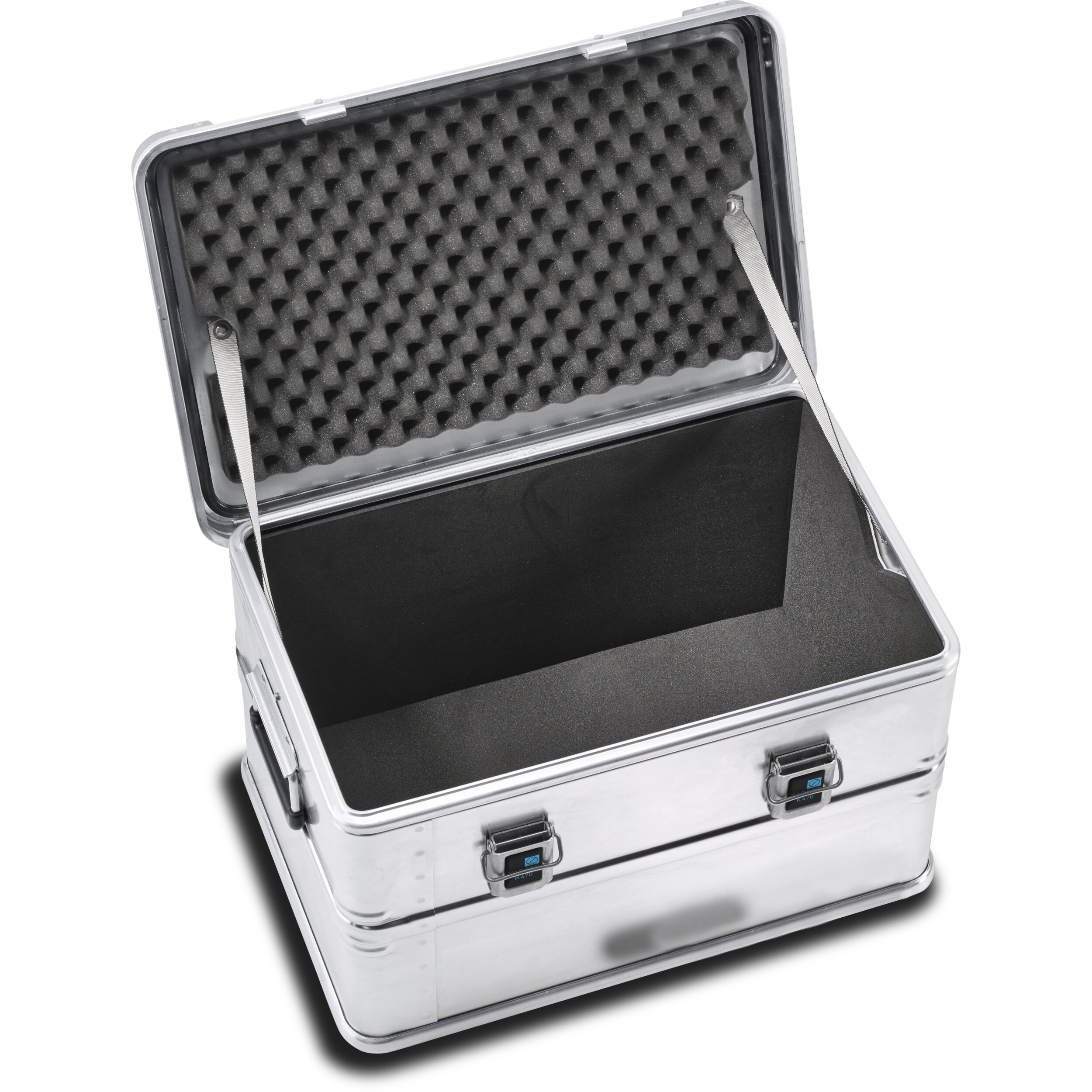

Matching foam lining 43864
Warranty 10 years
Seal foamed lid seal
Fasteners Comfort fasteners
Outside dimensions max. L x W x H 600 mm × 400 mm × 340 mm
Colour of the stacking corners Natural aluminium
Material of the stacking corners Aluminium
Stacking corners ✔
Handles Sprung drop handles
Peripheral beading ✔
Corner beading ✔
Weight 5 kg
Max. gross weight dangerous goods permission 70 kg
Volume 60 l
Material Aluminium
Internal dimensions L x W x H 550 mm × 350 mm × 310 mm

Variants

Order number Corner beading Internal dimensions L x W x H Matching foam lining Max. gross weight dangerous goods permission Outside dimensions max. L x W x H Peripheral beading Volume Weight
40835 No 350 mm × 250 mm × 150 mm 43860 26 kg 400 mm × 300 mm × 180 mm No 13 l 2.6 kg
40677 Yes 350 mm × 250 mm × 310 mm 43861 45 kg 400 mm × 300 mm × 340 mm No 27 l 3.1 kg
40810 No 550 mm × 350 mm × 150 mm 43862 60 kg 600 mm × 400 mm × 180 mm No 29 l 4.2 kg
40568 Yes 550 mm × 350 mm × 220 mm 43863 65 kg 600 mm × 400 mm × 250 mm No 42 l 4.8 kg
40678 Yes 550 mm × 350 mm × 310 mm 43864 70 kg 600 mm × 400 mm × 340 mm Yes 60 l 5 kg
40564 Yes 550 mm × 350 mm × 380 mm 43865 75 kg 600 mm × 400 mm × 410 mm Yes 73 l 5.3 kg
40849 Yes 550 mm × 550 mm × 220 mm 43866 65 kg 600 mm × 600 mm × 250 mm No 66 l 5.6 kg
40859 Yes 550 mm × 550 mm × 380 mm 43867 75 kg 600 mm × 600 mm × 410 mm Yes 115 l 6.6 kg
40836 Yes 550 mm × 550 mm × 580 mm 43868 94 kg 600 mm × 600 mm × 610 mm Yes 175 l 7.8 kg
40837 Yes 600 mm × 430 mm × 450 mm 43869 70 kg 650 mm × 480 mm × 480 mm Yes 116 l 6.5 kg
40839 Yes 600 mm × 560 mm × 440 mm 43871 83 kg 650 mm × 610 mm × 470 mm Yes 148 l 7.4 kg
40841 Yes 690 mm × 460 mm × 380 mm 43873 71 kg 740 mm × 510 mm × 410 mm Yes 121 l 6.9 kg
40842 Yes 690 mm × 640 mm × 340 mm 43874 84 kg 740 mm × 690 mm × 370 mm Yes 150 l 8 kg
40843 Yes 690 mm × 640 mm × 430 mm 43875 100 kg 740 mm × 690 mm × 460 mm Yes 190 l 8.6 kg
40565 Yes 750 mm × 550 mm × 380 mm 43877 102 kg 800 mm × 600 mm × 410 mm Yes 157 l 10 kg
40566 Yes 750 mm × 550 mm × 580 mm 43878 126 kg 800 mm × 600 mm × 610 mm Yes 239 l 12 kg
40844 Yes 780 mm × 480 mm × 520 mm 43879 103 kg 830 mm × 530 mm × 550 mm Yes 195 l 11.1 kg
40845 Yes 900 mm × 480 mm × 400 mm 43880 93 kg 950 mm × 530 mm × 430 mm Yes 173 l 11 kg
40846 Yes 900 mm × 640 mm × 450 mm 43881 115 kg 950 mm × 690 mm × 480 mm Yes 259 l 13.4 kg
40567 Yes 950 mm × 450 mm × 380 mm 43882 65 kg 1.000 mm × 500 mm × 410 mm Yes 162 l 10.9 kg
40847 No 1.150 mm × 350 mm × 150 mm 43887 50 kg 1.200 mm × 400 mm × 180 mm No 60 l 7.5 kg
40580 Yes 1.150 mm × 750 mm × 480 mm 43884 183 kg 1.200 mm × 800 mm × 510 mm Yes 414 l 20 kg
40848 Yes 1.350 mm × 400 mm × 220 mm 43888 65 kg 1.400 mm × 450 mm × 250 mm No 119 l 9.5 kg
40875 Yes 1.550 mm × 550 mm × 465 mm 43885 150 kg 1.600 mm × 600 mm × 495 mm Yes 396 l 23.5 kg
40876 Yes 1.650 mm × 750 mm × 670 mm 43886 200 kg 1.700 mm × 800 mm × 700 mm Yes 829 l 30 kg
