Meistertritt S

SKU: 41632

Contact ZARGES Add to Compare Download Product Datasheet (PDF) Product Documents Spare parts and accessories

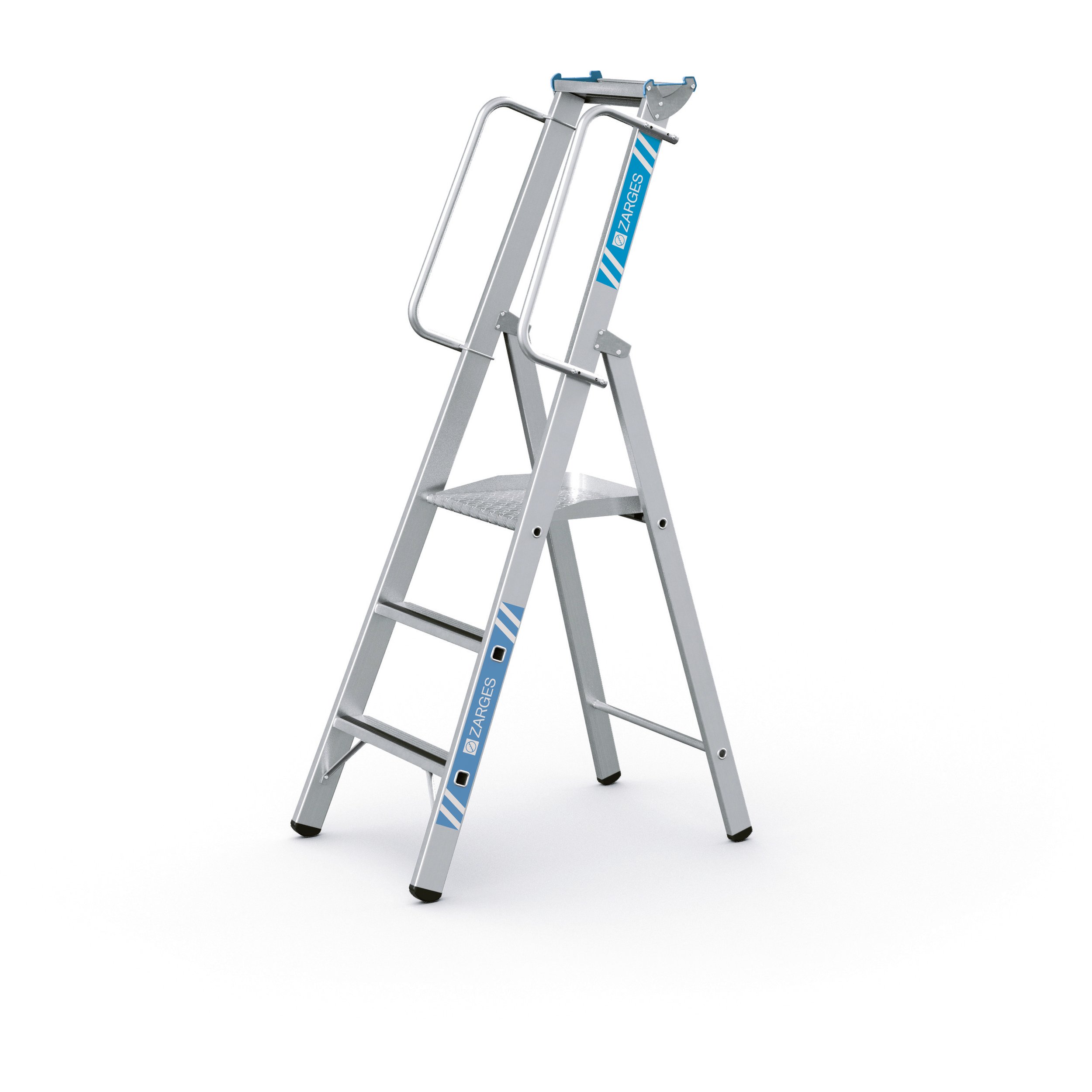

main product photo

Details

Premium model with maximum safety features, an extra-large platform, Saferstep treads, and handrails.

  • Premium model with maximum safety features, an extra-large platform, Saferstep treads, and handrails.
  • Extra-wide platform with an aluminum checker plate surface for greater freedom of movement on the ladder.
  • With two handrails as standard for safe access.
  • Treads 80 mm deep, with ZARGES Safer Step Technology.
  • Spacious aluminum storage tray with plenty of room for tools and small parts.
  • Height of the retaining bracket 1,000 mm.
  • Robust design: flanged step-rail connection with extruded aluminum profiles.

Hints and special features

  • Mobile version from 5 steps possible.
  • Complies with EN 131 Professional.

More Information

More Information
Producttype Stepladder with flanged treads
Anti splay Belt strap
Tray Aluminium
Coating natural
Connection Stile-Rung flanged
Type rung/tread Safer Step
Pitch rung/tread 265 mm
Tread depth 80 mm
Warranty 10 years
Transport dimensions 1.920 mm × 590 mm × 155 mm
Stile depth steps/back stay 73mm / 58mm
Standards EN 131 professional
Weight 9.5 kg
Stile depth 73 mm
Base 0,91 m × 0,59 m
Stile depth 58 mm
Platform width 390 mm
Platform length 380 mm
Vertical ladder height 1.77 m
Number of rungs, incl. platform 3
Overall base width 0.59 m
Working height 2.8 m
Overall length 1.92 m
Platform height 0.77 m
Certification TÜV-SÜD
Load capacity max. 150 kg
Material Aluminium
Number of rungs / treads 3

Variants

Order number Anti splay Base Number of rungs, incl. platform Overall base width Overall length Platform height Transport dimensions Vertical ladder height Weight Working height
41632 0,91 m × 0,59 m 3 0.59 m 1.92 m 0.77 m 1.920 mm × 590 mm × 155 mm 1.77 m 9.5 kg 2.8 m
41633 1,08 m × 0,62 m 4 0.62 m 2.2 m 1.03 m 2.200 mm × 620 mm × 155 mm 2.03 m 10.7 kg 3 m
41634 Belt strap 1,26 m × 0,65 m 5 0.65 m 2.48 m 1.29 m 2.480 mm × 650 mm × 155 mm 2.29 m 12.1 kg 3.3 m
40477 Belt strap 1,43 m × 0,68 m 6 0.68 m 2.75 m 1.55 m 2.750 mm × 680 mm × 155 mm 2.55 m 13.8 kg 3.55 m
40478 Belt strap 1,76 m × 0,74 m 8 0.74 m 3.32 m 2.07 m 3.320 mm × 740 mm × 155 mm 3.07 m 16.7 kg 4.1 m
40479 Belt strap 2,11 m × 0,8 m 10 0.8 m 3.88 m 2.59 m approx. 3.880 mm × 800 mm × 155 mm 3.59 m 20.3 kg 4.6 m
41635 Belt strap 2,46 m × 0,86 m 12 0.86 m 4.44 m 3.11 m 4.440 mm × 860 mm × 155 mm 4.11 m 23.3 kg 5.1 m
