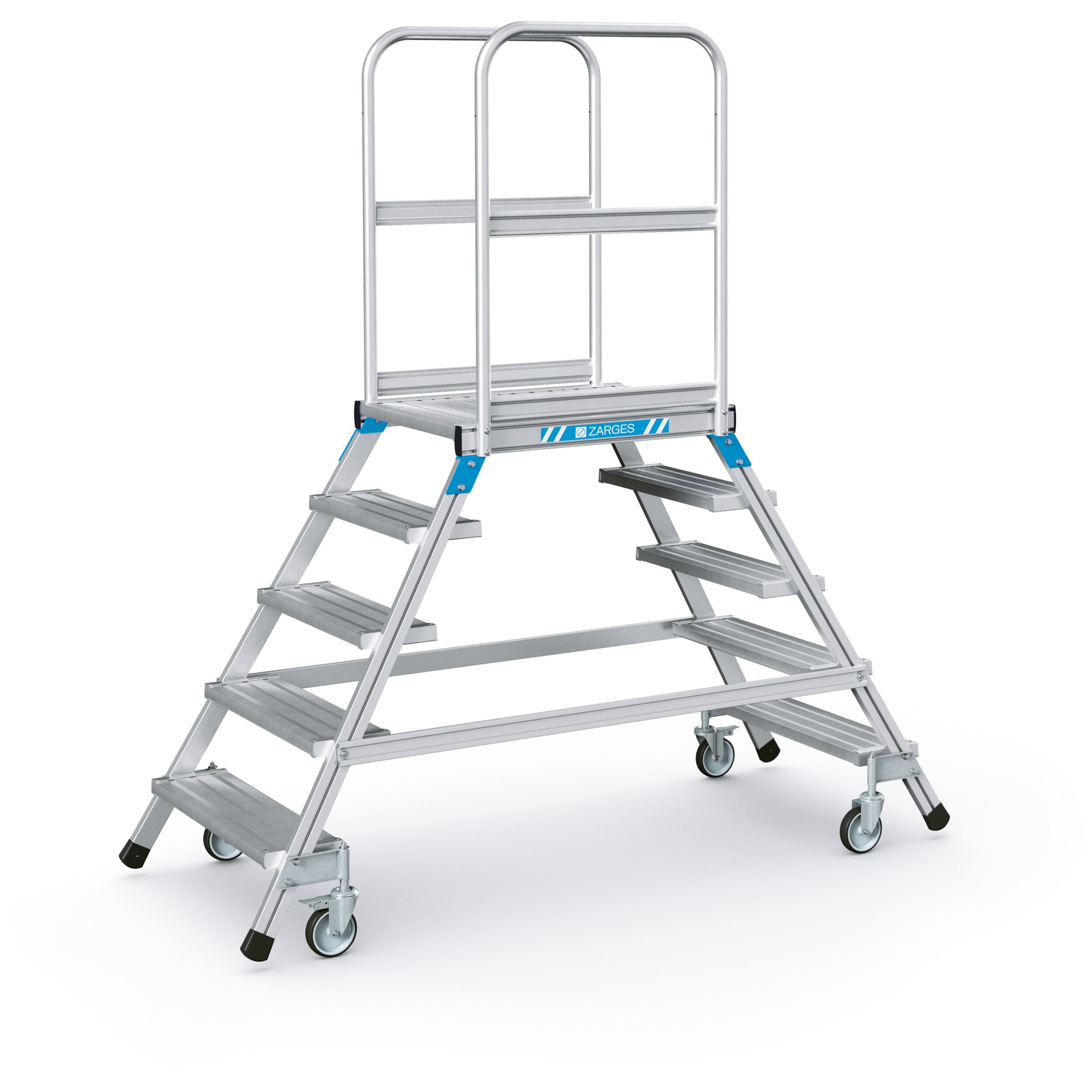

Mobile access steps with platform, double-sided access, with light-alloy treads and platform

Details

Maximum flexibility while ascending and descending, larger working area on the treads and four sprung castors for a high degree of mobility and stability.

  • Maximum flexibility while ascending and descending, larger working area on the treads and four sprung castors for a high degree of mobility and stability.
  • Quick and easy assembly thanks to the new connecting elements.
  • Mobile and ready for operation in no time with four sprung swivel castors (two of each with brakes).
  • Maximum safety through double-sided platform railing at a height of 1.00 m.
  • Comfortable ascent through treads with a depth of 200 mm.
  • Spacious platform, 600 x 800 mm.
  • Maximum loading capacity 150 kg.

Hints and special features

  • Double-sided handrail in accordance with EN 131-7 on access optional.
  • Complies with EN 131-7

More Information

More Information
Material Aluminium
Coating natural
Connection Stile-Rung welded
Type rung/tread serrated
Pitch rung/tread 240 mm
Tread depth 200 mm
Guardrail height 1000 mm
Warranty 10 years
Standards EN 131-7
Platform width 600 mm
Platform length 800 mm
Load capacity max. 150 kg

Variants

Order number Base Number of rungs, incl. platform Number of treads Platform height Transport dimensions Weight Working height
41981 0,77 m × 1,51 m 2 × 3 3 0.72 m 1.300 mm × 820 mm × 470 mm 31.2 kg 2.7 m
41982 0,82 m × 1,79 m 2 × 4 4 0.96 m 1.980 mm × 880 mm × 300 mm 36 kg 2.95 m
41983 0,87 m × 2,06 m 2 × 5 5 1.2 m 1.850 mm × 940 mm × 440 mm 41 kg 3.2 m
41984 0,93 m × 2,34 m 2 × 6 6 1.44 m 2.200 mm × 1.020 mm × 410 mm 46.2 kg 3.45 m
41985 0,98 m × 2,62 m 2 × 7 7 1.68 m 2.250 mm × 1.060 mm × 410 mm 51.7 kg 3.7 m
41986 1,03 m × 2,9 m 2 × 8 8 1.92 m 2.820 mm × 1.120 mm × 410 mm 57.5 kg 3.9 m
