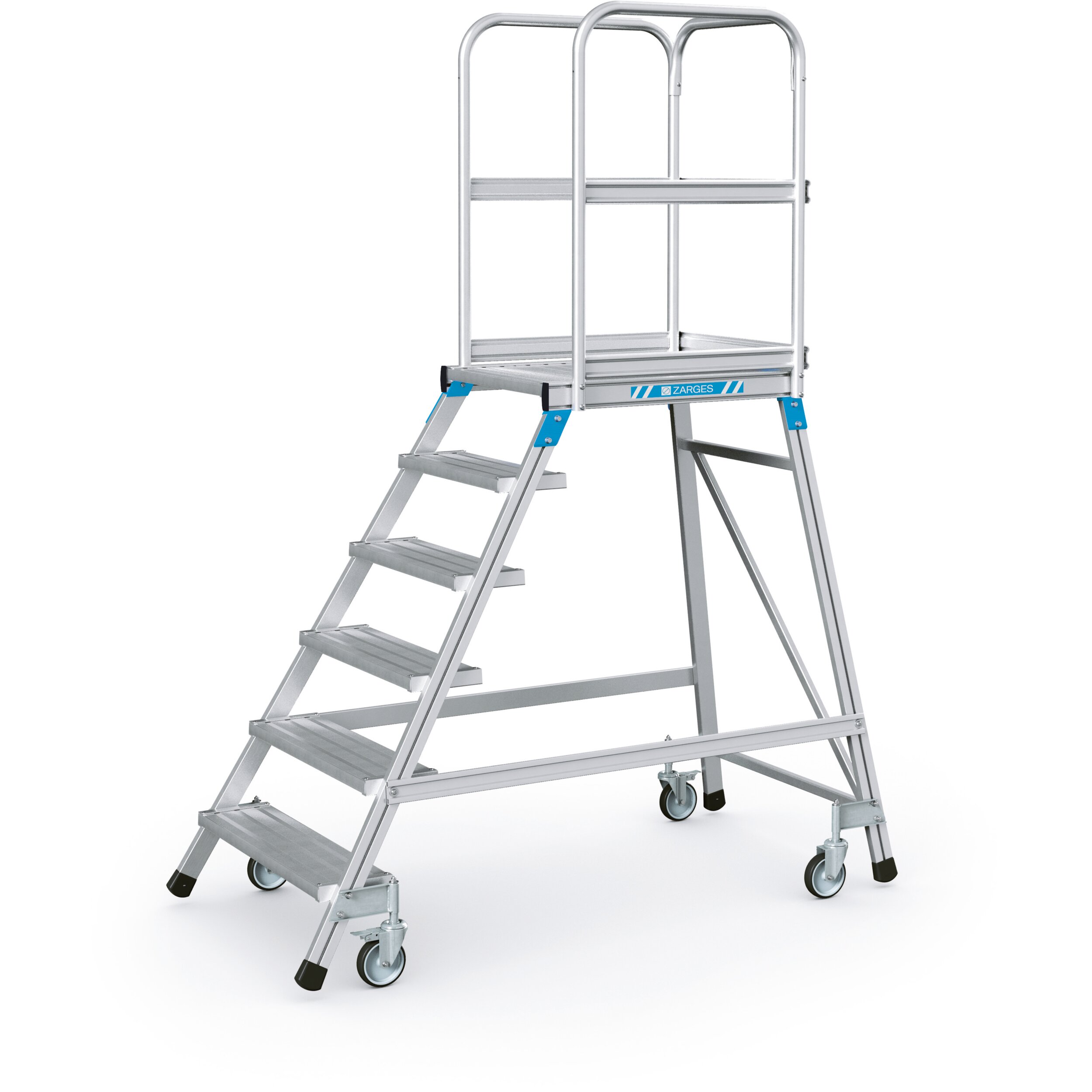

Mobile access steps with platform, single-sided access, with light-alloy treads and platform

SKU: 41974

Details

Can be released safely and quickly for flexibility while working: comfortable ascent, four sprung castors for stability and easy handling.

  • Can be released safely and quickly for flexibility while working: comfortable ascent, four sprung castors for stability and easy handling.
  • Quick and easy assembly thanks to the new connecting elements.
  • Mobile and ready for operation in no time with four sprung swivel castors (two of each with brakes).
  • Maximum safety through platform railing at a height of 1.00 m on three sides.
  • Comfortable ascent through treads with a depth of 200 mm.
  • Spacious platform, 600 x 800 mm.
  • Maximum loading capacity 150 kg.

Hints and special features

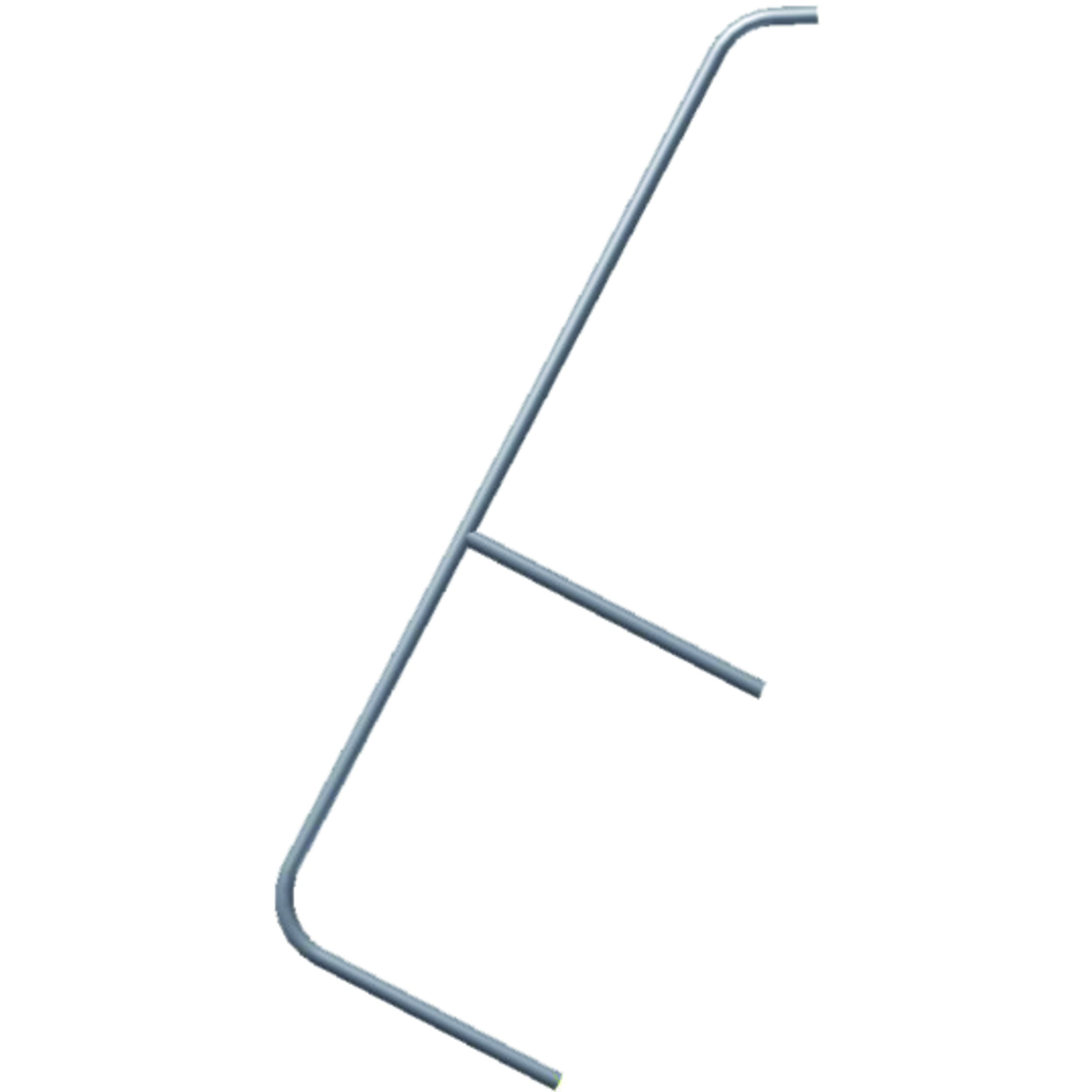

  • Double-sided handrail in accordance with EN 131-7 on access optional.
  • For models prior to 2014, observe assembly instructions for sprung castors
  • Complies with EN 131-7

More Information

More Information
Material Aluminium
Standards EN 131-7
Warranty 10 years
Platform length 800 mm
Platform height 1.44 m
Load capacity max. 150 kg
Guardrail height 1000 m
Platform width 600 mm
Base 0,93 m × 1,81 m
Coating natural
Connection Stile-Rung welded
Tread depth 200 mm
Transport dimensions 1.850 mm × 1.000 mm × 330 mm
Working height 3.45 m
Number of rungs, incl. platform 6
Pitch rung/tread 240 mm
Type rung/tread serrated
Weight 38.4 kg
Length base area 0.93 m
Width base area 1.81 m

Variants

Order number Base Number of rungs, incl. platform Platform height Transport dimensions Weight Working height
41971 0,77 m × 1,27 m 3 0.72 m 1.180 mm × 820 mm × 330 mm 28.5 kg 2.7 m
41972 0,82 m × 1,45 m 4 0.96 m 1.350 mm × 820 mm × 400 mm 31.8 kg 2.95 m
41973 0,87 m × 1,63 m 5 1.2 m 1.380 mm × 950 mm × 420 mm 35 kg 3.2 m
41974 0,93 m × 1,81 m 6 1.44 m 1.850 mm × 1.000 mm × 330 mm 38.4 kg 3.45 m
41975 0,98 m × 1,99 m 7 1.68 m 1.920 mm × 1.060 mm × 410 mm 41.8 kg 3.7 m
41976 1,03 m × 2,17 m 8 1.92 m 2.220 mm × 1.030 mm × 360 mm 45.6 kg 3.9 m
