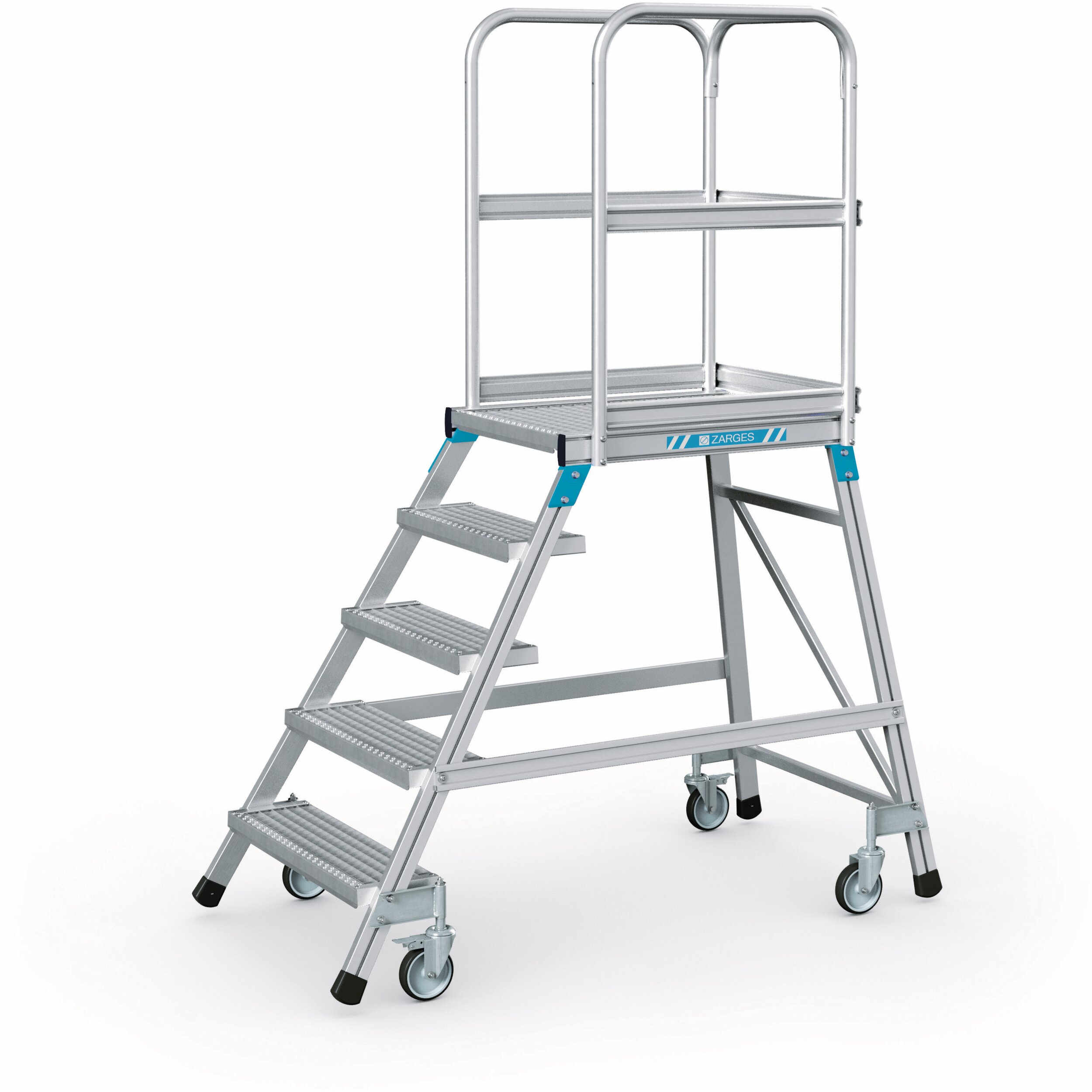

Mobile access steps with platform, single-sided access, with steel open-grid treads and platform

Details

The flexible access solution with open-grid treads for improved non-slip performance in wet-room applications.

  • Quick and easy assembly thanks to the new connecting elements.
  • Comfortable ascent through treads with a depth of 200 mm.
  • Spacious platform, 600 x 800 mm.

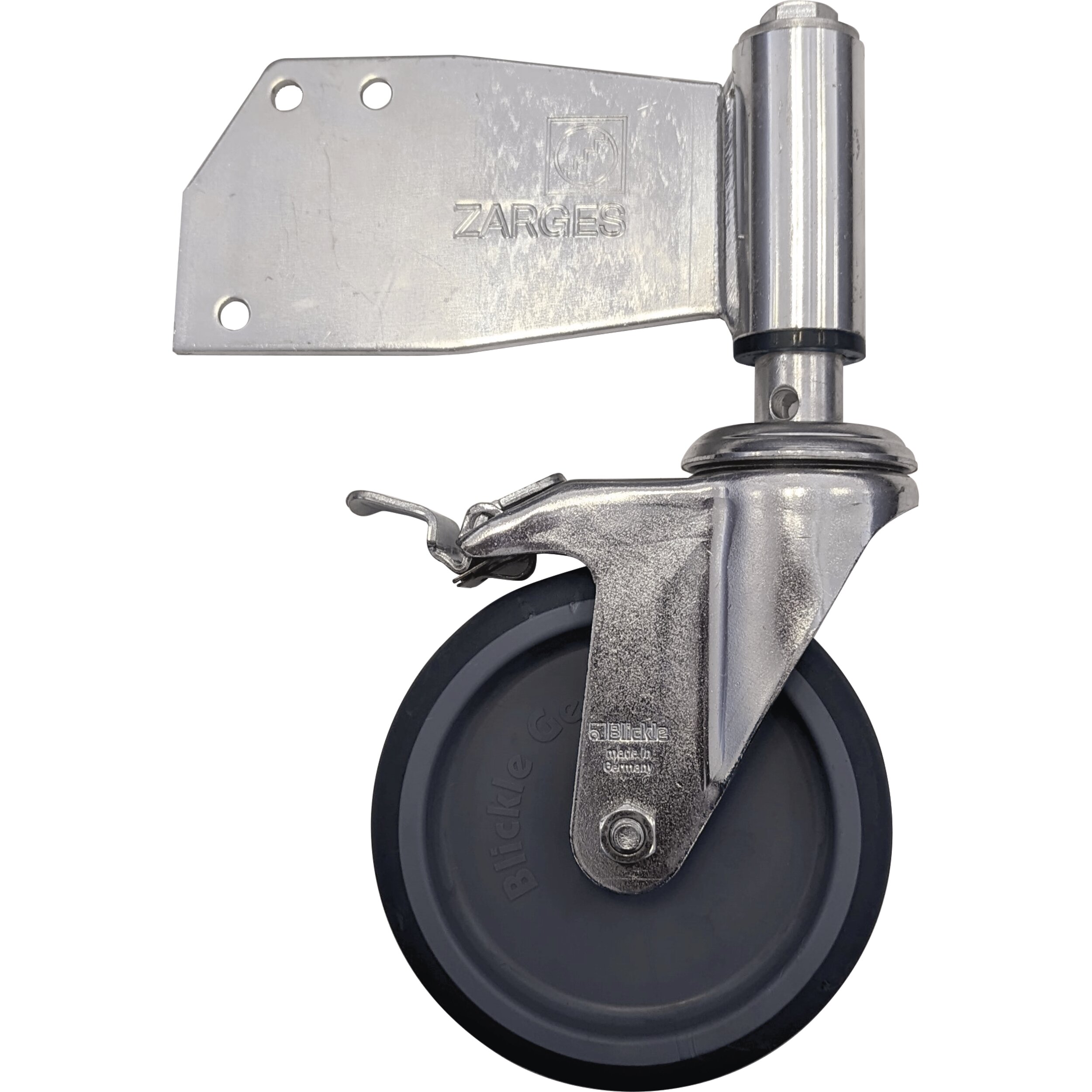

  • Mobile and ready for operation in no time with four sprung swivel castors (two of each with brakes).

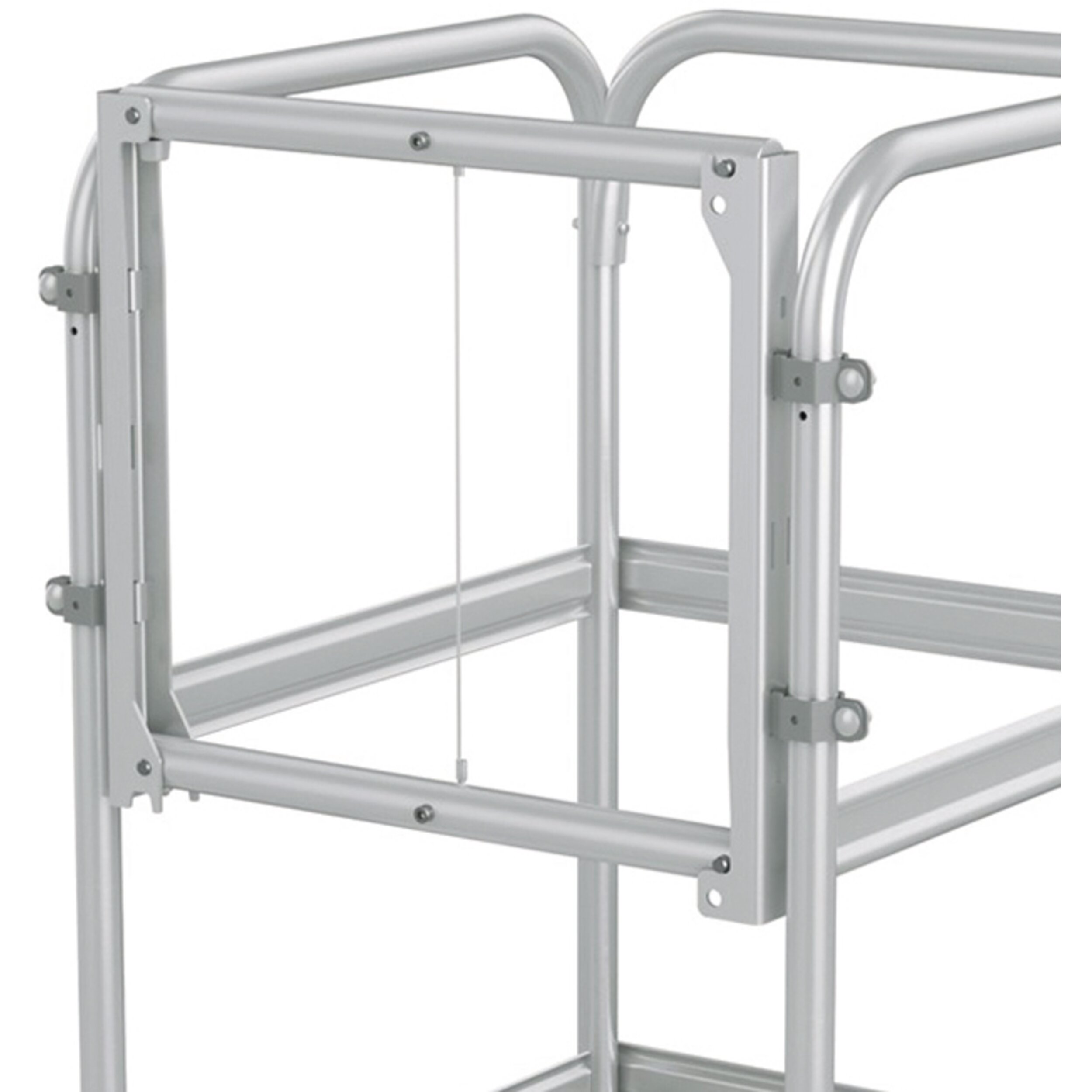

  • Maximum safety through platform railing at a height of 1.00 m on three sides.
  • Maximum loading capacity 150 kg.

Hints and special features

  • Double-sided handrail in accordance with EN 131-7 on access optional.
  • Complies with EN 131-7

More Information

More Information
Pitch rung/tread 240 mm
Platform width 600 mm
Type rung/tread serrated
Load max. 150 kg
Tread depth 200 mm
Connection Stile-Rung welded
Coating natural
Length as work platform 800 mm
Material Aluminium

Variants

Order number Base Number of rungs, incl. platform Platform height Transport dimensions Weight Working height
41951 0,77 m × 1,27 m 3 0.72 m 1.150 mm × 780 mm × 350 mm 41.5 kg 1.7 m
41952 0,82 m × 1,45 m 4 0.96 m 1.350 mm × 830 mm × 410 mm 47.5 kg 2.95 m
41953 0,87 m × 1,63 m 5 1.2 m 1.500 mm × 890 mm × 410 mm 53.6 kg 3.2 m
41954 0,93 m × 1,81 m 6 1.44 m 1.820 mm × 930 mm × 350 mm 59.7 kg 3.45 m
41955 0,98 m × 1,99 m 7 1.68 m 1.920 mm × 990 mm × 350 mm 66 kg 3.7 m
41956 1,03 m × 2,17 m 8 1.92 m 2.220 mm × 1.130 mm × 350 mm 72.9 kg 3.9 m
