Mobile platform steps with ZARGES Ergo Stop

SKU: 40255034

Details

Mobile access or work platforms that offer comfortable ascent. Ideal for work over long periods, even with tools and frequent changes of working position. Large-area platform with guardrail for safe and ergonomic working at heights.

  • Different angles of inclination, 45° for comfortable access, 60° for confined spaces.
  • Selection of tread widths 600 mm, 800 mm or 1000 mm.
  • Serrated aluminium (R10) step and platform surfaces as standard. Also available as steel open grid (R12) and steel perforated plate (R13) for extra non-slip properties.
  • Individually adjustable platform lengths.
  • Platform steps instantly ready for use due to an innovative brake system.
  • Chassis available in a non-static version as an option.

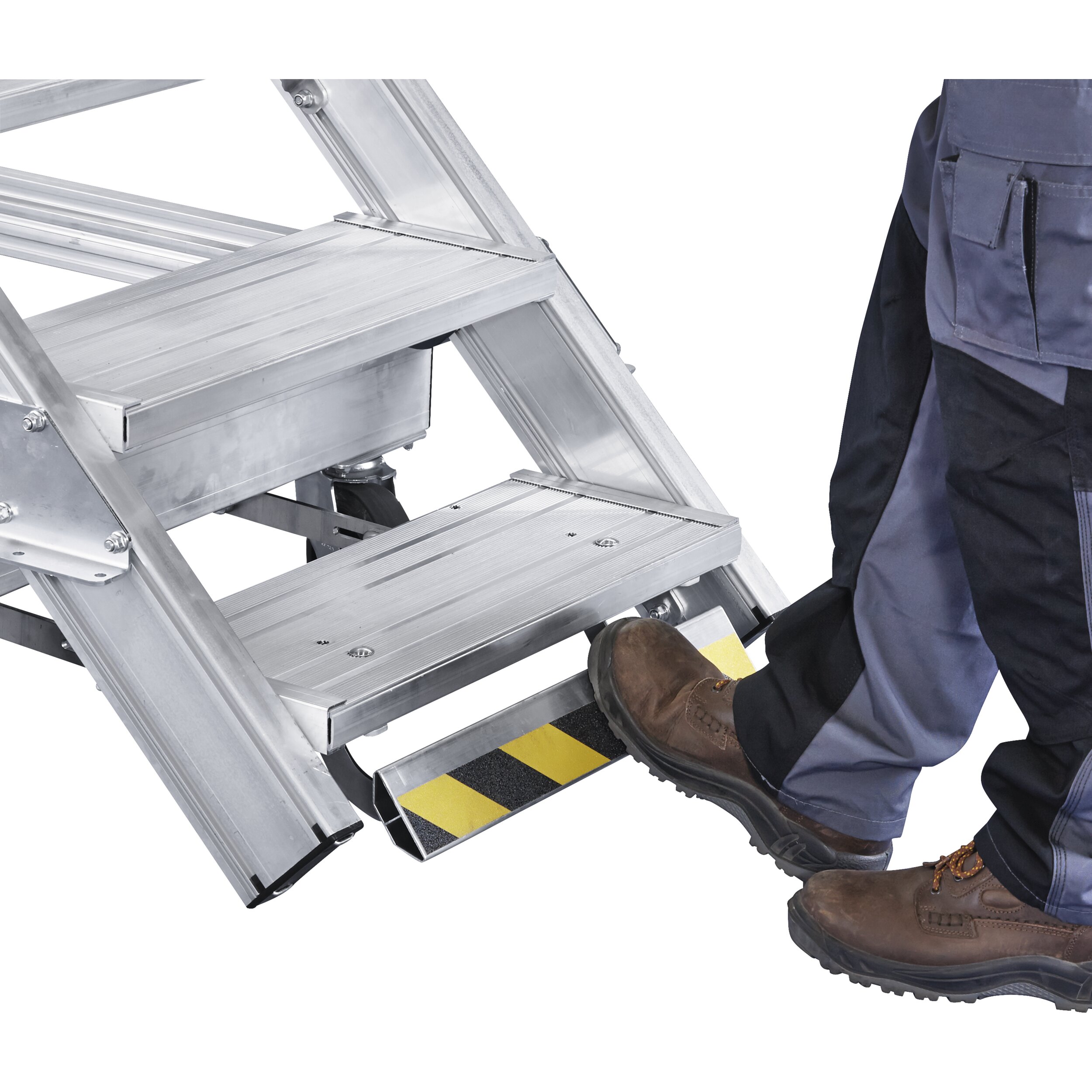

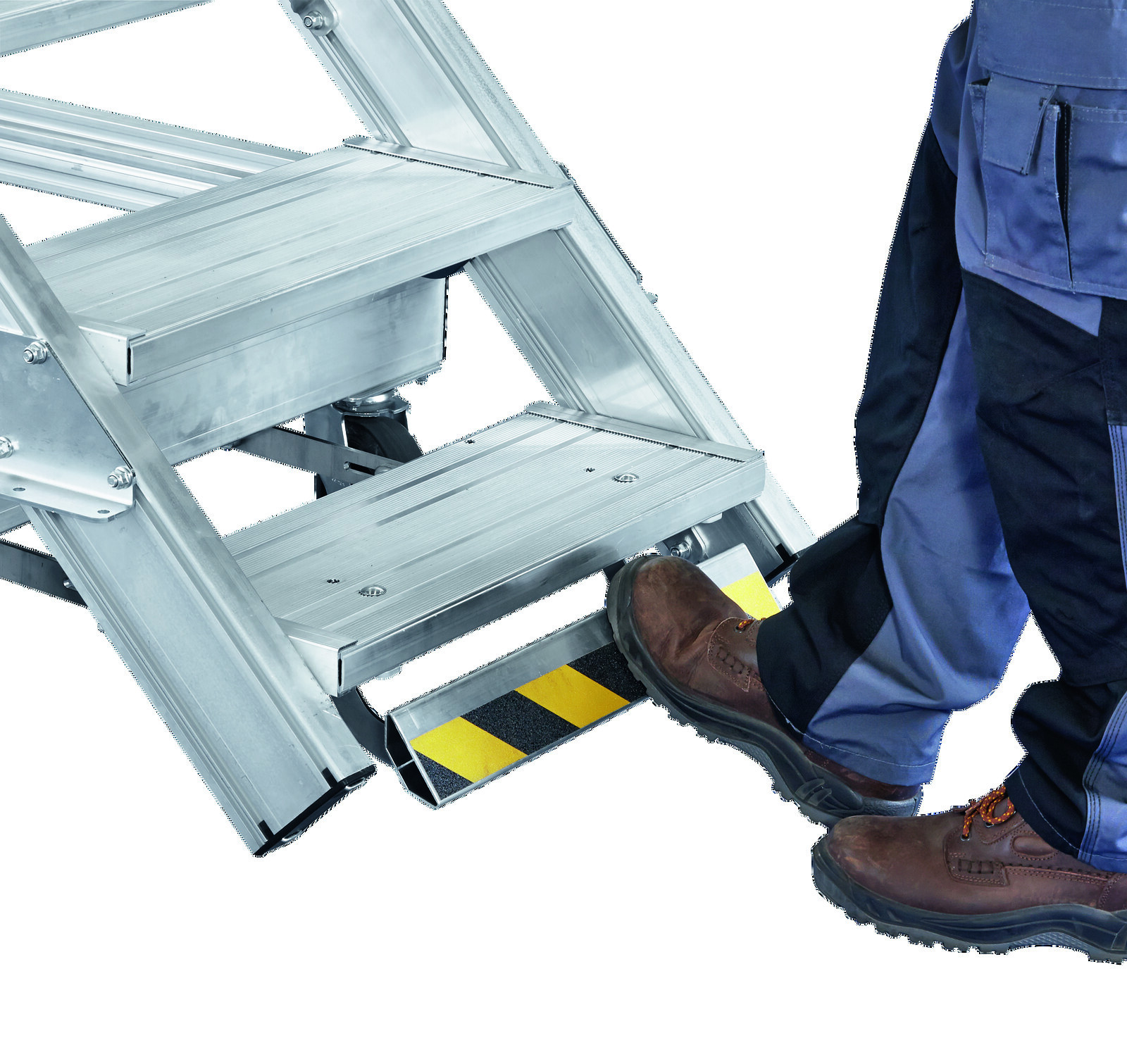

  • ZARGES Ergo Stop - all four castors can be braked conveniently using the footpedal on the flight of steps.
  • Individual guardrail configuration on the platform, optionally with swing door or pole barrier.
  • Maximum flexibility with optional handrails and guardrails which can be removed without tools.
  • Quick and simple assembly with the ZARGES connection system with a high level of pre-assembly.

Hints and special features

  • We recommend equipping the product in accordance with the German Equipment and Product Safety Act (ProdSG) with two-sided handrails and, for steps with platforms or maintenance platforms, all-round fall protection (e.g. guardrails). If handrails or guardrails are not desired, the operator must ensure sufficient regulatory protection.
  • Standard applied: DIN EN ISO 14 122.

More Information

More Information
Standards EN ISO 14122
Warranty 10 years
Platform length 600 mm
load-capacity-step-td 150 kg
Tread width 800 mm
Load capacity max. 300 kg
Vertical height 1070 mm
Inclination 45 °
Number of treads 5
Overall span 1698 mm
Chassis width 1020 mm

Variants

Order number Chassis width Inclination Number of treads Overall span Tread width Vertical height
40255014 1020 mm 45 ° 5 1698 mm 600 mm 1070 mm
40255016 1620 mm 45 ° 7 2128 mm 600 mm 1500 mm
40255018 1620 mm 45 ° 9 2558 mm 600 mm 1930 mm
40255020 1220 mm 45 ° 11 3017 mm 600 mm 2360 mm
40255022 1220 mm 45 ° 12 3447 mm 600 mm 2790 mm
40255024 1220 mm 45 ° 14 3877 mm 600 mm 3220 mm
40255026 1220 mm 45 ° 16 4307 mm 600 mm 3650 mm
40255028 1420 mm 45 ° 18 4737 mm 600 mm 4080 mm
40255030 1420 mm 45 ° 20 5167 mm 600 mm 4510 mm
40255034 1020 mm 45 ° 5 1698 mm 800 mm 1070 mm
40255036 1220 mm 45 ° 7 2128 mm 800 mm 1500 mm
40255038 1220 mm 45 ° 9 2558 mm 800 mm 1930 mm
40255040 1220 mm 45 ° 11 3017 mm 800 mm 2360 mm
40255042 1220 mm 45 ° 12 3447 mm 800 mm 2790 mm
40255044 1420 mm 45 ° 14 3877 mm 800 mm 3220 mm
40255046 1420 mm 45 ° 16 4307 mm 800 mm 3650 mm
40255048 1420 mm 45 ° 18 4737 mm 800 mm 4080 mm
40255050 1620 mm 45 ° 20 5167 mm 800 mm 4510 mm
40255054 1420 mm 45 ° 5 1698 mm 1000 mm 1070 mm
40255056 1420 mm 45 ° 7 2128 mm 1000 mm 1500 mm
40255058 1420 mm 45 ° 9 2558 mm 1000 mm 1930 mm
40255060 1420 mm 45 ° 11 3017 mm 1000 mm 2360 mm
40255062 1420 mm 45 ° 12 3447 mm 1000 mm 2790 mm
40255064 1420 mm 45 ° 14 3877 mm 1000 mm 3220 mm
40255066 1420 mm 45 ° 16 4307 mm 1000 mm 3650 mm
40255068 1420 mm 45 ° 18 4737 mm 1000 mm 4080 mm
40255070 1620 mm 45 ° 20 5167 mm 1000 mm 4510 mm
40255074 1220 mm 60 ° 5 1453 mm 600 mm 1250 mm
40255076 1420 mm 60 ° 7 1707 mm 600 mm 1750 mm
40255078 1820 mm 60 ° 9 1996 mm 600 mm 2250 mm
40255080 1620 mm 60 ° 11 2285 mm 600 mm 2750 mm
40255082 1620 mm 60 ° 13 2607 mm 600 mm 3250 mm
40255084 1620 mm 60 ° 15 2896 mm 600 mm 3750 mm
40255086 1620 mm 60 ° 17 3185 mm 600 mm 4250 mm
40255094 1220 mm 60 ° 5 1453 mm 800 mm 1250 mm
40255096 1220 mm 60 ° 7 1707 mm 800 mm 1750 mm
40255098 1620 mm 60 ° 9 1996 mm 800 mm 2250 mm
40255100 1420 mm 60 ° 11 2285 mm 800 mm 2750 mm
40255102 1420 mm 60 ° 12 2607 mm 800 mm 3250 mm
40255104 1420 mm 60 ° 15 2896 mm 800 mm 3750 mm
40255106 1620 mm 60 ° 17 3185 mm 800 mm 4250 mm
40255114 1420 mm 60 ° 5 1453 mm 1000 mm 1250 mm
40255116 1420 mm 60 ° 7 1707 mm 1000 mm 1750 mm
40255118 1420 mm 60 ° 9 1820 mm 1000 mm 2250 mm
40255120 1420 mm 60 ° 11 2285 mm 1000 mm 2750 mm
40255122 1420 mm 60 ° 13 2607 mm 1000 mm 3250 mm
40255124 1620 mm 60 ° 14 3009 mm 1000 mm 3750 mm
40255126 1620 mm 60 ° 17 3298 mm 1000 mm 4250 mm
