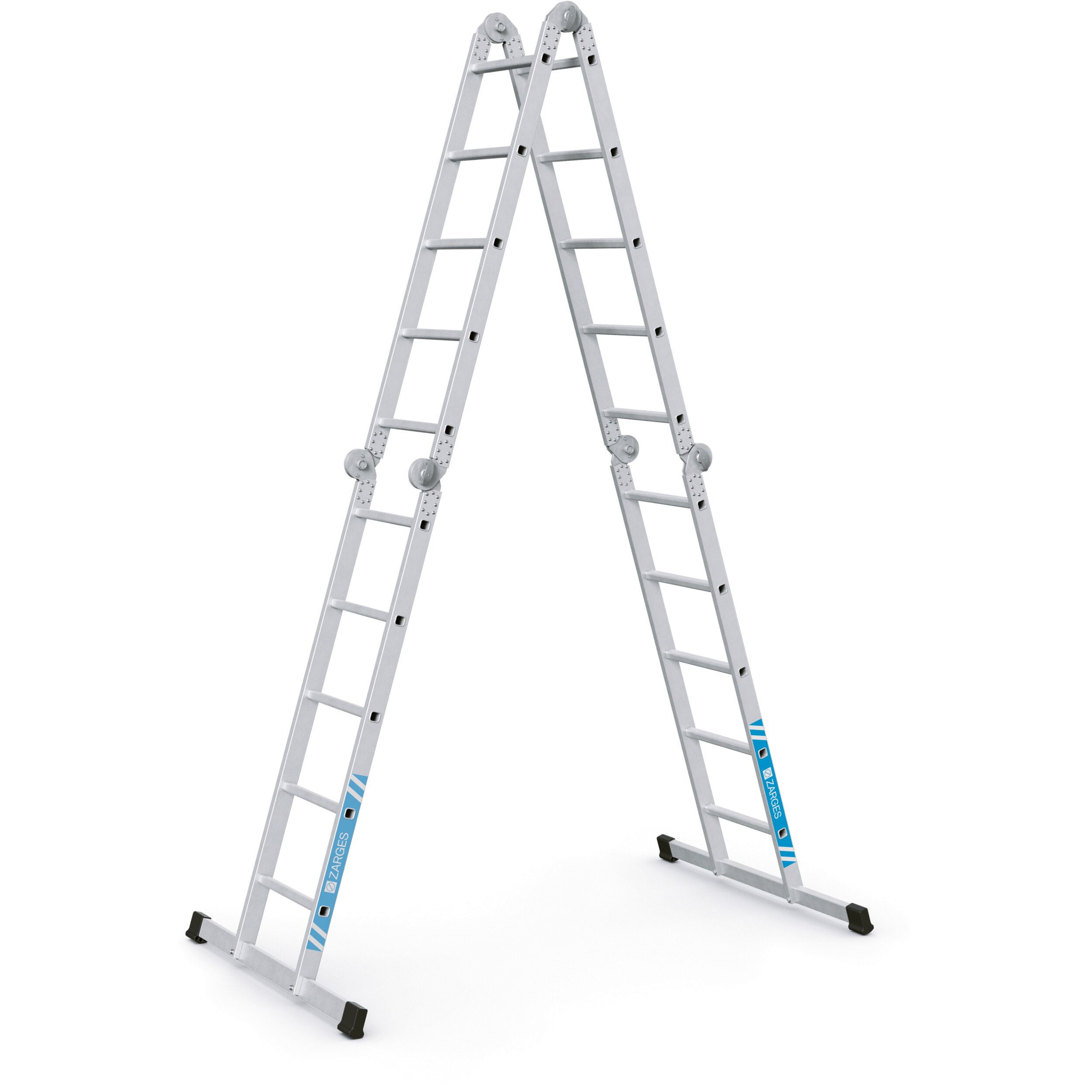

Multimax M

SKU: 41689

Details

Versatile ladder with up to four functions which folds to extremely small dimensions for transport.

  • Versatile ladder with up to four functions which folds to extremely small dimensions for transport.
  • Easy-to-use, automatically engaging aluminium safety hinge.
  • Order no. 41610 and 41611 with a foldable wooden board for use as a work platform.
  • Ladder width: 420 mm.
  • Compact for transport, does not take up a lot of space when folded.
  • High strength, non-twist rung/stile connections.
  • Extra-wide crosspiece.

Hints and special features

  • Cannot be used as a work trestle and single ladder with wall support.

More Information

More Information
Material Aluminium
Warranty 10 years
Length 1.56 m
Load capacity max. 150 kg
Coating natural
Connection Stile-Rung flanged
Tread depth 30 mm
Dimensions, folded Missing translation
Transport dimensions 1.560 mm × 420 mm × 280 mm
Working height 6.55 m
Length as lean-to ladder 5.85 m
Length as stepladder 2.84 m
Number of rungs 5
Number of rungs 4 × 5
Pitch rung/tread 265 mm
Producttype Flanged multipurpose ladder, 4-section
Type rung/tread serrated
Weight 20 kg
Overall base width 1.1 m
Width 1.1 m
Stile depth 59 mm

Variants

Order number Length as lean-to ladder Length as stepladder Length as work platform Number of rungs Number of rungs Overall base width Stile depth Transport dimensions Weight Working height
41610 3.65 m 1.76 m 1.4 m 3 4 × 3 0.8 m 58 mm 1.000 mm × 420 mm × 280 mm 18.2 kg 4.45 m
41611 4.16 m 2 m 1.96 m 3 2 × 3 + 2 × 4 0.9 m 58 mm 1.210 mm × 420 mm × 280 mm 20.6 kg 5 m
41688 4.75 m 2.29 m 4 4 × 4 0.9 m 58 mm 1.250 mm × 420 mm × 280 mm 16 kg 5.5 m
41689 5.85 m 2.84 m 5 4 × 5 1.1 m 59 mm 1.560 mm × 420 mm × 280 mm 20 kg 6.55 m
