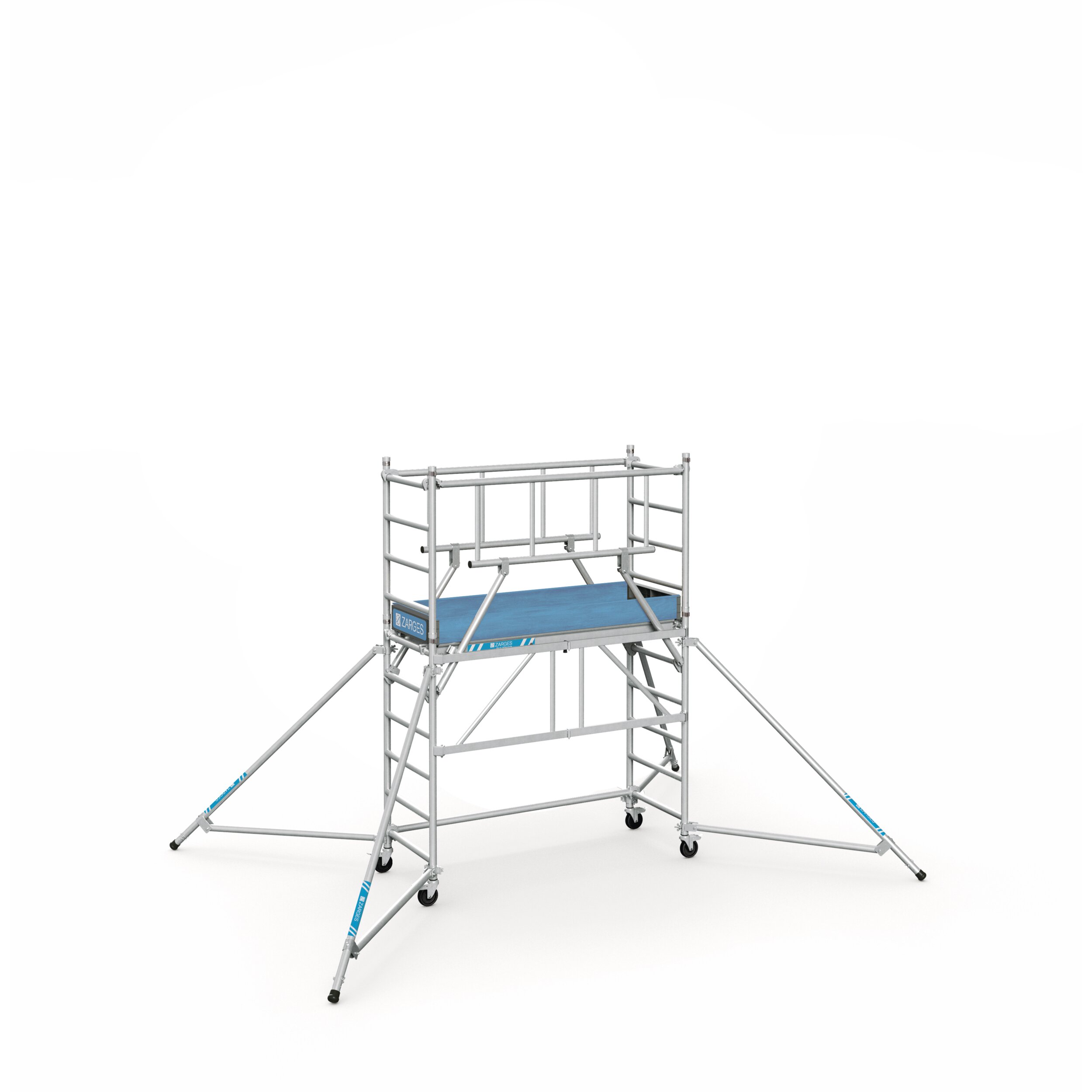

PaxTower S-PLUS 1T

SKU: 53522

Details

With advanced guardrail for extra safety and compliance with the new EN 1004:2020

  • Safer and quicker assembly and dismantling due to advanced guardrails and platforms at intervals of 2 m.
  • One-piece fold out snap-frame with simple, one-handed lock and release operation, for quick and easy set up.
  • Innovative toe board system with no clips – removes the need for toe board clips reducing the amount of loose components.
  • Smooth slot-in spigots to prevent tilting when the end frames join together.
  • Scaffolding length: 1.80 m; scaffolding width: 0.72 m.
  • Scaffolding Category 3 (load capacity of up to 200 kg/m²) according to the new EN 1004.
  • 125 mm swivel castors with brake; the castors can be fitted with castor adapters (order no. 42974) to allow for height adjustment.
  • Stile and rung diameter 45 mm.

More Information

More Information
Standards EN 1004-1
Warranty 10 years
Fits through doorways
Platform length 1.8 m
Order number 53522
Platform height 1.55 m
Platform width 0.6 m
Rung diameter 45 mm
Stile diameter 45 mm
Claw type automatic
Width scaffolding 0.72 m
Scaffolding class 3 (= 200 kg/m²)
Platform length 1.8 m
Wheel diameter 125 mm
Transport dimensions 2.150 mm × 750 mm × 700 mm
Overall height 2.65 m
Working height 3.55 m
Platform size 0,6m × 1,8m
Weight 71.4 kg

Variants

Order number Overall height Platform height Transport dimensions Weight Working height
53521 1.65 m 0.55 m 1.950 mm × 750 mm × 400 mm 38.3 kg 2.55 m
53522 2.65 m 1.55 m 2.150 mm × 750 mm × 700 mm 71.4 kg 3.55 m
53523 3.65 m 2.55 m 2.150 mm × 750 mm × 750 mm 79.5 kg 4.55 m
53524 4.65 m 3.55 m 2.150 mm × 750 mm × 950 mm 108 kg 5.55 m
53525 5.65 m 4.55 m 2.150 mm × 750 mm × 1.100 mm 114.1 kg 6.55 m
53526 6.65 m 5.55 m 2.150 mm × 750 mm × 1.300 mm 142.6 kg 7.55 m
53510 1.65 m 0.55 m 1.950 mm × 750 mm × 350 mm 29.1 kg 2.55 m
