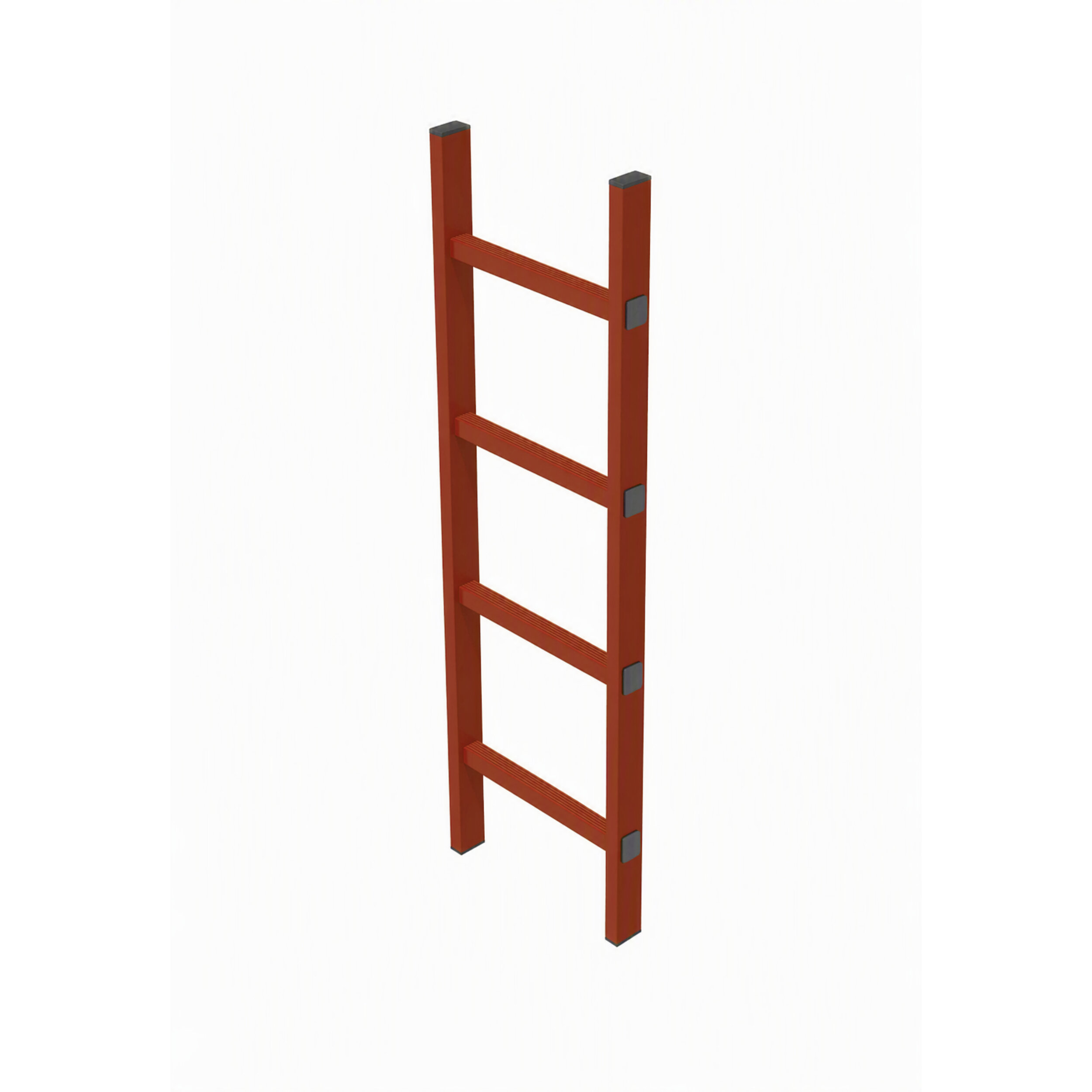

Shaft ladder, GRP, internal width 300 mm

SKU: 47361

Details

  • Internal ladder width: 300 mm.
  • Overall ladder width: 340 mm.
  • Rung spacing: 280 mm.
  • Dimensions of stile: 58 x 25 mm.
  • 30 x 30 mm non-slip plastic rungs.
  • Material: glass-fibre-reinforced plastic (GRP).

Hints and special features

  • A fall arrester device is mandatory in the case of possible falling heights in excess of 5.00 m. From an internal width of 300 mm upwards, it is attached to the stile. From an internal width of 400 mm upwards, it is attached in centred position on the rungs.
  • assembly combination for further lengths on request.

More Information

More Information
Material Glass-fibre reinforced plastic
Warranty 10 years
Order number 47361
Length 1.12 m
Tread depth 30 mm
Number of rungs 4
Pitch rung/tread 280 mm
Weight 2.9 kg
Ladder width 350 mm
Stile depth 58 mm

Variants

Order number Length Number of rungs Weight
47361 1.12 m 4 2.9 kg
47362 1.4 m 5 3.6 kg
47363 1.68 m 6 4.3 kg
47364 1.96 m 7 5 kg
47365 2.24 m 8 5.7 kg
47366 2.52 m 9 6.4 kg
47367 2.8 m 10 7.1 kg
47368 3.08 m 11 7.8 kg
47369 3.36 m 12 8.5 kg
47663 3.64 m 13 9.2 kg
47664 3.92 m 14 9.9 kg
47665 4.2 m 15 10.6 kg
