Skymaster DX

SKU: 44837

Contact ZARGES Add to Compare Download Product Datasheet (PDF) Product Documents Spare parts and accessories

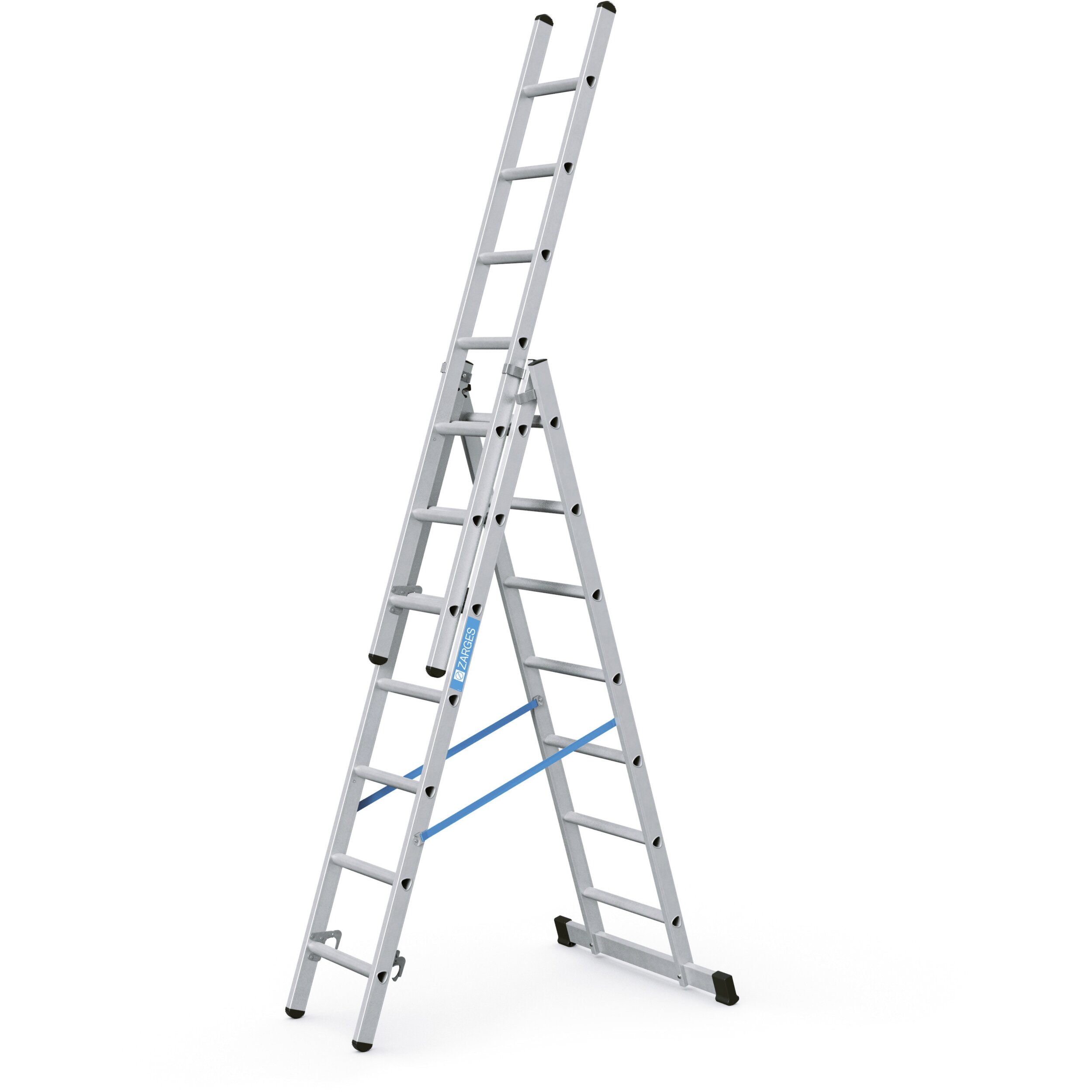

main product photo

Details

Functionality and flexibility with standard features and excellent price/performance.

  • Functionality and flexibility with standard features and excellent price/performance.
  • Upper ladder can also be used separately as single ladders for Order Nos. 44837-44840.
  • Robust extruded-section triangular rungs with step horizontal in working position.
  • Upper ladder can also be used separately as single ladders.
  • Anti-spread protection provided by high-strength polyester webbing with a sewn-in attachment tab.
  • Stiles made from extruded aluminium sections for maximum stability.
  • Replaceable 2-component plastic end caps ensure secure positioning without the risk of slipping.
  • High strength, non-twist rung/stile connections.
  • Cannot be used on stairs.

Hints and special features

  • Complies with EN 131 Professional.

More Information

More Information
Producttype Flanged multi-function ladder, 3-section
Coating natural
Connection Stile-Rung flanged
Type rung/tread serrated
Pitch rung/tread 265 mm
Tread depth 38 mm
Warranty 10 years
Transport dimensions 2.130 mm × 500 mm × 170 mm
Number of rungs 3 × 7
Standards EN 131 professional
Overall length, retracted 2.14 m
Weight 13.8 kg
Number of rungs 7
Stile depth 58 mm
Wide crosspiece 0.8 m
Working height as 3-part single ladder 5.2 m
Length as 2-part single ladder and as stepladder with push-on section 3.25 m
Ladder length as 3-part single ladder 4.4 m
Certification TÜV-SÜD
Load capacity max. 150 kg
Material Aluminium
Number ladderparts 3
Number of rungs / treads 3 × 7

Variants

Order number Ladder length as 3-part single ladder Length as 2-part single ladder and as stepladder with push-on section Number of rungs Overall length, retracted Stile depth Transport dimensions Weight Wide crosspiece Working height as 3-part single ladder
44837 4.4 m 3.25 m 3 × 7 2.14 m 58 mm 2.130 mm × 500 mm × 170 mm 13.8 kg 0.8 m 5.2 m
44838 5.25 m 3.85 m 3 × 8 2.42 m 68 mm 2.410 mm × 500 mm × 170 mm 16.3 kg 0.9 m 6 m
44839 6.1 m 4.4 m 3 × 9 2.7 m 73 mm 2.690 mm × 500 mm × 190 mm 18 kg 1 m 6.85 m
44840 6.65 m 4.65 m 3 × 10 2.98 m 73 mm 2.970 mm × 500 mm × 190 mm 20.5 kg 1.1 m 7.35 m
44841 7.2 m 5.25 m 3 × 11 3.26 m 85 mm 3.270 mm × 500 mm × 200 mm 22.3 kg 1.1 m 7.9 m
44842 8.3 m 5.8 m 3 × 12 3.54 m 85 mm 3.550 mm × 500 mm × 220 mm 25.9 kg 1.2 m 9 m
44844 9.45 m 6.654 m 3 × 14 4.1 m 98 mm 4.110 mm × 500 mm × 220 mm 31.5 kg 1.2 m 10.05 m
