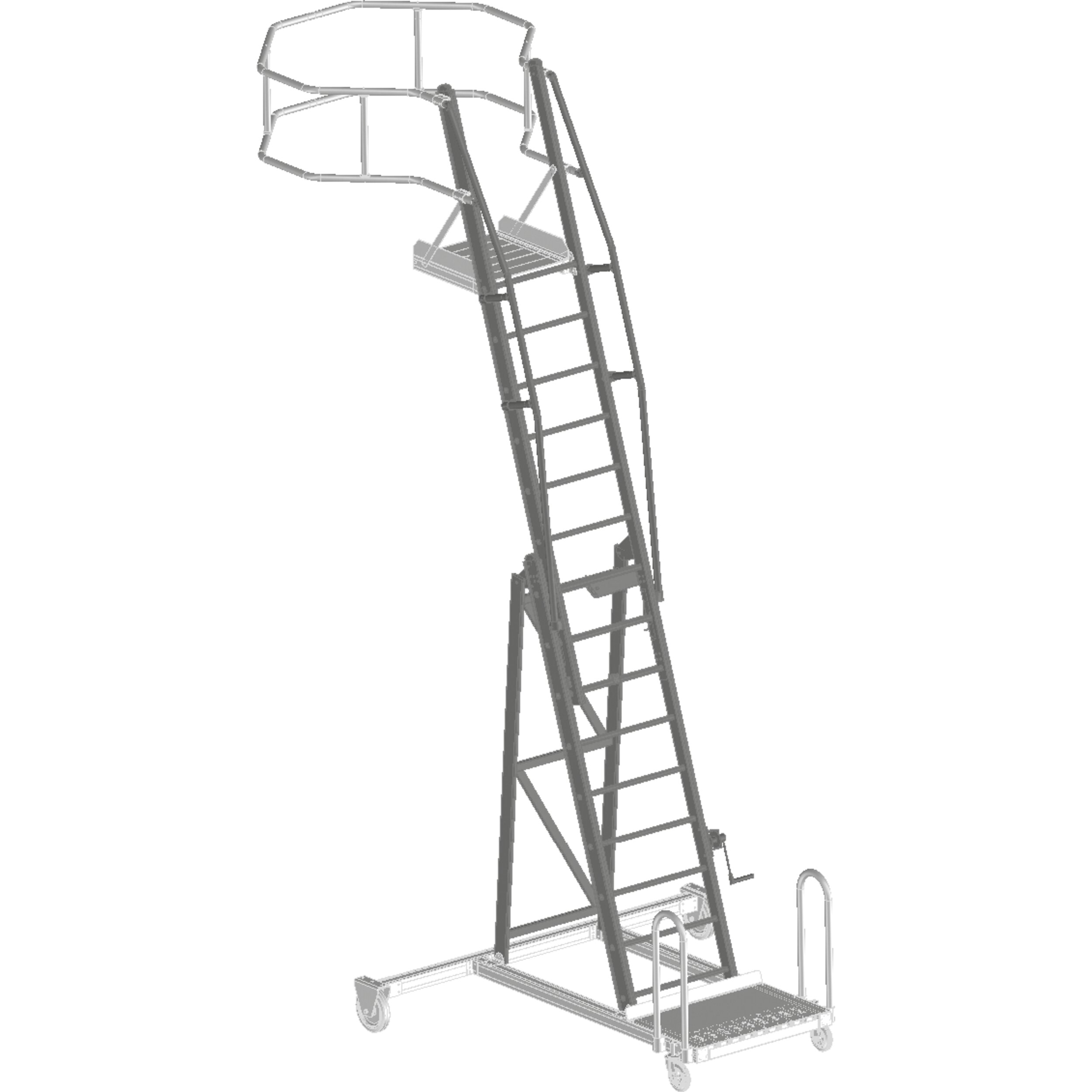

Tanker ladder basic module


Safe access for servicing, repairing, filling and cleaning road tankers and tank wagons.

  • Fields of application: Food industry, chemical and petrochemical industry, and rail vehicles.
  • Simple height adjustment in 280 mm increments by means of two-part push-up ladder and a cable winch.
  • Ladder with rungs 30 mm deep made from aluminium extrusion.
  • Possible platform heights from 2,770 mm to 4,100 mm.
  • Double-sided handrail on the push-up ladder for maximum safety when climbing.
  • Round or rectangular guardrail.
  • Easily moved by hand via chassis with two fixed and swivel castors.
  • Different chassis versions available depending on requirements.
  • Optionally with 600 mm wide platform in three different lengths.
  • Platform surface Serrated aluminium.

Hints and special features

  • If the existing modular system does not meet your requirements, we can also offer you customised solutions tailored to your needs.

More Information

More Information
Material Aluminium
Warranty 10 years
adjustable-height-pf 1
Coating natural
Connection Stile-Rung flanged
Tread depth 30 mm
Pitch rung/tread 265 mm
Type rung/tread serrated


Order number Coating Connection Stile-Rung Load Material Pitch rung/tread Transport dimensions Tread depth Type rung/tread Warranty Weight
591000 natural flanged max. 150 kg Aluminium 265 mm 3.415 mm × 1.020 mm × 350 mm 30 mm serrated 10 years 52.3 kg
