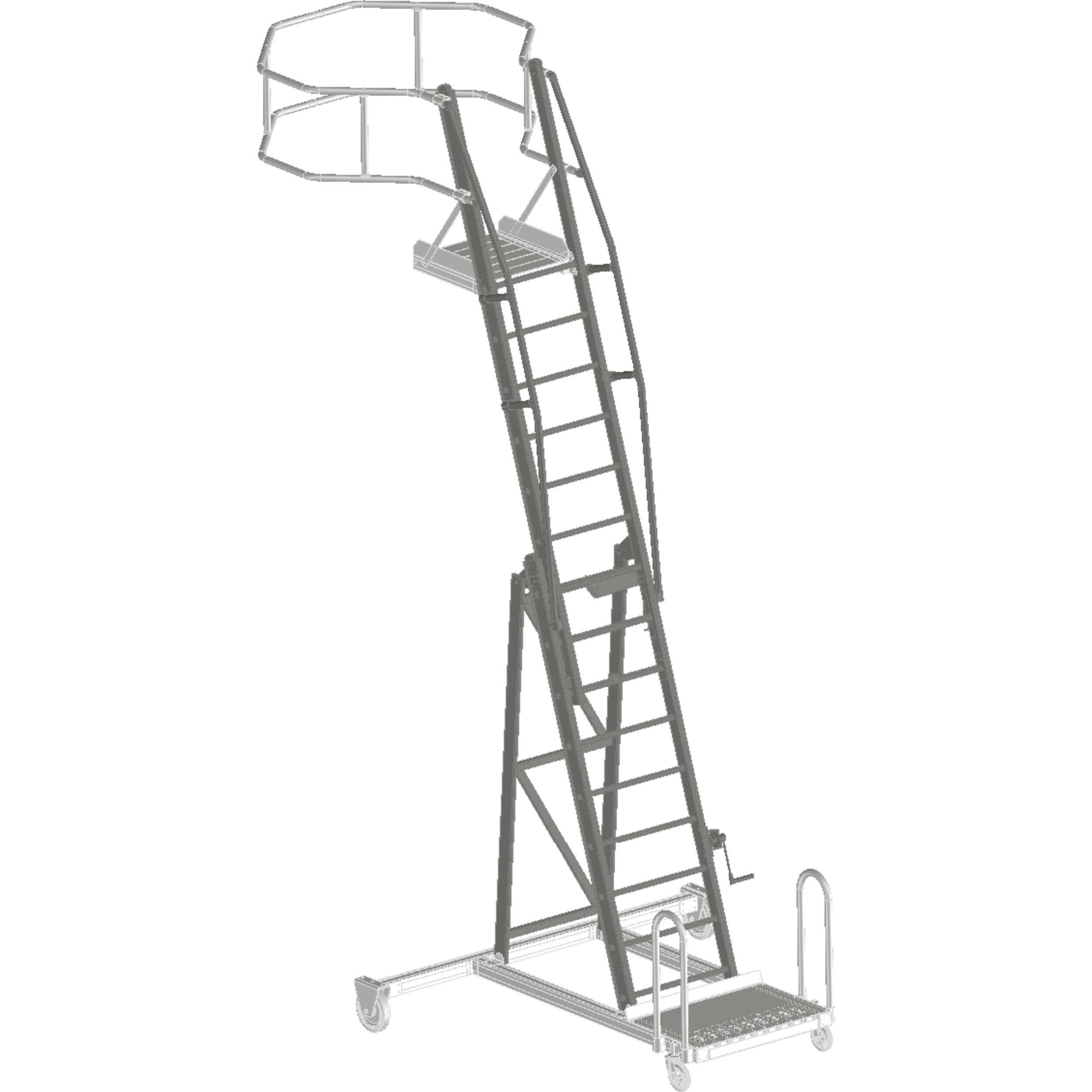

Tanker ladder basic module

SKU: 591000

Details

Safe access for servicing, repairing, filling and cleaning road tankers and tank wagons.

  • Safe access for servicing, repairing, filling and cleaning road tankers and tank wagons.
  • Fields of application: Food industry, chemical and petrochemical industry, and rail vehicles.
  • Possible platform heights from 2,770 mm to 4,100 mm.
  • Simple height adjustment in 280 mm increments by means of two-part push-up ladder and a cable winch.
  • Double-sided handrail on the push-up ladder for maximum safety when climbing.
  • Easily moved by hand via chassis with two fixed and swivel castors.
  • The many different ways of combining modules make our de-icing platform exceptionally versatile. You can simply combine several base modules with expansion modules to create the platform you want.
  • Ladder with rungs 30 mm deep made from aluminium extrusion.

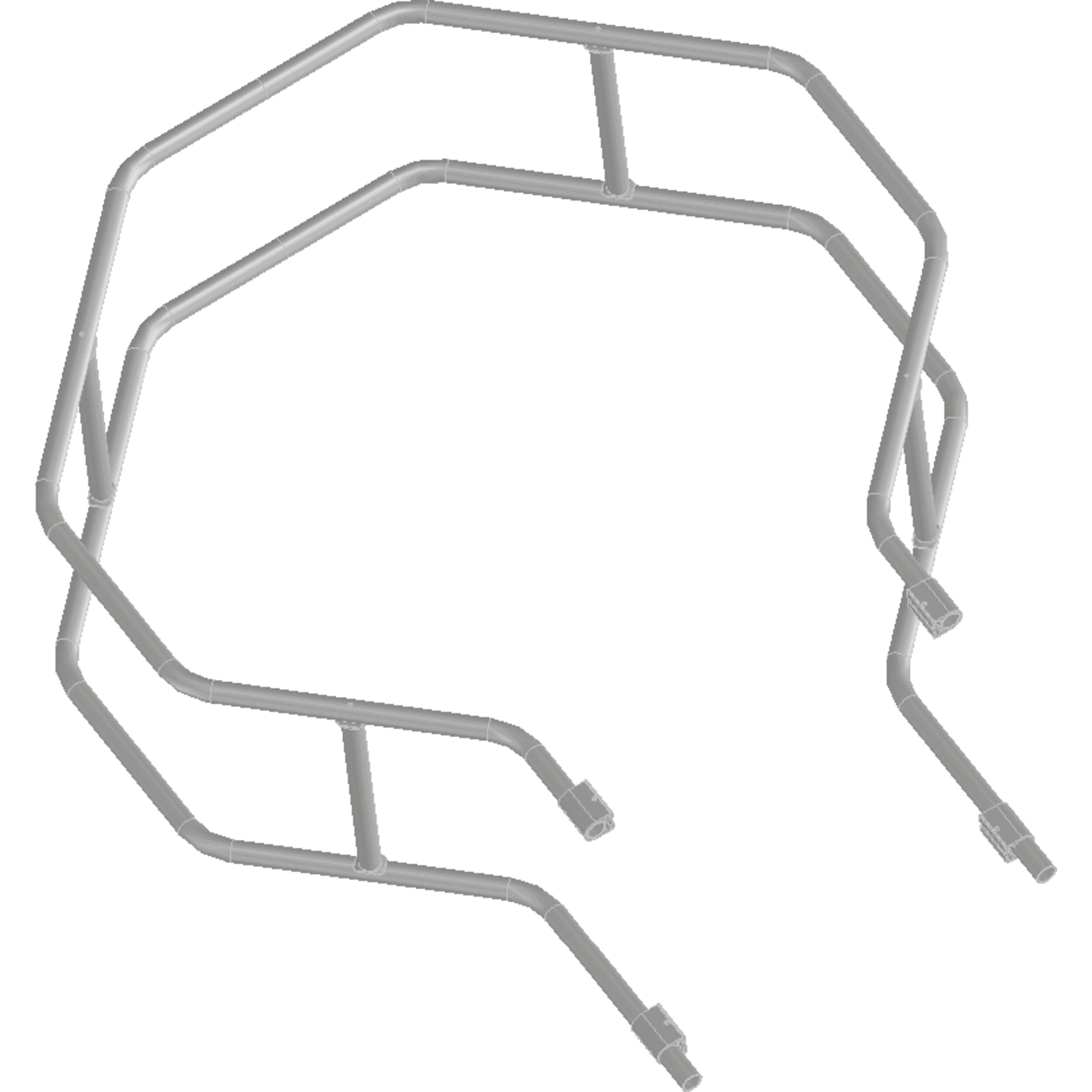

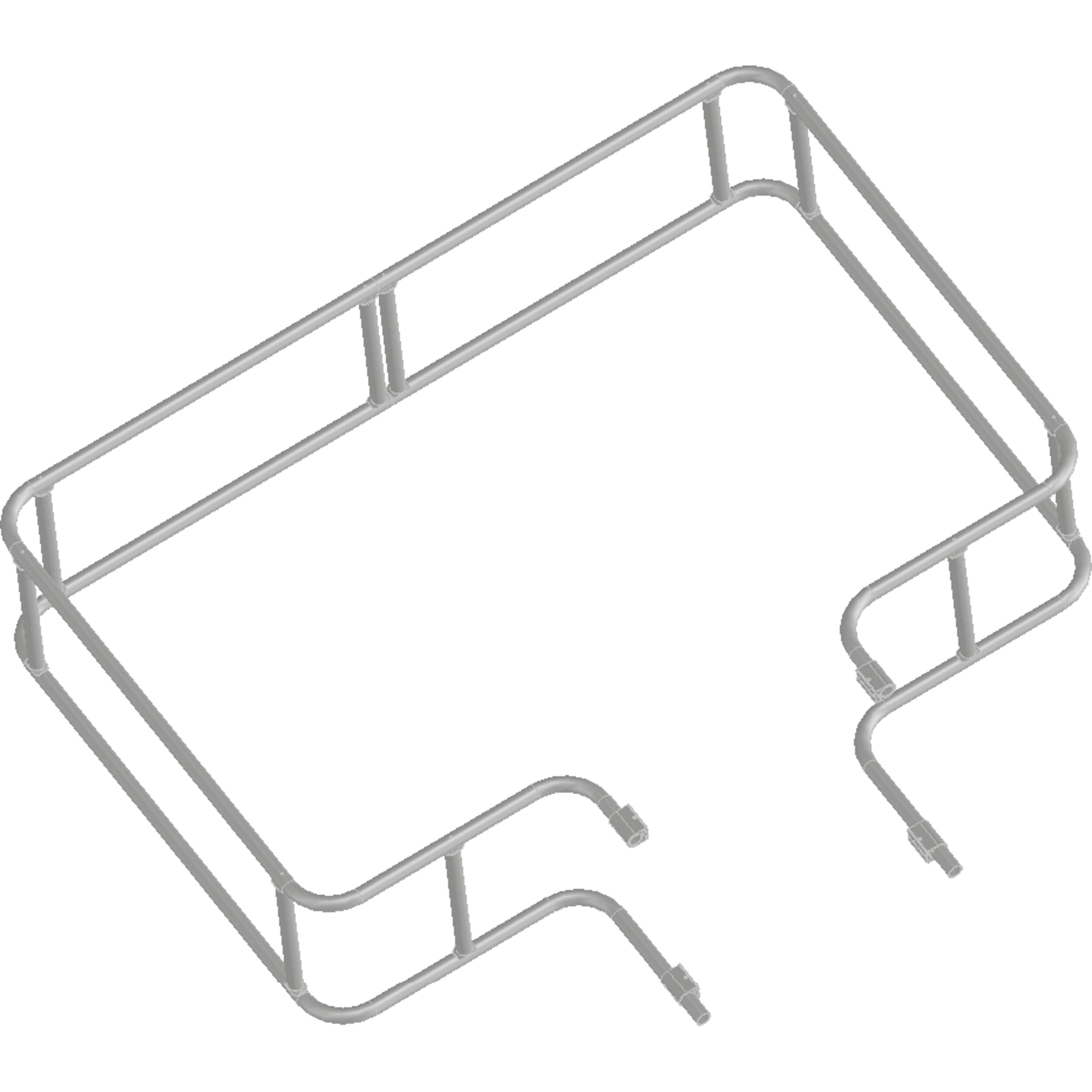

  • Round or rectangular guardrail.

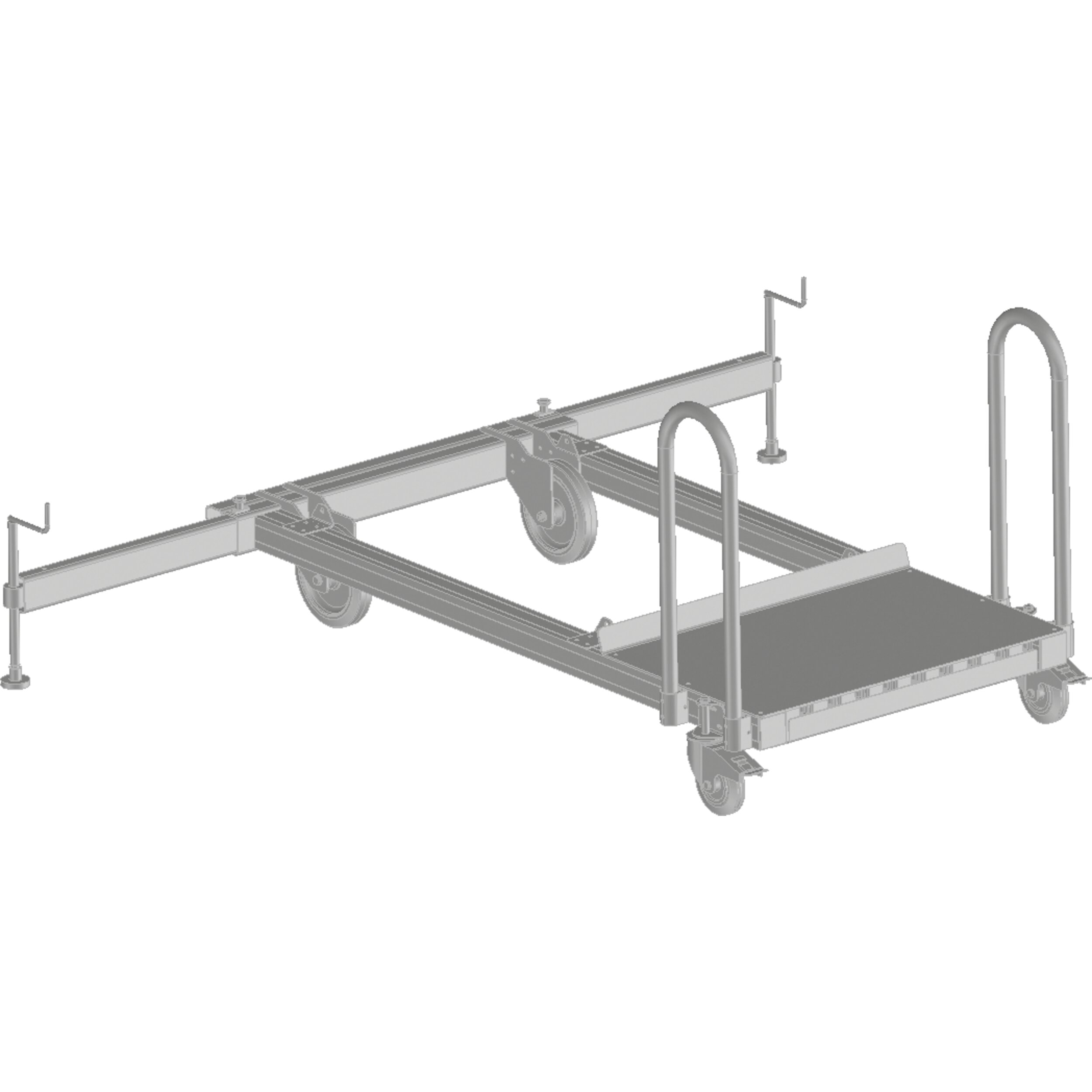

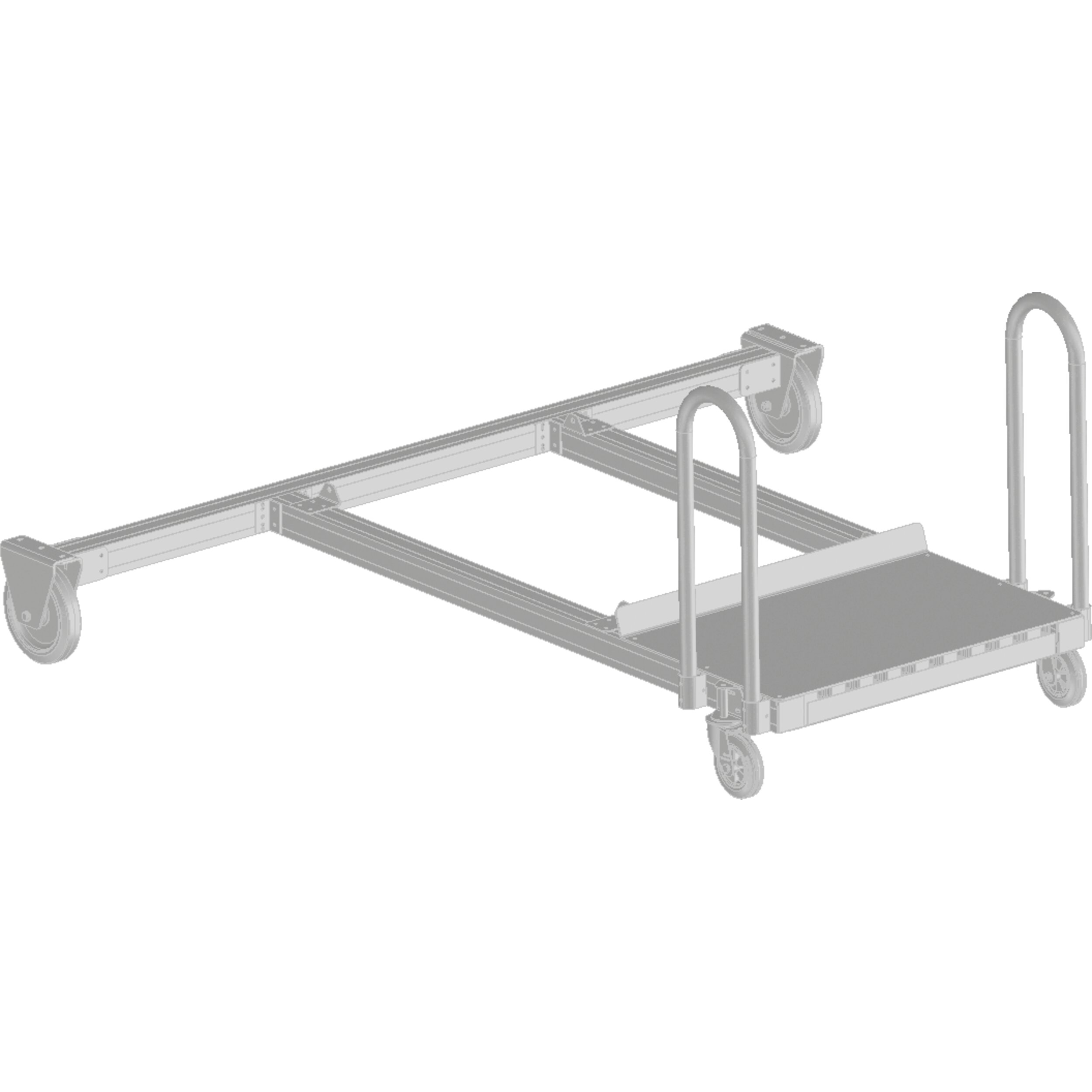

  • Different chassis versions available depending on requirements.

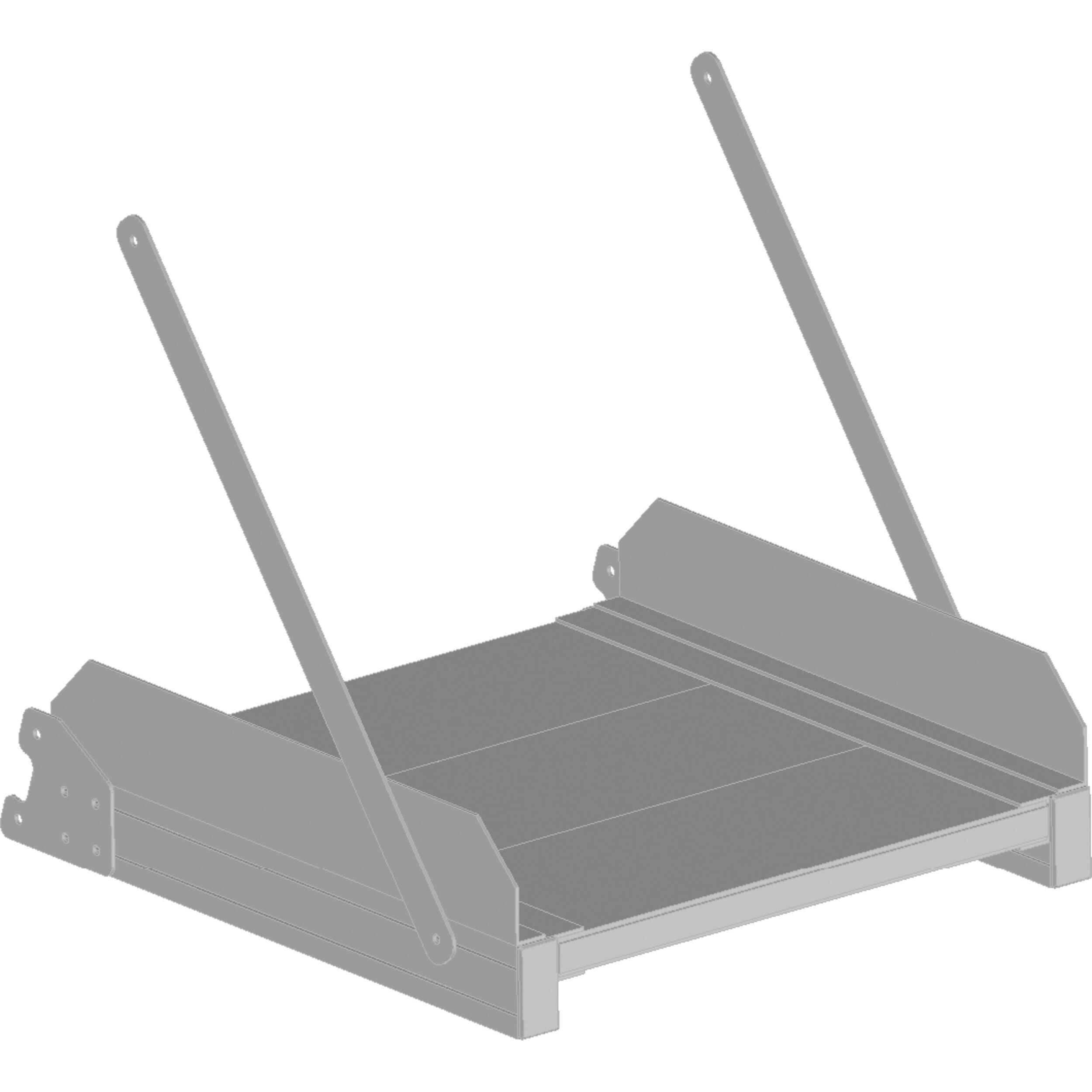

  • Optionally with 600 mm wide platform in three different lengths.
  • Platform surface Serrated aluminium.

Hints and special features

  • If the existing modular system does not meet your requirements, we can also offer you customised solutions tailored to your needs.

More Information

More Information
Material Aluminium
Warranty 10 years
Order number 591000
Load capacity max. 150 kg
Coating natural
Connection Stile-Rung flanged
Tread depth 30 mm
Transport dimensions 3.415 mm × 1.020 mm × 350 mm
Pitch rung/tread 265 mm
Type rung/tread serrated
Weight 52.3 kg

Variants

Order number Coating Connection Stile-Rung Load capacity Material Pitch rung/tread Transport dimensions Tread depth Type rung/tread Warranty Weight
591000 natural flanged max. 150 kg Aluminium 265 mm 3.415 mm × 1.020 mm × 350 mm 30 mm serrated 10 years 52.3 kg
