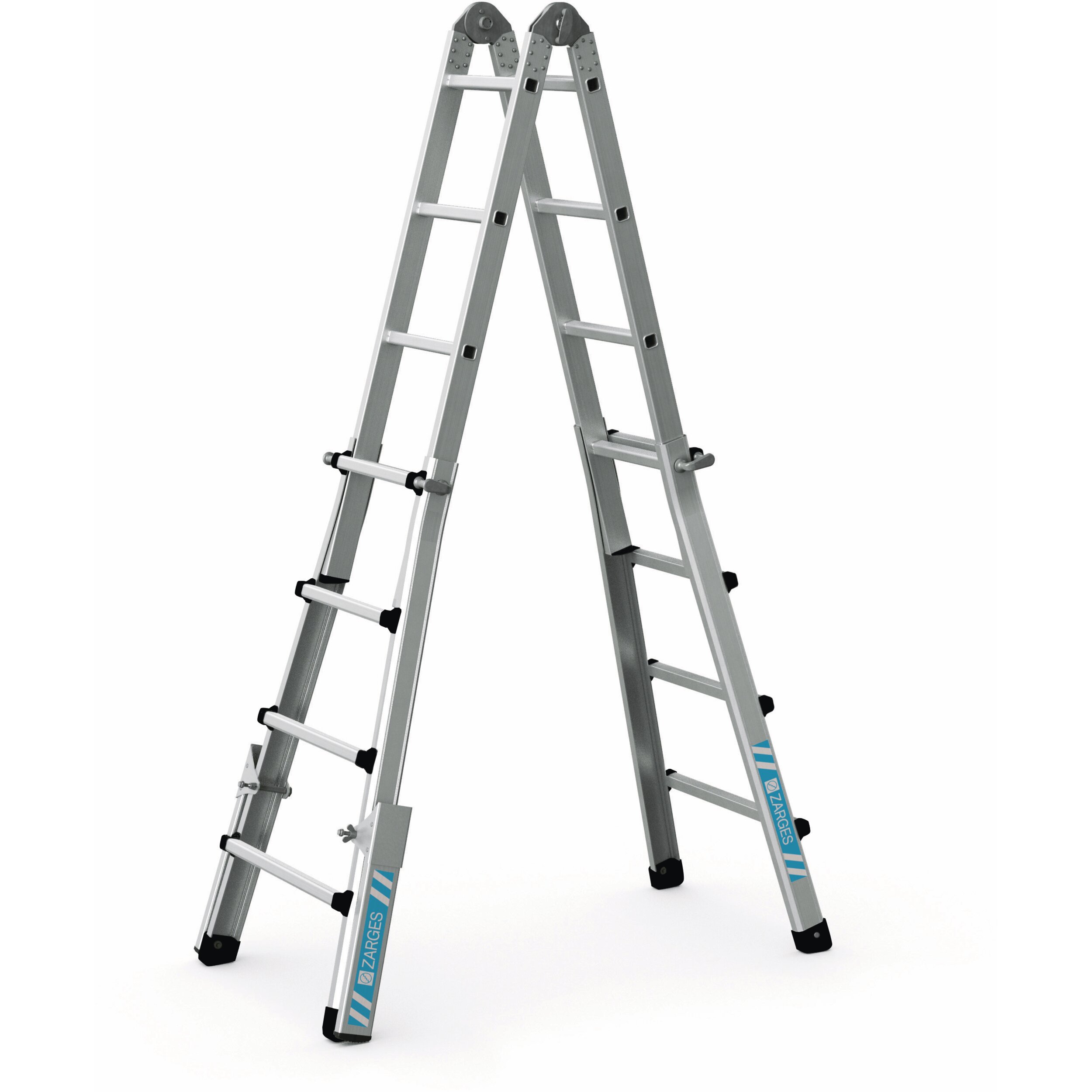

Variomax V

Details

Multifunctional, extendible ladder suitable for use on stairs, with compact transport dimensions and in sturdy, durable design.

  • Easy-to-use, automatically engaging aluminium safety hinge.
  • Safe height adjustment thanks to four pull handles of diecast aluminium.
  • Single ladder, stepladder and staircase stepladder in one.
  • Fitted with fold-out stabilisers to allow the product to be used as a single ladder in compliance EN131-1 (except for the 4x3 model).
  • The stabilisers can be folded in to save space during transport or when the product is used as a stepladder.
  • Rung by rung working height adjustment in all versions.
  • Quickly and easily converts from one mode to another.
  • High strength, non-twist rung/stile connections.

More Information

More Information
Coating natural
Connection Stile-Rung flanged
Tread depth 30 mm
Load max. 150 kg
Material Aluminium
Pitch rung/tread 265 mm
Producttype Flanged telescopic multi-function ladder, 4-section
Type rung/tread serrated

Variants

Order number Dimensions, folded Length Length as lean-to ladder Length as trestle Number of rungs Number of rungs Transport dimensions Weight Width Working height as lean-to ladder Working height as stepladder
41934 0,97 m × 0,5 m × 0,21 m 0.97 m 2.97 m 1.45 m 3 4 × 3 970 mm × 500 mm × 210 mm 9 kg 0.5 m 3.85 m 2.75 m
41383 1,3 m × 0,64 m × 0,21 m 1.3 m 4.2 m 2 m 4 4 × 4 1.310 mm × approx. 640 mm × 210 mm 15 kg 0.64 m 5 m 3.35 m
41384 1,58 m × 0,71 m × 0,21 m 1.58 m 5.3 m 2.54 m 5 4 × 5 1.580 mm × approx. 710 mm × 210 mm 18 kg 0.71 m 6.05 m 3.85 m
41385 1,86 m × 0,78 m × 0,21 m 1.86 m 6.4 m 3.1 m 6 4 × 6 1.860 mm × approx. 780 mm × 210 mm 22 kg 0.78 m 7.1 m 4.4 m
