XLstep P - wide

SKU: 41409

Contact ZARGES Add to Compare Download Product Datasheet (PDF) Product Documents Spare parts and accessories

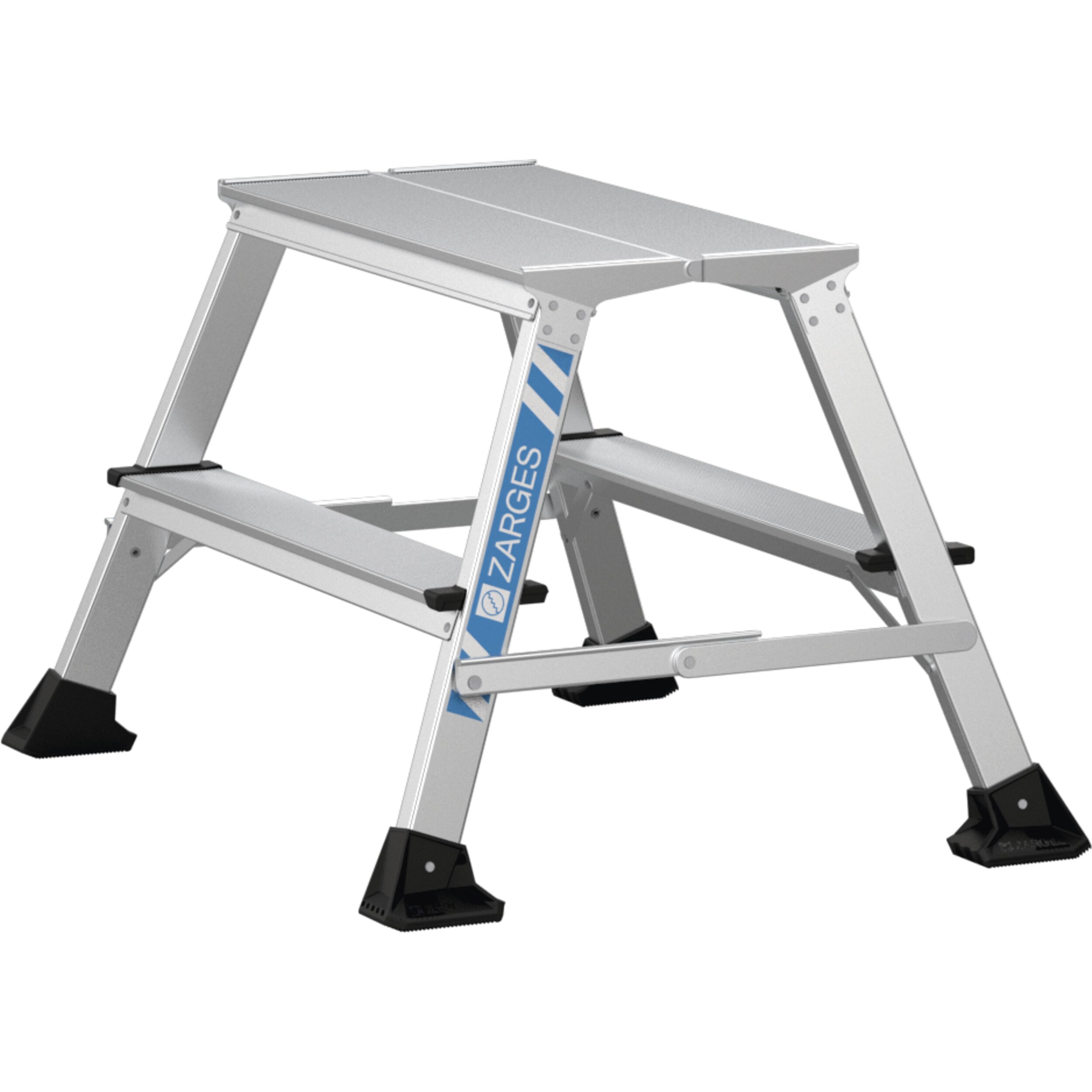

main product photo

Details

  • The lightest of the heavy-duty work platforms with an extra large platform and anodised stiles.
  • Platform size approx. 600 x 300 mm.
  • Extra-deep treads (92 mm) for comfortable and safe standing.
  • Optimum stability thanks to rigid locking bar on both sides.
  • Double-sided access.
  • Abrasion-resistant, anodised stiles.
  • New design - high-quality 2-component plastic ladder shoe - also suitable for working on gratings.

Hints and special features

  • Complies with EN 14 183

More Information

More Information
Producttype Work platform, extra-wide
Coating anodised
Connection Stile-Rung riveted
Type rung/tread serrated
Pitch rung/tread 250 mm
Tread depth 92 mm
Number of treads 2 × 2
Warranty 10 years
Transport dimensions approx. 580 mm × approx. 800 mm × approx. 290 mm
Standards EN 14183
Number of treads 2
Weight 5.6 kg
Stile depth 48 mm
Base 0,64 m × 0,8 m
Platform width 600 mm
Platform length 300 mm
Load capacity 150 kg
Overall base width 0.8 m
Working height 2.49 m
Platform height 0.49 m
Material Anodised aluminium
certification-mark-pf TÜV-SÜD
Order number 41409

Variants

Order number Base Number of treads Overall base width Platform height Transport dimensions Weight Working height
41409 0,64 m × 0,8 m 2 × 2 0.8 m 0.49 m approx. 580 mm × approx. 800 mm × approx. 290 mm 5.6 kg 2.49 m
41410 0,82 m × 0,88 m 2 × 3 0.88 m 0.74 m approx. 840 mm × approx. 880 mm × approx. 290 mm 7.4 kg 2.74 m
41411 0,99 m × 0,96 m 2 × 4 0.96 m 0.99 m approx. 1.105 mm × approx. 960 mm × approx. 290 mm 9.3 kg 2.99 m
