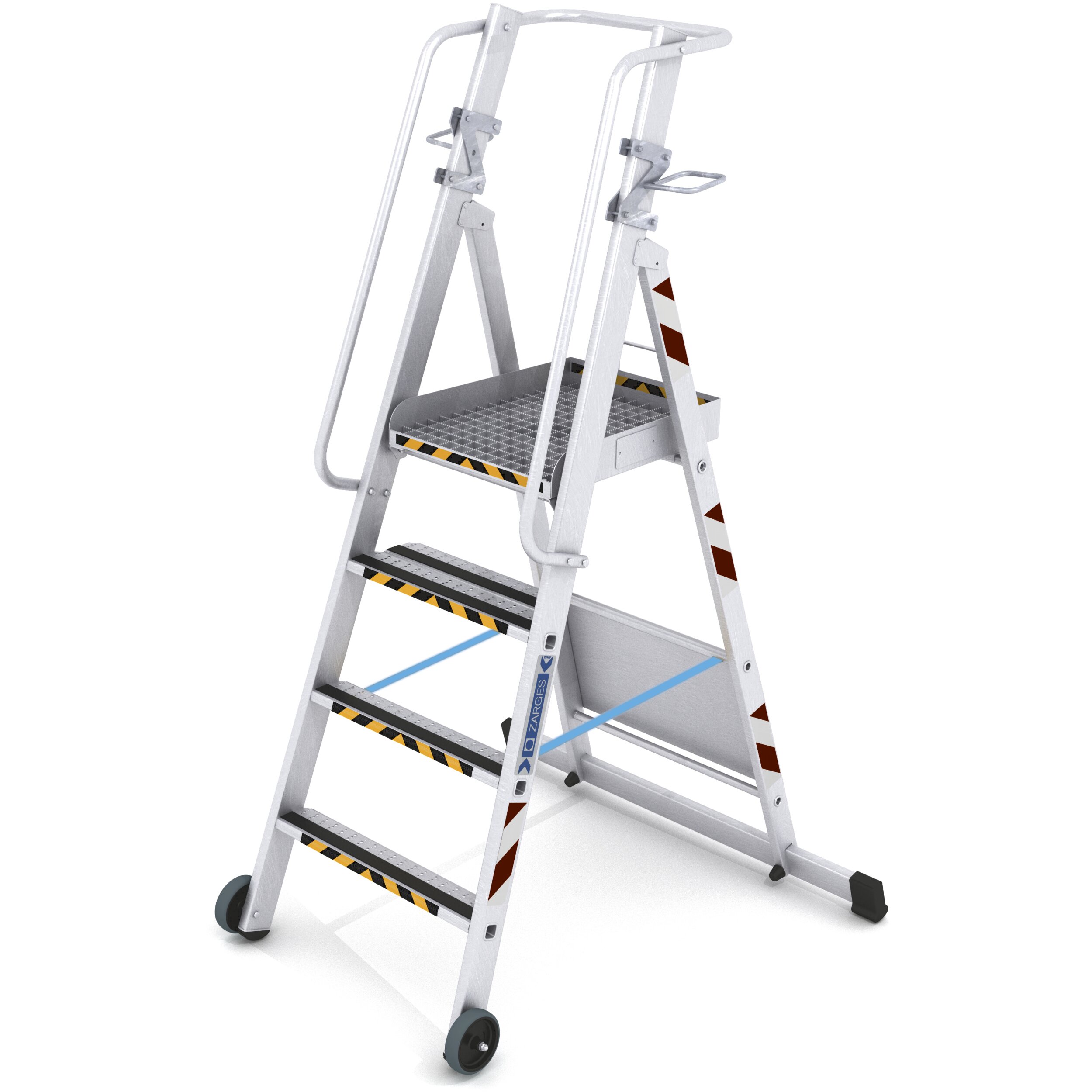

ZAP R13master S

Details

The universal platform ladder for all kinds of demanding applications. You can also use this ladder as a refuelling ladder to help you get work done quickly and safely.

  • Our ladder is equipped with two removable mounts for securely holding underwing refuelling nozzles on the ladder's access section.
  • A stabiliser on the ladder’s support section ensures safe standing. Also available in other widths.
  • The spacious platform (500x450mm) made of steel grating ensures maximum secure footing thanks to its R13 slip-resistance rating and design that allows liquids to drain off.
  • 80 mm deep treads with R13 surface and perforations to drain fast.
  • Two wheels on the access section ensure easy ladder operation. The wheels can also be attached to the support section.
  • Our ladders comply with the European standards EN 131-1, -2 and EN 131-7.

More Information

More Information
Pitch rung/tread 265 mm
Type rung/tread R13 tread
Load max. 150 kg
Tread depth 80 mm
Connection Stile-Rung flanged
Coating natural

Variants

Order number Number of treads Overall base width Platform height Transport dimensions Weight Wide crosspiece Working height
40097 3 1000 mm 0.8 m 1.800 mm × 1.050 mm × 400 mm 15 kg 1 m 2.8 m
40098 4 1100 mm 1.07 m 2.050 mm × 1.200 mm × 400 mm 17 kg 1.1 m 3 m
40099 5 1200 mm 1.35 m 2.350 mm × 1.250 mm × 400 mm 18 kg 1.2 m 3.35 m
40051 6 1400 mm 1.6 m 2.550 mm × 1.450 mm × 400 mm 20 kg 1.4 m 3.6 m
