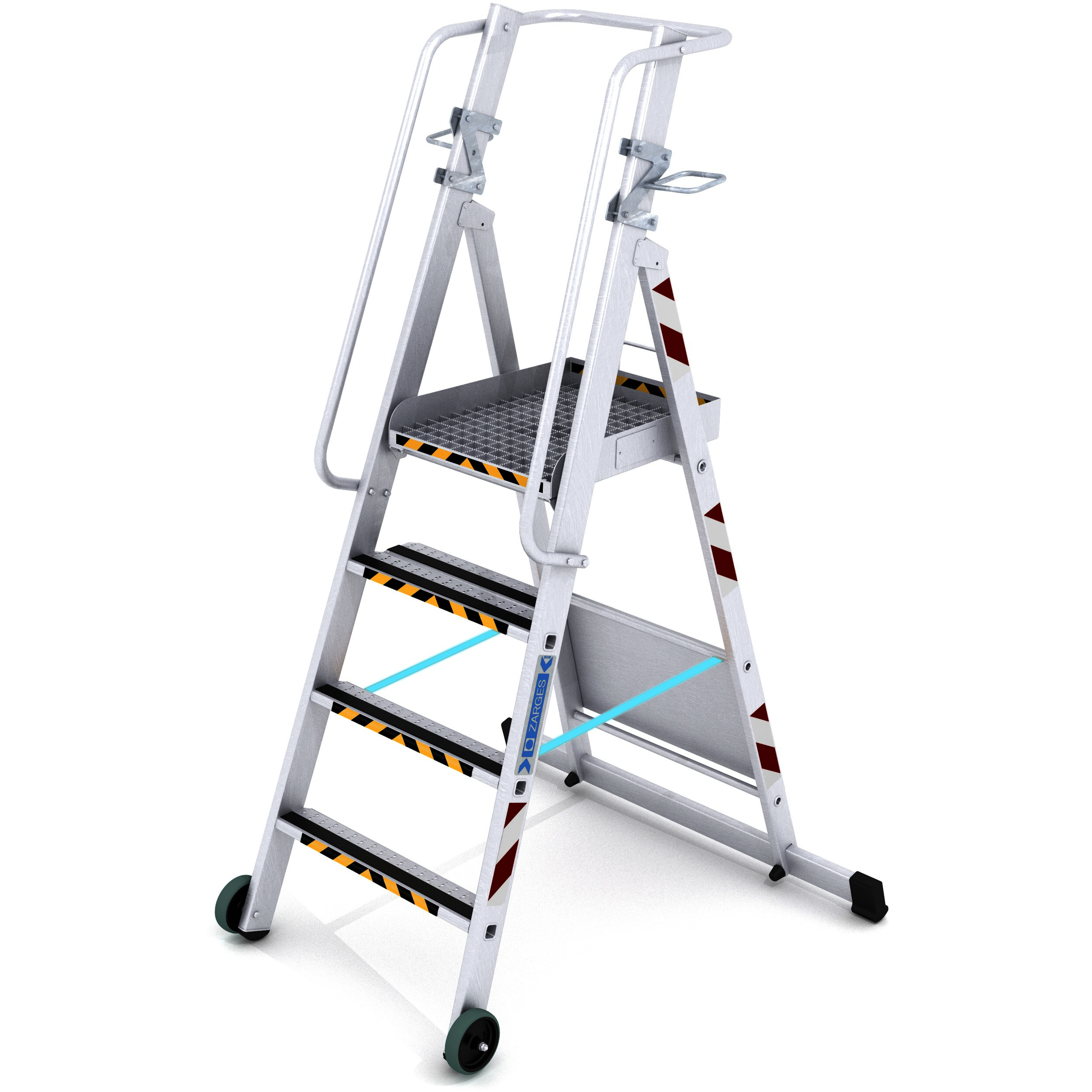

Fuelling ladder with 5 treads

SKU: 40099

Details

The universal platform ladder for any heavy-duty application! Or specifically as a refuelling ladder.

  • The universal platform ladder for any heavy-duty application! Or specifically as a refuelling ladder.
  • Our ladder is equipped with two removable mounts for securely holding underwing refuelling nozzles on the ladder's access section.
  • The crossbar on the ladder's support section ensures stability.
  • The spacious platform (450 x 500 mm), made of steel grating with a slip resistance rating of R13, ensures maximum stability.
  • Two electrically conductive rollers on the riser provide a simple method for moving the conductors.
  • Increased safety even with oily substances or ice during outdoor applications.
  • Large, serrated-surface standing platform for safe and comfortable working.
  • Easily collapsible for transport and storage.
  • 80 mm deep treads with R13 tread and grooves, as well as perforations to allow liquids to drain, for noticeably better traction in any situation.
  • All-round railings.
  • Wide horizontal stabiliser bar.

More Information

More Information
Producttype Flanged mobile platform ladder
Anti splay Belt strap
Coating natural
Connection Stile-Rung flanged
Type rung/tread R13 tread
Pitch rung/tread 265 mm
Tread depth 80 mm
non-static
Warranty 10 years
Transport dimensions 2.350 mm × 1.250 mm × 400 mm
Standards EN 131-7
Number of treads 5
Weight 18 kg
Stile depth 73 mm
Platform width 450 mm
Platform length 500 mm
Wide crosspiece 1.2 m
Number of rungs, incl. platform 5
Overall base width 1200 mm
Working height 3.35 m
Platform height 1.35 m
Load capacity max. 150 kg
Material Natural aluminium
Number of rungs / treads 5

Variants

Order number Number of rungs, incl. platform Overall base width Platform height Transport dimensions Weight Wide crosspiece Working height
40098 4 1100 mm 1.07 m 2.050 mm × 1.200 mm × 400 mm 17 kg 1.1 m 3 m
40099 5 1200 mm 1.35 m 2.350 mm × 1.250 mm × 400 mm 18 kg 1.2 m 3.35 m
40051 6 1200 mm 1.6 m 2.550 mm × 1.450 mm × 400 mm 20 kg 1.4 m 3.6 m
