Safe ascent and descent due to non-slip treads and handrail, high degree of stability and compact transport dimensions.
| Coating | anodised |
|---|---|
| Connection Stile-Rung | flanged |
| Tread depth | 80 mm |
| Load | max. 150 kg |
| Pitch rung/tread | 265 mm |

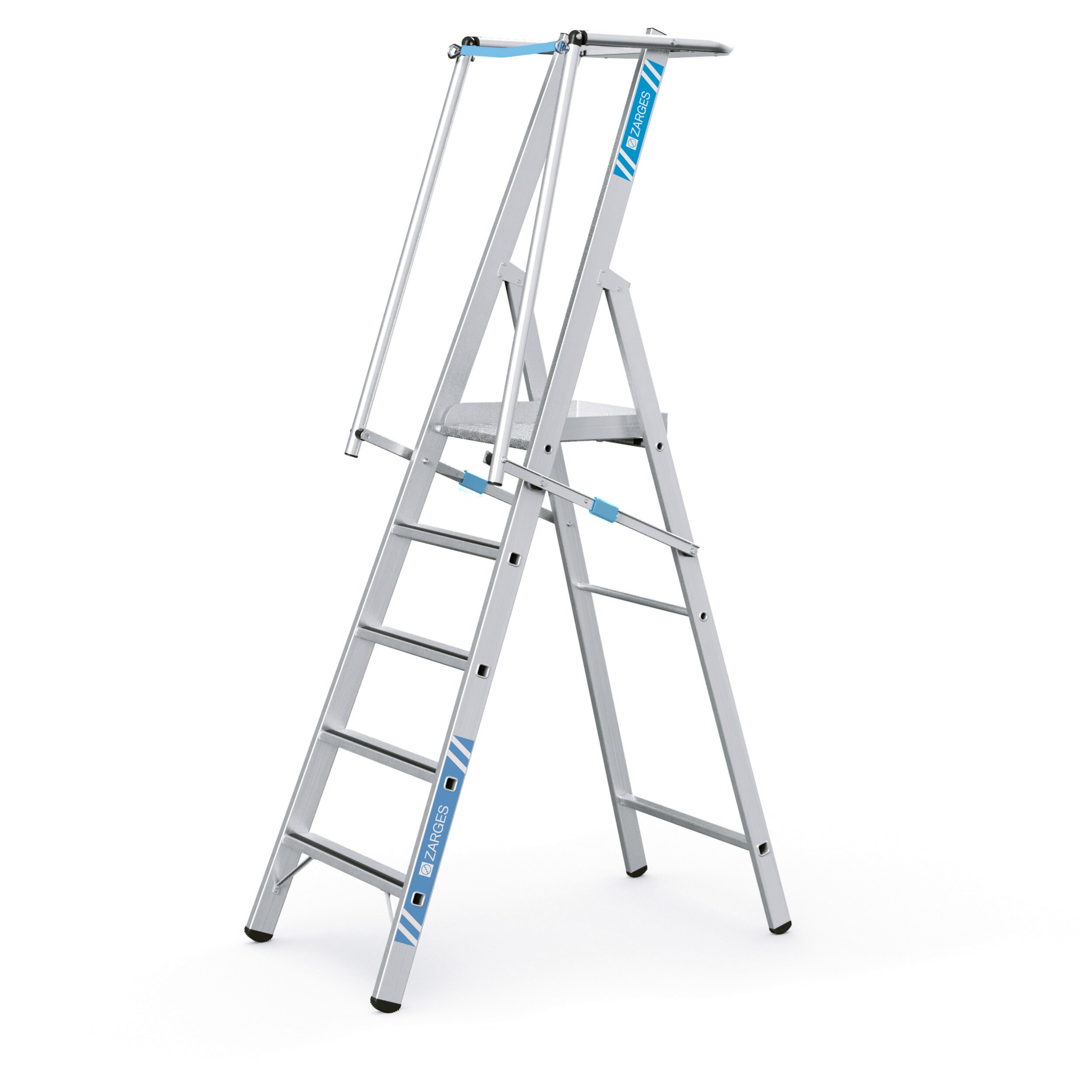

| Producttype | Flanged platform ladder with treads |
| Type rung/tread | Safer Step |
| Order number | Height including railing | Number of rungs, incl. platform | Overall base width | Overall length | Platform height | Transport dimensions | Weight | Working height |
|---|---|---|---|---|---|---|---|---|
| 41672 | = 1.53 m | 2 | 0.59 m | 1.87 m | 0.53 m | approx. 1.870 mm × 620 mm × 210 mm | 10.6 kg | = 2.53 m |
| 41681 | = 1.79 m | 3 | 0.62 m | 2.15 m | 0.79 m | approx. 2.150 mm × 620 mm × 210 mm | 11.8 kg | 2.79 m |
| 41674 | = 2.06 m | 4 | 0.65 m | 2.43 m | 1.06 m | approx. 2.430 mm × 630 mm × 210 mm | 13 kg | = 3.06 m |
| 41675 | = 2.32 m | 5 | 0.68 m | 2.71 m | 1.32 m | approx. 2.710 mm × 680 mm × 210 mm | 14.4 kg | = 3.32 m |
| 41676 | = 3.58 m | 6 | 0.71 m | 2.99 m | 1.58 m | approx. 2.990 mm × 700 mm × 210 mm | 16.1 kg | = 3.58 m |
| 41677 | = 1.85 m | 7 | 0.74 m | 3.27 m | 1.85 m | approx. 3.270 mm × 720 mm × 210 mm | 17.4 kg | = 3.85 m |
| 41678 | = 3.11 m | 8 | 0.77 m | 3.55 m | 2.11 m | approx. 3.550 mm × 750 mm × 210 mm | 19.1 kg | = 4.11 m |
| 41679 | = 3.34 m | 9 | 0.8 m | 3.83 m | 2.34 m | approx. 3.830 mm × 773 mm × 210 mm | 20.4 kg | 4.34 m |
