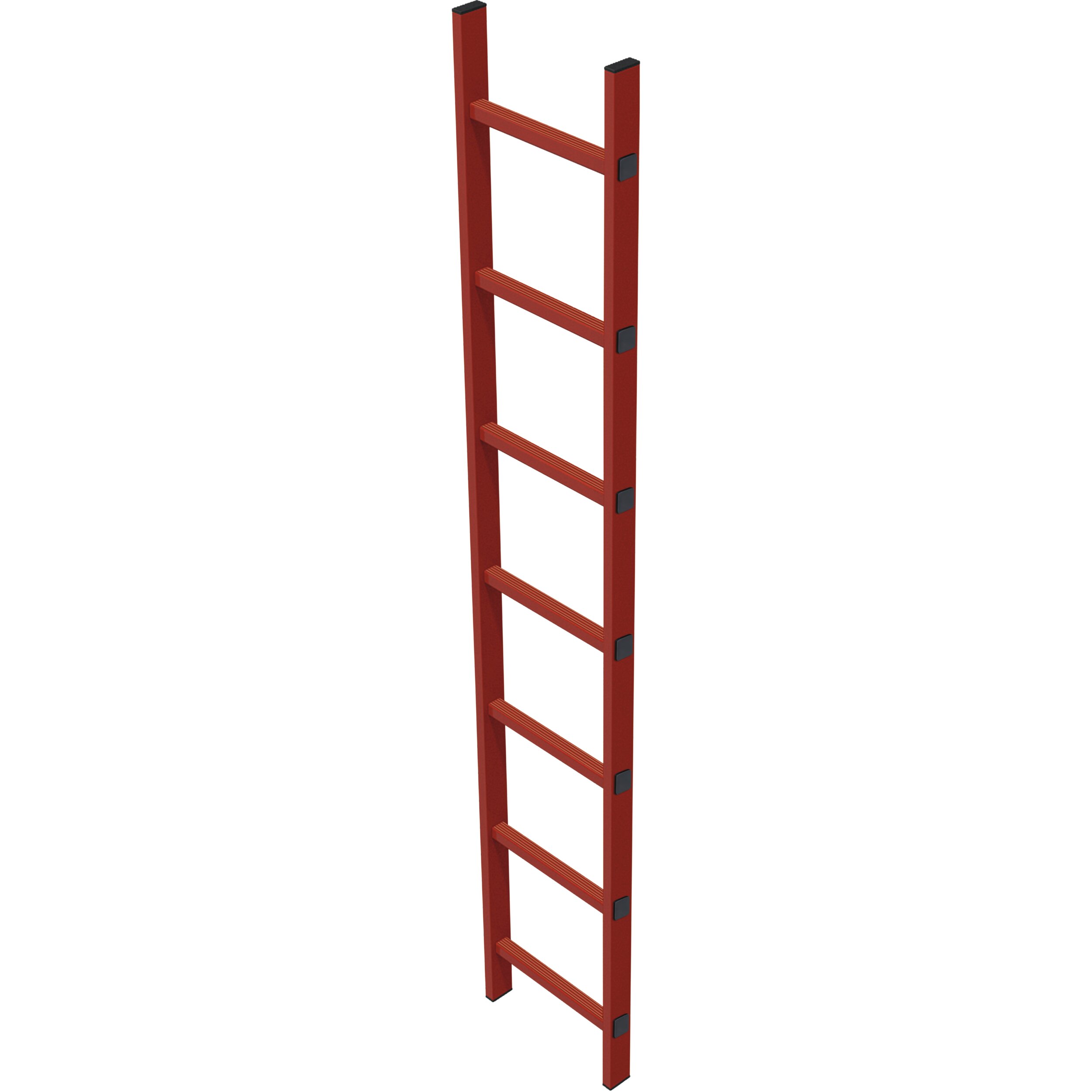

Shaft ladder, GRP, internal width 400 mm

Details

    Hints and special features

    • A fall arrester device is mandatory in the case of possible falling heights in excess of 5.00 m. From an internal width of 300 mm upwards, it is attached to the stile. From an internal width of 400 mm upwards, it is attached in centred position on the rungs.
    • assembly combination for further lengths on request.

    Variants

    Order number Length Number of rungs Weight
    47371 1,12 m 4 5,7 kg
    47372 1,4 m 5 7,3 kg
    47373 1,68 m 6 8,9 kg
    47374 1,96 m 7 10,5 kg
    47375 2,24 m 8 12,1 kg
    47376 2,52 m 9 13,7 kg
    47377 2,8 m 10 15,3 kg
    47378 3,08 m 11 16,9 kg
    47379 3,36 m 12 18,5 kg
    47673 3,64 m 13 20,1 kg
    47674 3,92 m 14 21,7 kg
    47675 4,2 m 15 23,3 kg
