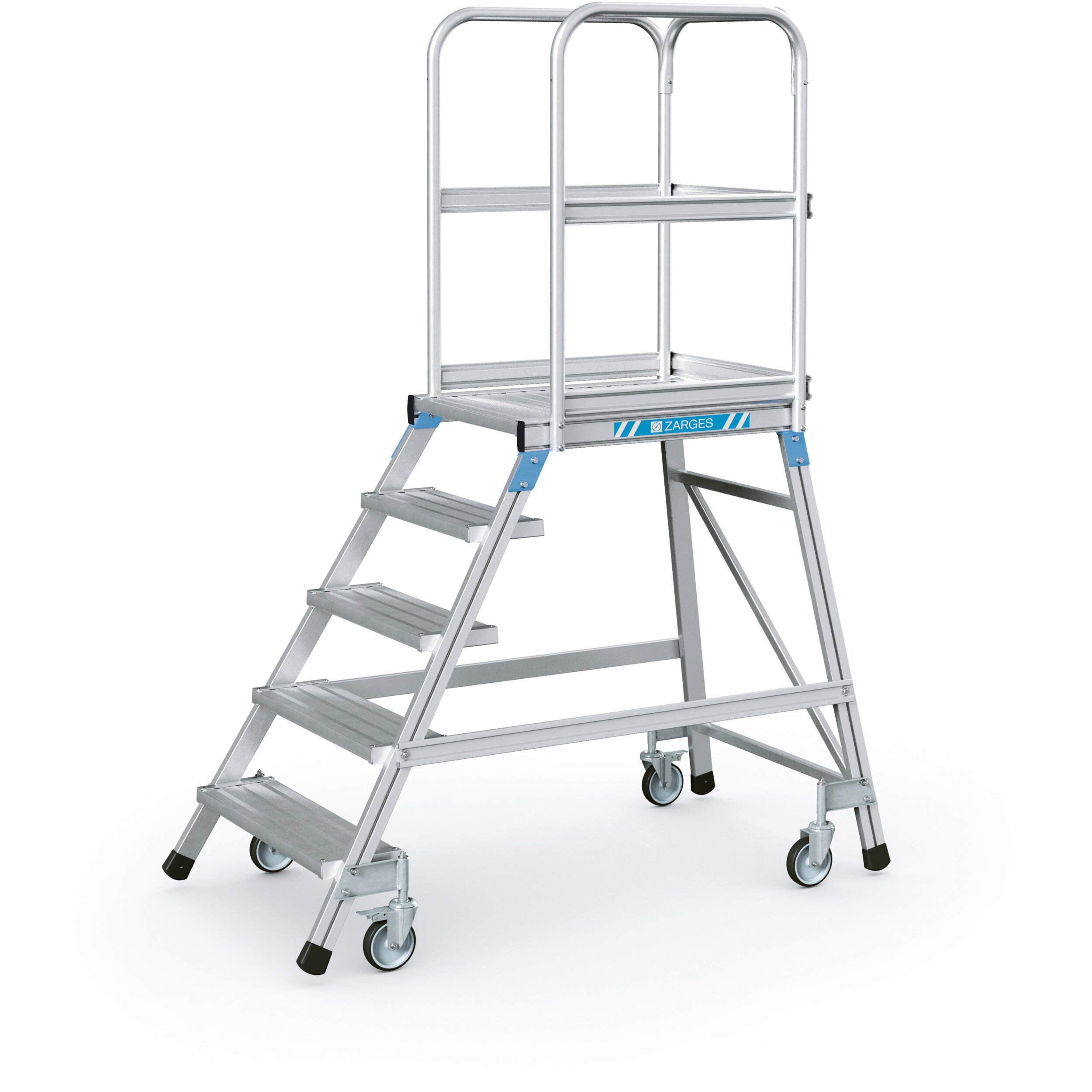

Mobile access steps with platform, single-sided access, with light-alloy treads and platform

Contact ZARGES Add to Compare Download Product Datasheet (PDF) Product Documents Spare parts and accessories
main product photo

Details

Can be released safely and quickly for flexibility while working: comfortable ascent, four sprung castors for stability and easy handling.

  • Quick and easy assembly thanks to the new connecting elements.
  • Comfortable ascent through treads with a depth of 200 mm.
  • Spacious platform, 600 x 800 mm.
  • Mobile and ready for operation in no time with four sprung swivel castors (two of each with brakes).
  • Maximum safety through platform railing at a height of 1.00 m on three sides.
  • Maximum loading capacity 150 kg.

Hints and special features

  • Double-sided handrail in accordance with EN 131-7 on access optional.
  • Complies with EN 131-7

More Information

More Information
Platform width 600 mm
Guardrail height 1000 m
Platform length 800 mm
Warranty 10 years
Coating natural
Connection Stile-Rung welded
Tread depth 200 mm
Load max. 150 kg
Material Aluminium
Pitch rung/tread 240 mm
Type rung/tread serrated

Variants

Order number Base Number of rungs, incl. platform Platform height Transport dimensions Weight Working height
41971 0,77 m × 1,27 m 3 0.72 m 1.180 mm × 820 mm × 330 mm 28.5 kg 2.7 m
41972 0,82 m × 1,45 m 4 0.96 m 1.350 mm × 820 mm × 400 mm 31.8 kg 2.95 m
41973 0,87 m × 1,63 m 5 1.2 m 1.380 mm × 950 mm × 420 mm 35 kg 3.2 m
41974 0,93 m × 1,81 m 6 1.44 m 1.850 mm × 1.000 mm × 330 mm 38.4 kg 3.45 m
41975 0,98 m × 1,99 m 7 1.68 m 1.920 mm × 1.060 mm × 410 mm 41.8 kg 3.7 m
41976 1,03 m × 2,17 m 8 1.92 m 2.220 mm × 1.030 mm × 360 mm 45.6 kg 3.9 m
