R13step S

SKU: 41636

Contact ZARGES Add to Compare Download Product Datasheet (PDF) Product Documents Spare parts and accessories

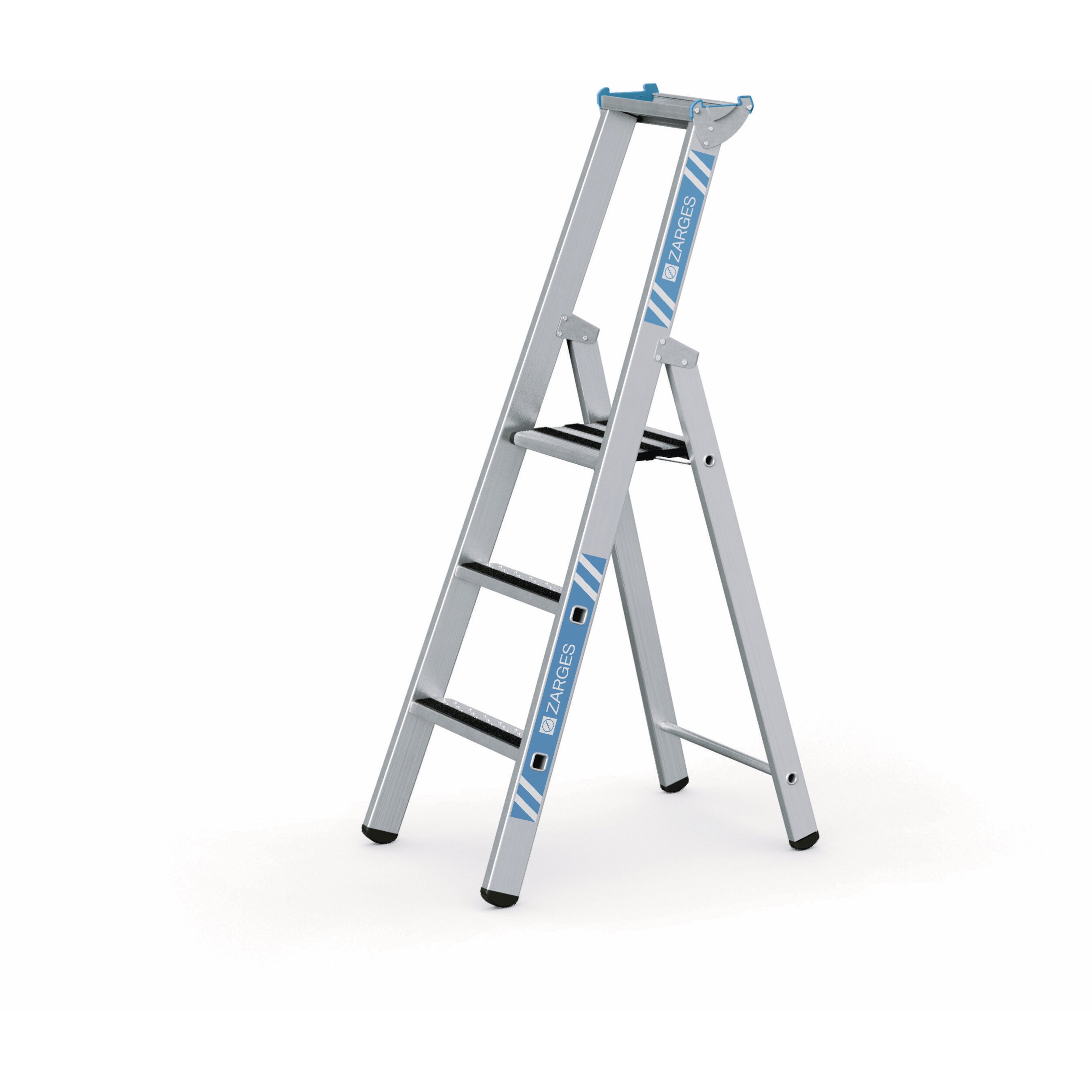

main product photo

Details

Safer ascent with the highest non-slip performance thanks to R13 treads for oily and wet environment.

  • Safer ascent with the highest non-slip performance thanks to R13 treads for oily and wet environment.
  • Large platform with R13 surface that allows personnel to stand safely and comfortably even when working for extended periods.
  • Spacious aluminium storage tray for material and tools.
  • 80 mm deep treads with R13 surface and perforations to drain fast.
  • Abrasion-resistant, anodised stiles.
  • Maximum working heights thanks to 280mm high access.
  • Replaceable 2-component plastic end caps ensure positioning without risk of slipping and at the same time provide firm seating in the stile.

Hints and special features

  • Complies with EN 131 Professional.

More Information

More Information
Producttype Stepladder with flanged treads
Anti splay Belt strap
Tray Aluminium
Coating anodised
Connection Stile-Rung flanged
Type rung/tread R13 tread
Pitch rung/tread 265 mm
Tread depth 80 mm
Warranty 10 years
Transport dimensions approx. 1.590 mm × approx. 490 mm × approx. 170 mm
Stile depth steps/back stay 68mm / 58mm
Standards EN 131 professional
Weight 8.3 kg
Stile depth 68 mm
Base 0,74 m × 0,49 m
Stile depth 58 mm
Platform width 300 mm
Platform length 250 mm
Number of rungs, incl. platform 3
Overall base width 0.49 m
Working height 2.8 m
Overall length 1.59 m
Platform height 0.8 m
Material Aluminium
Certification TÜV-SÜD
Load capacity max. 150 kg
Length base area 0.57 m
Width base area 0.5 m
Number of rungs / treads 3

Variants

Order number Anti splay Base Number of rungs, incl. platform Overall base width Overall length Platform height Transport dimensions Weight Working height
41636 0,74 m × 0,49 m 3 0.49 m 1.59 m 0.8 m approx. 1.590 mm × approx. 490 mm × approx. 170 mm 8.3 kg 2.8 m
41637 0,92 m × 0,52 m 4 0.52 m 1.87 m 1.06 m approx. 1.870 mm × approx. 520 mm × approx. 170 mm 9.8 kg 3.1 m
41638 Belt strap 1,09 m × 0,55 m 5 0.55 m 2.15 m 1.33 m approx. 2.150 mm × approx. 550 mm × approx. 170 mm 10.5 kg 3.35 m
41639 Belt strap 1,25 m × 0,58 m 6 0.58 m 2.43 m 1.59 m approx. 2.430 mm × approx. 580 mm × approx. 170 mm 11.5 kg 3.6 m
41640 Belt strap 1,42 m × 0,61 m 7 0.61 m 2.71 m 1.85 m approx. 2.710 mm × approx. 610 mm × approx. 170 mm 12.3 kg 3.85 m
41641 Belt strap 1,58 m × 0,64 m 8 0.64 m 2.99 m 2.12 m approx. 2.990 mm × approx. 640 mm × approx. 170 mm 12.8 kg 4.15 m
41642 Belt strap 1,9 m × 0,7 m 10 0.7 m 3.55 m 2.64 m approx. 3.550 mm × approx. 700 mm × approx. 170 mm 16.1 kg 4.65 m
