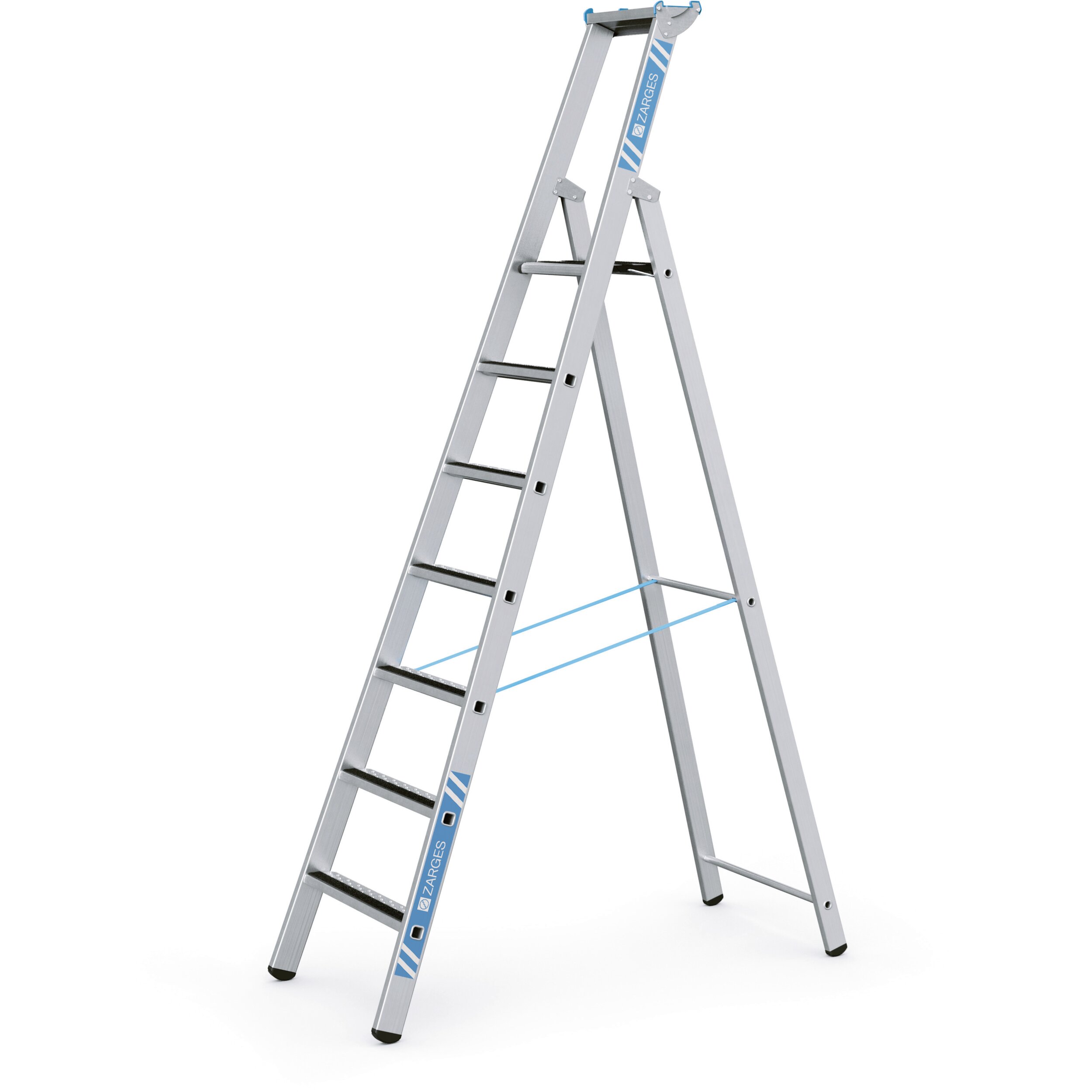

R13step S

SKU: 41640

Details

Safer ascent with the highest non-slip performance thanks to R13 treads for oily and wet environment.

  • Safer ascent with the highest non-slip performance thanks to R13 treads for oily and wet environment.
  • Large platform with R13 surface that allows personnel to stand safely and comfortably even when working for extended periods.
  • Practical tray with plenty of space for tools and small items.
  • 80 mm deep treads with R13 surface and perforations to drain fast.
  • Abrasion-resistant, anodised stiles.
  • Practical aluminium storage tray for small items and tools.

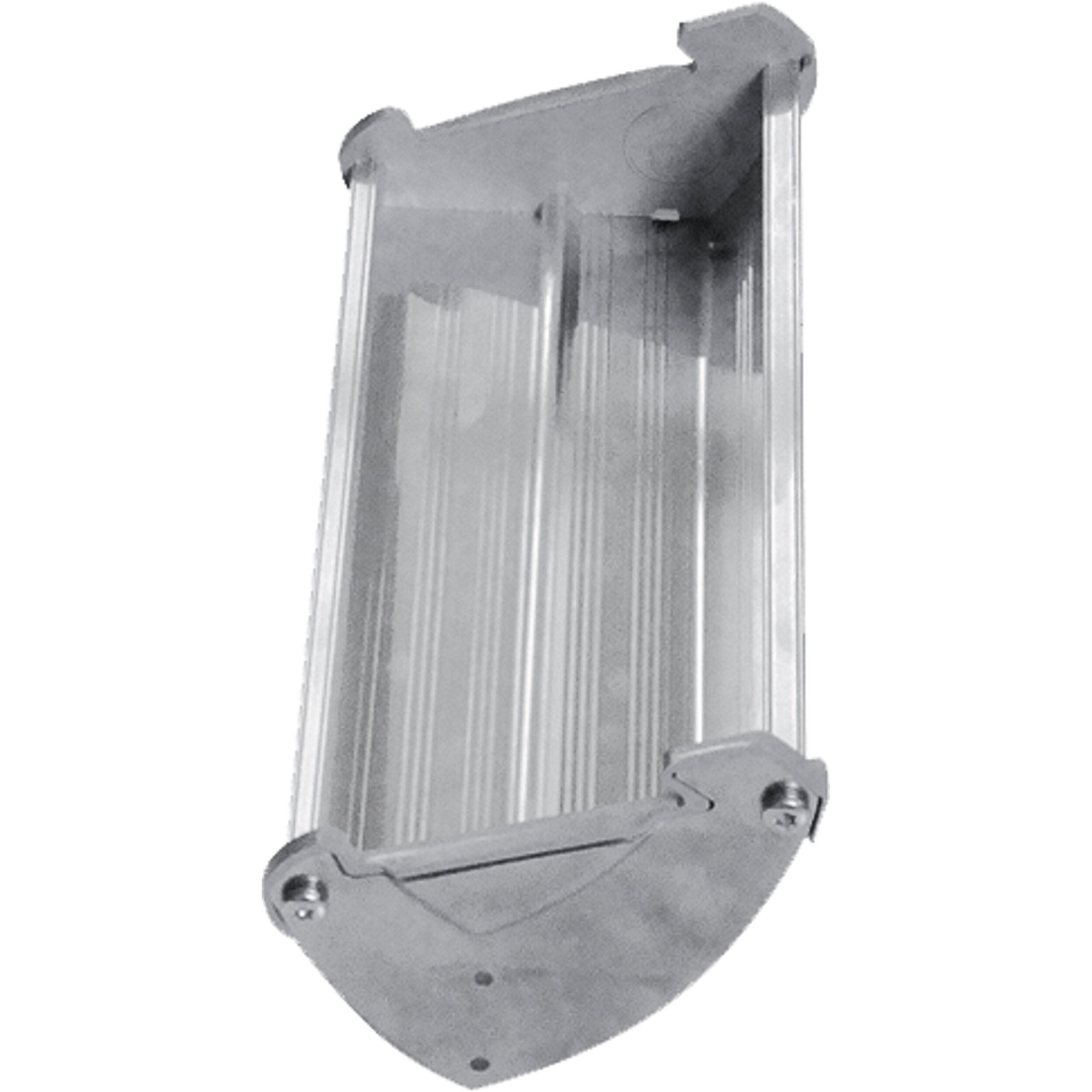

  • Platform made from extruded aluminium (300 mm × 250 mm) with R13 surface for safer and comfortable standing even when working for longer periods of time.
  • High-strength perlon belts prevent splay.
  • Maximum working heights thanks to 280mm high access.
  • Replaceable 2-component plastic end caps ensure positioning without risk of slipping and at the same time provide firm seating in the stile.

Hints and special features

  • Complies with EN 131 Professional.

More Information

More Information
Material Aluminium
Standards EN 131 professional
Warranty 10 years
Platform length 250 mm
Platform height 1.85 m
Load capacity max. 150 kg
Platform width 300 mm
Anti splay Belt strap
Base 1,34 m × 0,62 m
Coating anodised
Connection Stile-Rung flanged
Tread depth 80 mm
Transport dimensions approx. 2.710 mm × approx. 620 mm × approx. 170 mm
Stile depth steps/back stay 73mm / 58mm
Working height 3.85 m
Overall length 2.71 m
Tray Aluminium
Number of rungs, incl. platform 7
Pitch rung/tread 265 mm
Producttype Stepladder with flanged treads
Type rung/tread R13 tread
Weight 12.3 kg
Overall base width 0.62 m
Stile depth 73 mm
Stile depth 58 mm
Length base area 1.34 m
Width base area 0.62 m

Variants

Order number Anti splay Base Number of rungs, incl. platform Overall base width Overall length Platform height Transport dimensions Weight Working height
41636 0,57 m × 0,5 m 3 0.5 m 1.59 m 0.8 m approx. 1.590 mm × approx. 500 mm × approx. 170 mm 8.3 kg 2.8 m
41637 0,76 m × 0,53 m 4 0.53 m 1.87 m 1.06 m approx. 1.870 mm × approx. 530 mm × approx. 170 mm 9.8 kg 3.1 m
41638 Belt strap 0,96 m × 0,56 m 5 0.56 m 2.15 m 1.33 m approx. 2.150 mm × approx. 560 mm × approx. 170 mm 10.5 kg 3.35 m
41639 Belt strap 1,15 m × 0,59 m 6 0.59 m 2.43 m 1.59 m approx. 2.430 mm × approx. 590 mm × approx. 170 mm 11.5 kg 3.6 m
41640 Belt strap 1,34 m × 0,62 m 7 0.62 m 2.71 m 1.85 m approx. 2.710 mm × approx. 620 mm × approx. 170 mm 12.3 kg 3.85 m
41641 Belt strap 1,53 m × 0,65 m 8 0.65 m 2.99 m 2.12 m approx. 2.990 mm × approx. 650 mm × approx. 170 mm 12.8 kg 4.15 m
41642 Belt strap 1,91 m × 0,71 m 10 0.71 m 3.55 m 2.64 m approx. 3.550 mm × approx. 710 mm × approx. 170 mm 16.1 kg 4.65 m
