Saferstep B

Contact ZARGES Add to Compare Download Product Datasheet (PDF) Product Documents Spare parts and accessories

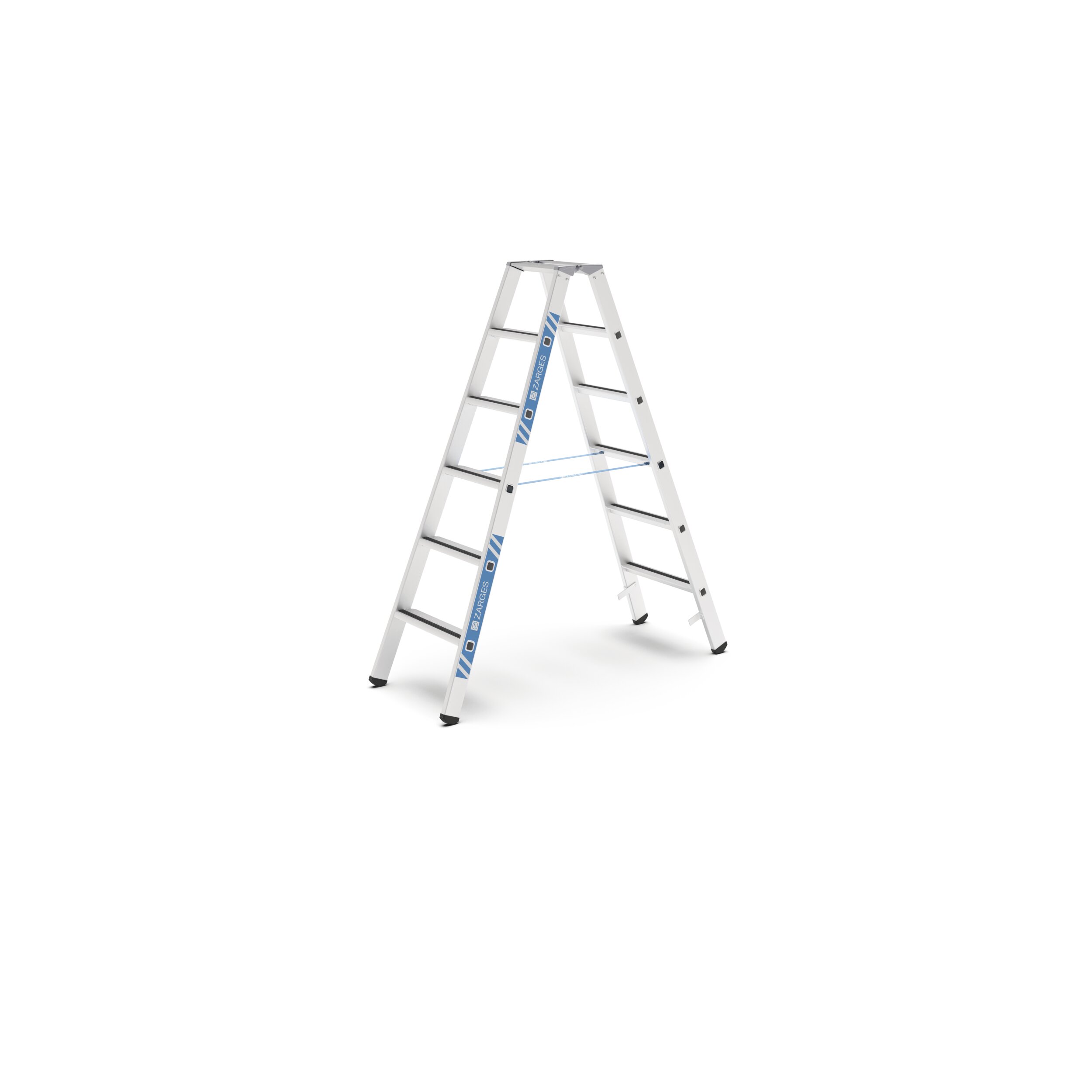

main product photo

Details

Safe climbing on both sides, even to great heights on treads featuring Safer-Step technology.

  • Safe climbing on both sides, even to great heights on treads featuring Safer-Step technology.
  • Tread with ZARGES Safer Step Technology, 80 mm deep.
  • Clean hands thanks to wear-resistant anodised stiles.
  • Sturdy hinges made of die-cast aluminum.
  • High-strength polyester webbing with a sewn-in attachment loop – durable and resistant to wear and tear.
  • The 280 mm-high step provides the greatest working height in its class.
  • Replaceable 2-component plastic end caps ensure positioning without risk of slipping and at the same time provide firm seating in the stile.
  • Robust design: flanged step-rail connection with extruded aluminum profiles.

Hints and special features

  • Complies with EN 131 Professional.

More Information

More Information
Producttype Stepladder with flanged treads
Anti splay Belt strap
Coating anodised
Connection Stile-Rung flanged
Type rung/tread Safer Step
Pitch rung/tread 265 mm
Tread depth 80 mm
Warranty 10 years
Standards EN 131 professional
Stile depth 68 mm
Certification TÜV-SÜD
Load capacity max. 150 kg
Material Aluminium

Variants

Order number Base Number of treads Overall base width Overall length Transport dimensions Vertical ladder height Weight Working height
41303 0,8 m × 0,44 m 2 × 3 0.44 m 0.88 m approx. 880 mm × 445 mm × approx. 215 mm 0.8 m 4.6 kg 2.3 m
41304 0,99 m × 0,47 m 2 × 4 0.47 m 1.16 m approx. 1.160 mm × approx. 470 mm × approx. 215 mm 1.06 m 6.1 kg 2.55 m
41305 1,18 m × 0,5 m 2 × 5 0.5 m 1.44 m approx. 1.440 mm × approx. 500 mm × approx. 215 mm 1.32 m 7.6 kg 2.8 m
41306 1,38 m × 0,53 m 2 × 6 0.53 m 1.72 m approx. 1.720 mm × approx. 525 mm × approx. 215 mm 1.58 m 9.3 kg 3.05 m
41307 1,58 m × 0,56 m 2 × 7 0.56 m 2 m approx. 2.000 mm × approx. 560 mm × approx. 215 mm 1.84 m 10.9 kg 3.3 m
41308 1,77 m × 0,58 m 2 × 8 0.58 m 2.27 m 2.275 mm × approx. 580 mm × approx. 215 mm 2.1 m 12.7 kg 3.6 m
41310 2,16 m × 0,64 m 2 × 10 0.64 m 2.83 m 2.835 mm × approx. 640 mm × approx. 215 mm 2.63 m 16.4 kg 4.15 m
41312 2,55 m × 0,7 m 2 × 12 0.7 m 3.39 m 3.390 mm × approx. 700 mm × approx. 215 mm 3.16 m 20.3 kg 4.65 m
41314 2,95 m × 0,76 m 2 × 14 0.76 m 3.95 m 3.950 mm × approx. 765 mm × approx. 215 mm 3.68 m 24.4 kg 5.2 m
41316 3,34 m × 0,82 m 2 × 16 0.82 m 4.51 m 4.510 mm × approx. 820 mm × approx. 215 mm 4.21 m 28.8 kg 5.7 m
